6 color gearless ci Flexo printing press machine for plastic films
6 color gearless ci Flexo printing press machine for plastic films

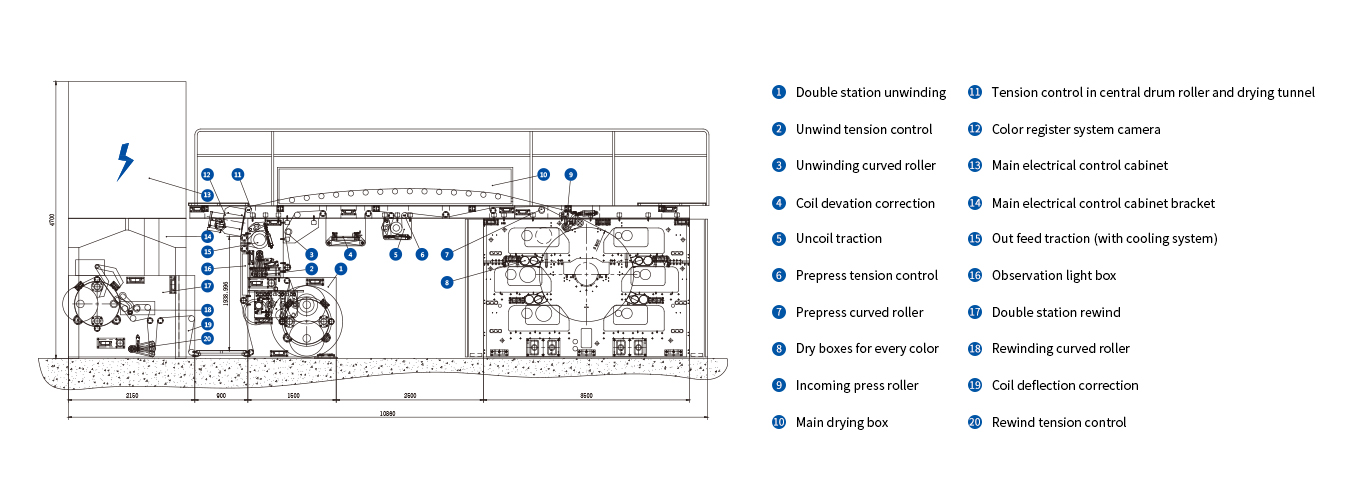

Material Feeding Diagram
technical specifications
| Model | CHCI6-600F-S | CHCI6-800F-S | CHCI6-1000F-S | CHCI6-1200F-S |
| Max. Web Width | 650mm | 850mm | 1050mm | 1250mm |
| Max. Printing Width | 600mm | 800mm | 1000mm | 1200mm |
| Max. Machine Speed | 500m/min | |||
| Max. Printing Speed | 450m/min | |||
| Max. Unwind/Rewind Dia. | Φ800mm/Φ1200mm | |||
| Drive Type | Gearless full servo drive | |||
| Photopolymer Plate | To be specified | |||
| Ink | Water base ink or solvent ink | |||
| Printing Length (repeat) | 400mm-800mm | |||
| Range Of Substrates | LDPE, LLDPE, HDPE, BOPP, CPP, PET, Nylon, Breathable Film | |||
| Electrical Supply | Voltage 380V. 50 HZ.3PH or to be specified | |||
Machine Features
1.With a tough, durable mechanical structure and precision servo drive system, this gearless CI flexo printing press tops out at a max mechanical speed of 500m/min. It’s not just about high throughput — even during non-stop high-speed runs, it stays rock-solid stable. Perfect for knocking out large-volume, urgent orders without breaking a sweat.
2.Every printing unit is directly driven by servo motors, which gets rid of the limitations that mechanical gears usually bring. In actual production, plate changes become a lot simpler—setup time is cut down right from the start, and you can make registration adjustments with ultra-high precision.
3.Across the entire press, heavy solid rollers are replaced with lightweight sleeved impression cylinders and anilox rolls. This clever design gives the fully servo CI flexo press unmatched flexibility to adapt to all sorts of production demands.
4.Engineered specifically built for flexible plastic films, and when paired with a precision tension control system, it can handle a wide range of film types. It greatly reduces stretching and deformation, making sure printing performance stays stable no matter which substrate you’re working with.
5.This gearless flexo printing machine is equipped with advanced closed doctor blade systems and eco-ink circulation. The outcome is substantially reduced ink waste and solvent emissions, aligning with green production standards while also cutting down on operational expenses.

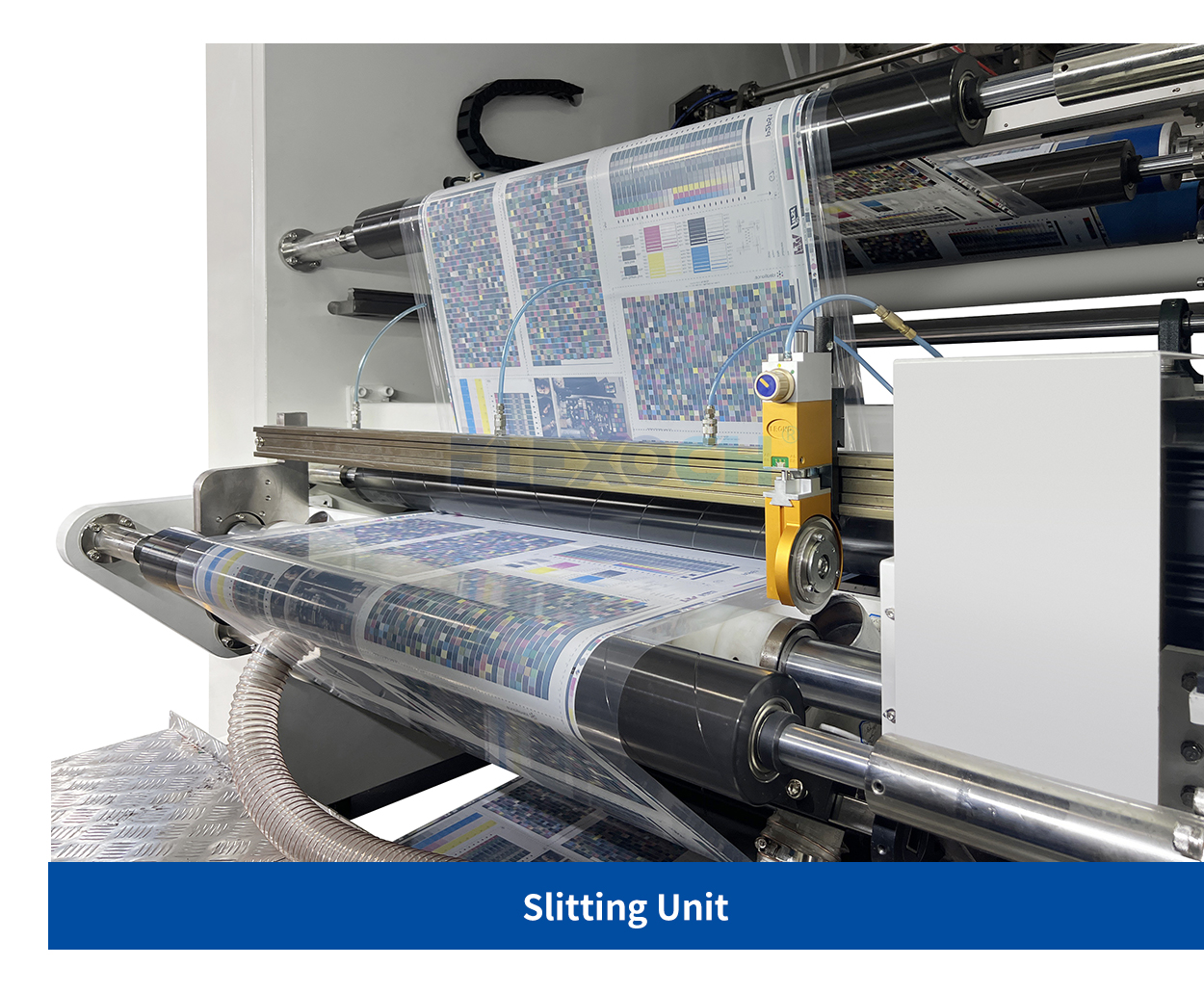

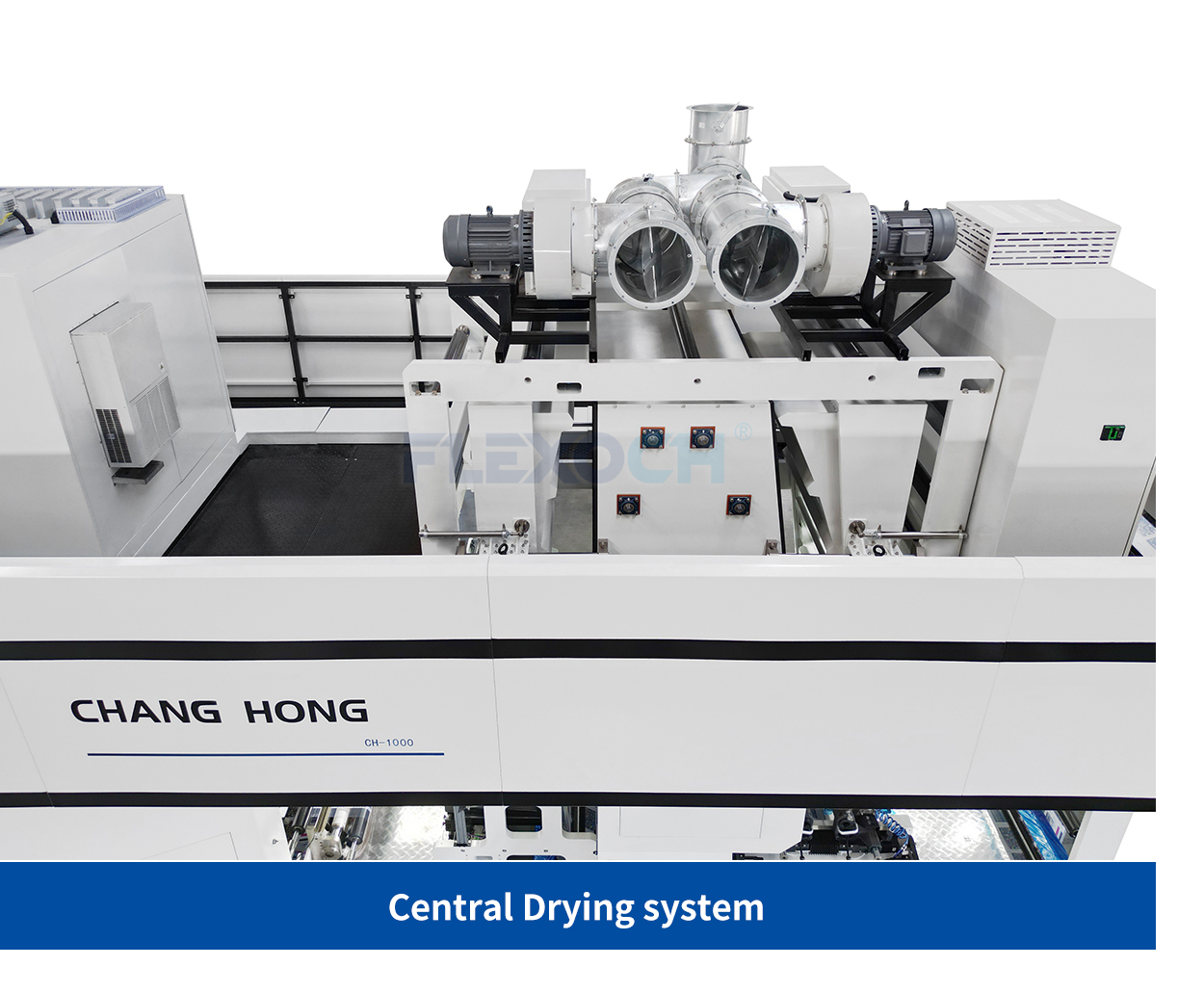

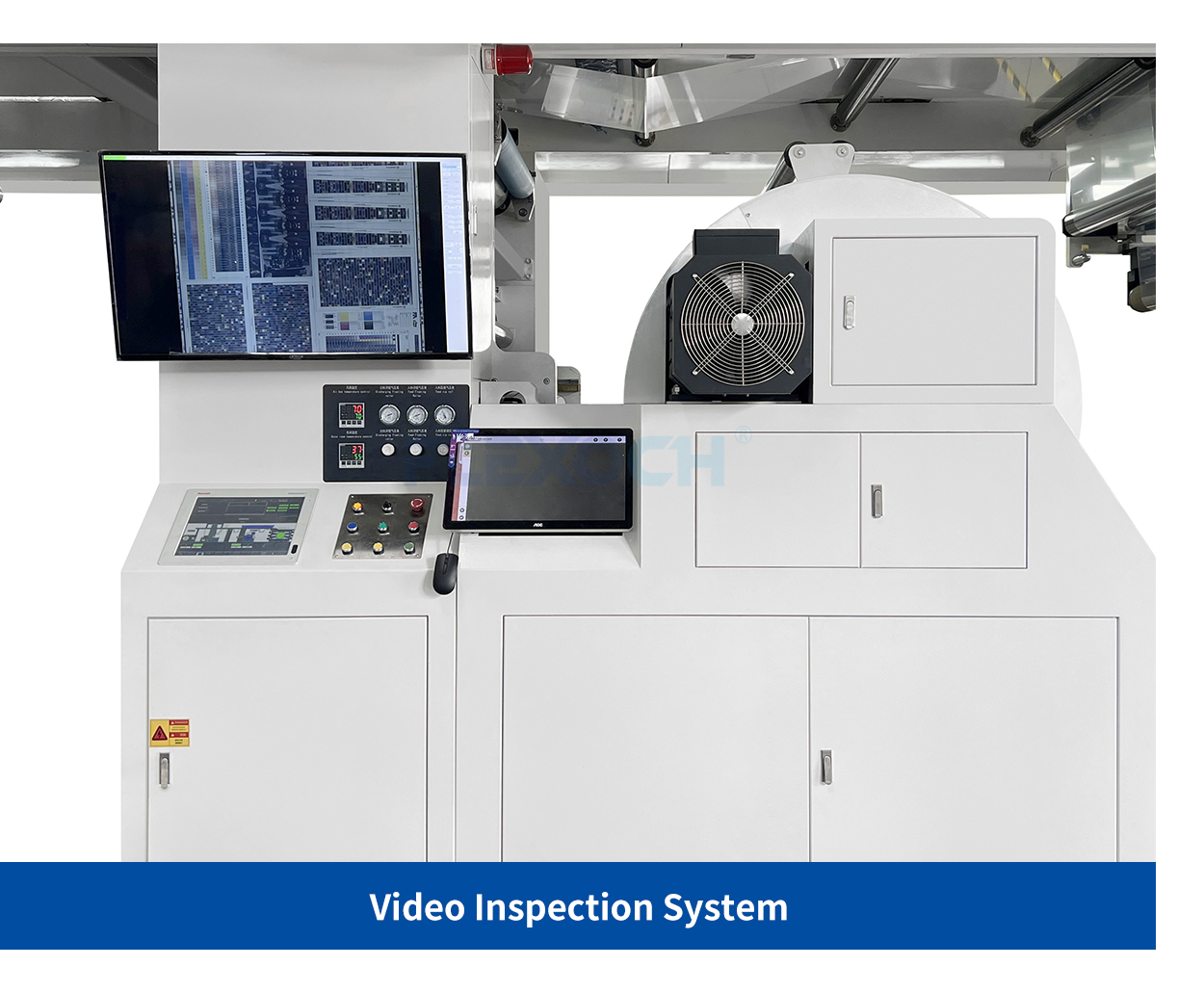

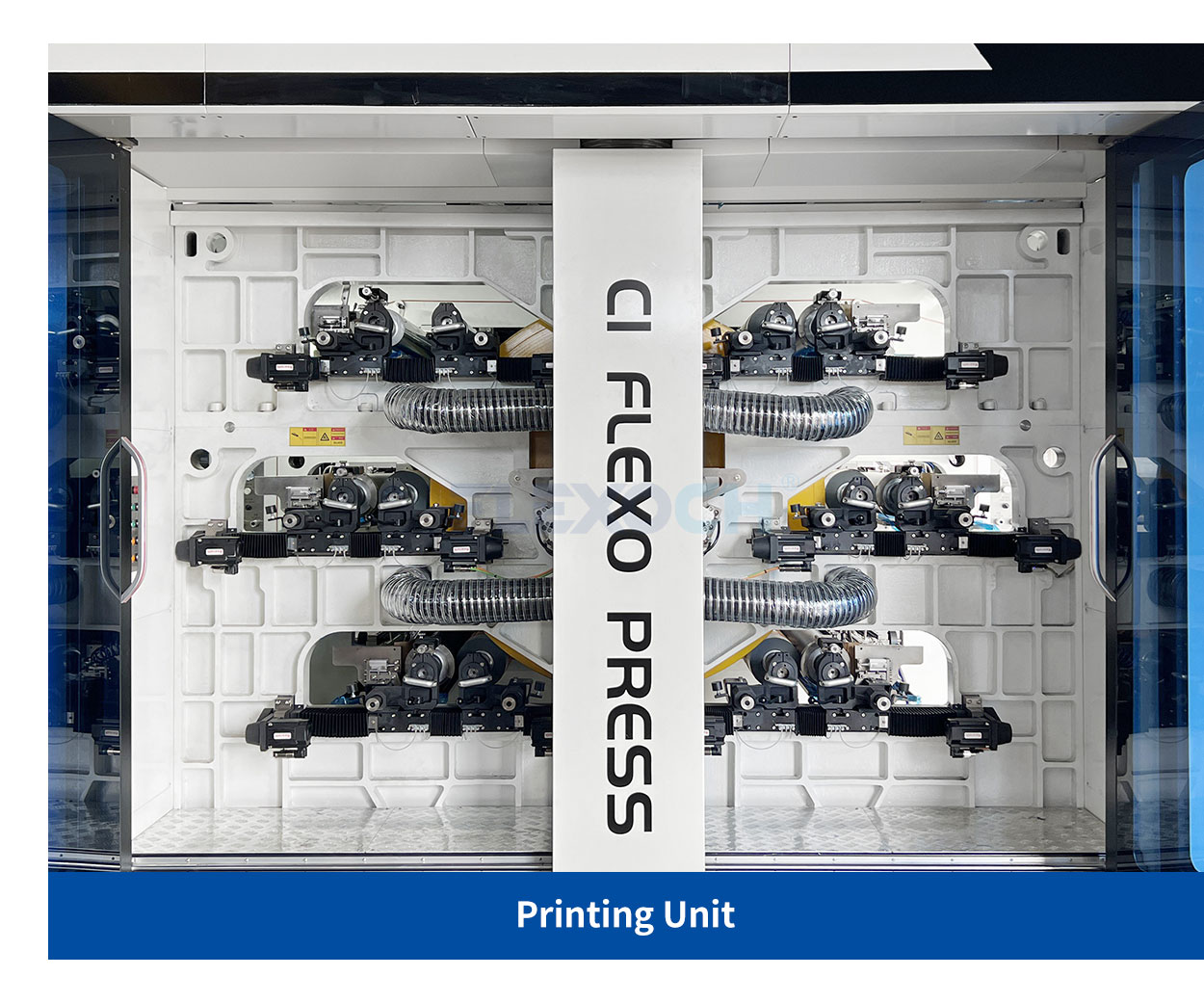

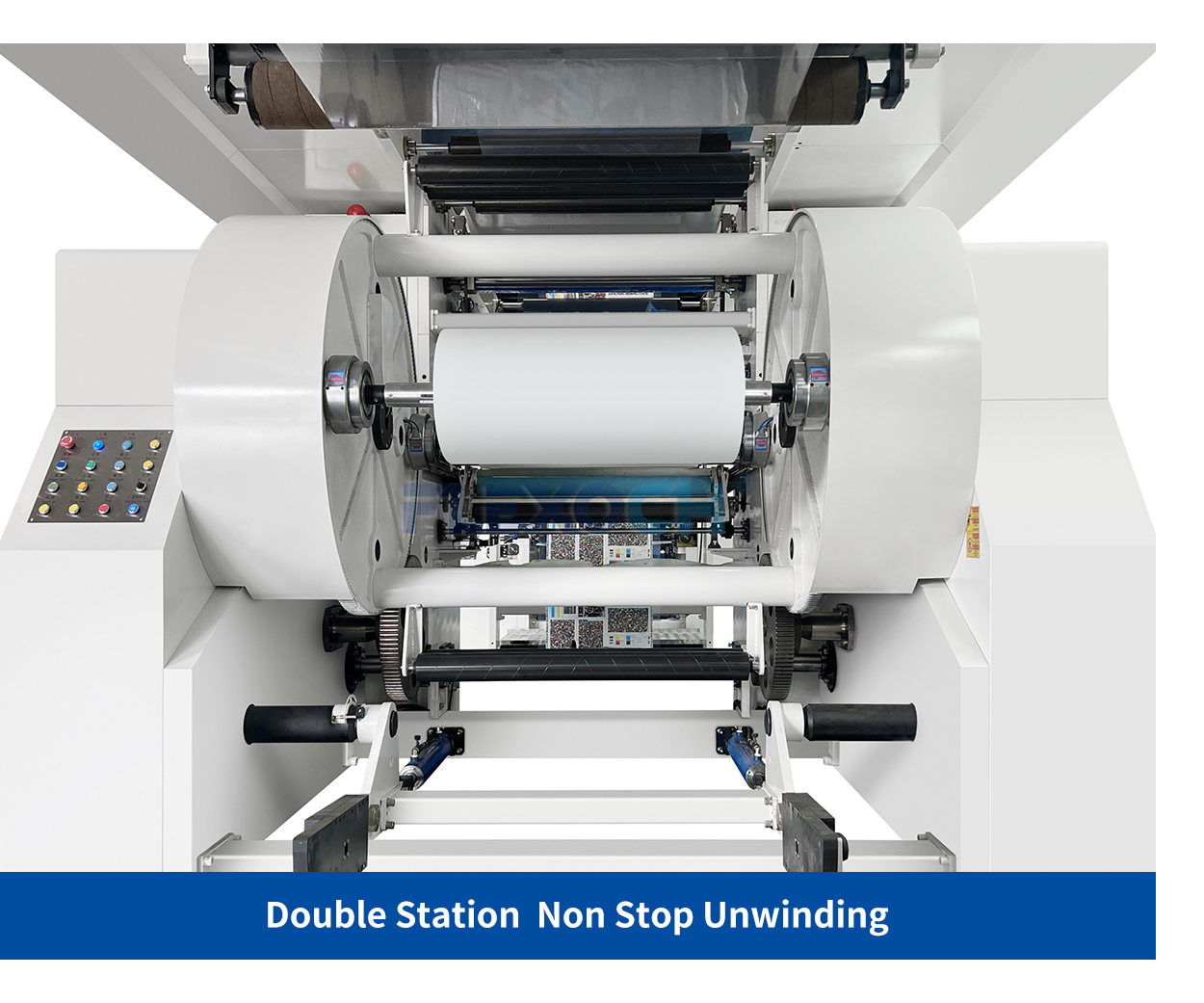

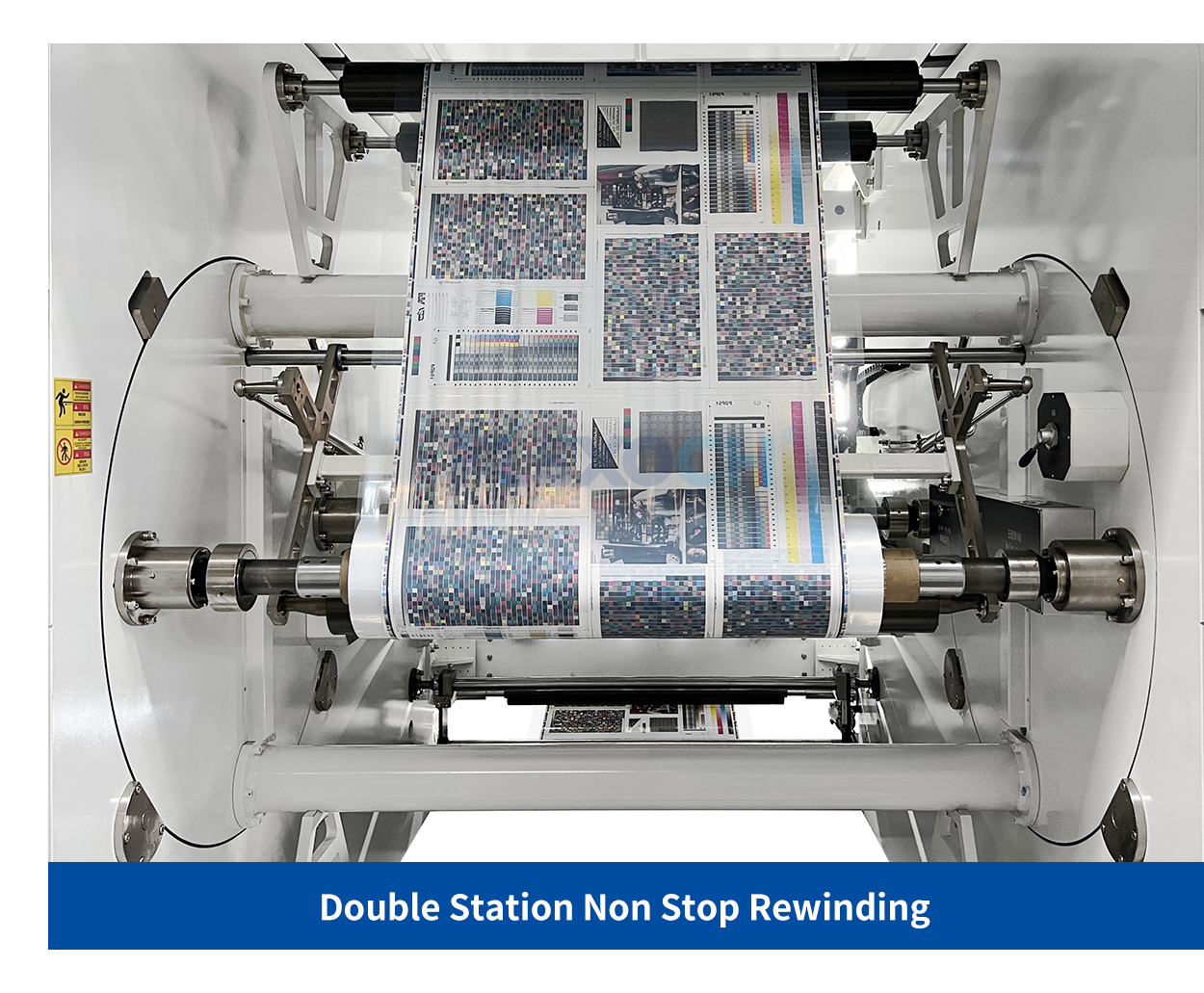

Details Dispaly
Printing Samples
A 6 color gearless CI flexo printing press designed specifically for various plastic films. It delivers stable, high-definition printing on materials from as thin as 10 microns to as thick as 150 microns — including PE, PET, BOPP, and CPP.
The sample clearly shows its exceptional registration accuracy on ultra-thin materials and rich, vivid color performance on thicker ones. How well it controls material stretching and deformation, plus how sharply it reproduces printing details, both highlight its strong technical foundation and broad process adaptability.
Packaging And Delivery
Every CI flexo printing machine gets comprehensive, professional protective packaging before leaving the factory. We use heavy-duty custom wooden crates and waterproof cushioning materials to add extra layers of safeguard for core components.
Throughout the entire delivery process, we partner with a reliable global logistics network and offer real-time tracking. We ensure delivery is safe, on time, and totally transparent — so your equipment arrives in perfect condition, setting the stage for smooth commissioning and production later on.
Packaging And Delivery
Q1: What’s the automation level of this fully servo-driven gearless flexo printing machine? Is it hard to operate?
A1: It has a really high automation level, with built-in automatic tension control and register correction. The interface is super intuitive — you’ll get the hang of it fast after a short training, so you won’t need to rely too much on manual work
Q2: What’s the flexo machine’s maximum production speed and available configurations?
A2: It tops out at 500 meters per minute, with printing widths ranging from 600mm to 1600mm. We can also customize it to fit your high-volume production needs.
Q3: What specific perks does the gearless transmission technology offer?
A3: It runs nice and quiet, and maintenance is straightforward. Even when cranking at extreme speeds, it stays locked into high-precision registration — so your printing quality stays consistent and reliable.
Q4: How does the equipment support efficient production and fast order changeovers?
A4: The dual-station unwinding/rewinding system teams up with the side register system, letting you do non-stop roll changes and quick plate swaps. That cuts down on downtime a lot, making multi-batch orders much more efficient to handle.
Q5: How do you guarantee after-sales service and technical support?
A5: We offer remote diagnosis, video training, and on-site installation services overseas. Plus, core components are backed by a long-term warranty — so you can keep production running smoothly without any unexpected headaches.
