Our high-speed dual-station gearless flexographic printing machines is an advanced equipment specifically designed for high-efficiency and high-precision printing needs. It adopts gearless full servo drive technology, supports roll-to-roll continuous printing, and is equipped with 6 color printing units to meet diverse color and complex pattern printing requirements. The dual-station design enables non-stop material changing, significantly improving production efficiency. It is an ideal choice for industries such as labeling and packaging.


  • MODEL: CHCI-F-Z Series
  • Machine Speed: 500m/min
  • Number Of Printing Decks: 4/6/8/10
  • Drive Method: Gearless full servo drive
  • Heat Source: Gas, Steam, Hot oil, Electrical heating
  • Electrical Supply: Voltage 380V. 50 HZ.3PH or to be specified
  • Main Processed Materials: Films; Paper; Non-Woven, Aluminium foil,paper cup
  • Product Detail

    Product Tags

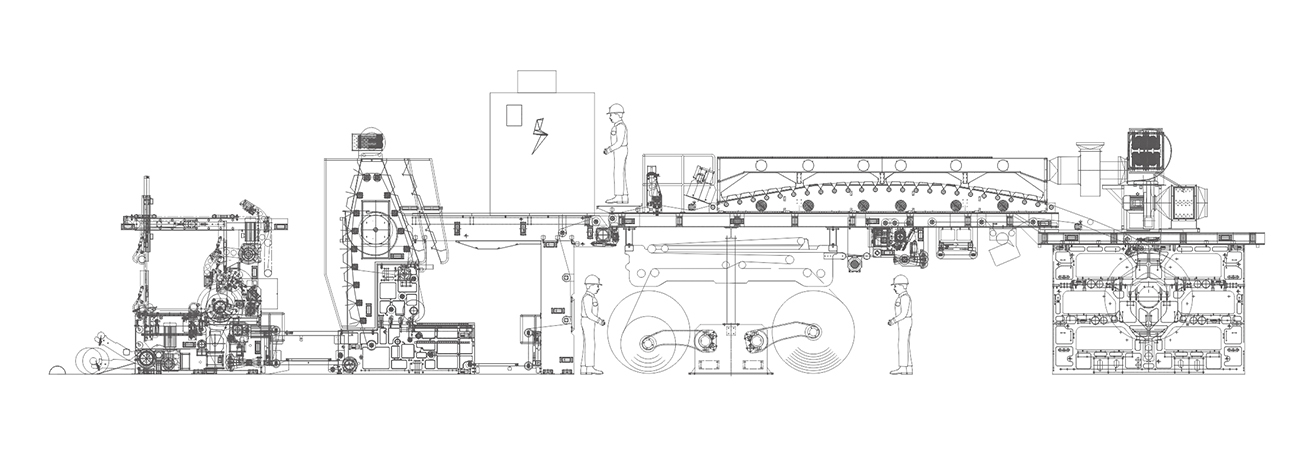

    Material Feeding Diagram

    Material Feeding Diagram

    technical specifications

    Model

    CHCI6-600F-Z

    CHCI6-800F-Z

    CHCI6-1000F-Z

    CHCI6-1200F-Z

    Max. Web Width

    650mm

    850mm

    1050mm

    1250mm

    Max. Printing Width

    600mm

    800mm

    1000mm

    1200mm

    Max. Machine Speed

    500m/min

    Max. Printing Speed

    450m/min

    Max. Unwind/Rewind Dia.

    Φ800mm/Φ1200mm/Φ1500mm

    Drive Type

    Gearless full servo drive

    Photopolymer Plate

    To be specified

    Ink

    Water base ink or solvent ink

    Printing Length (repeat)

    400mm-800mm

    Range Of Substrates

    non woven、paper、paper cup

    Electrical Supply

    Voltage 380V. 50 HZ.3PH or to be specified

    Video Introduction

    Machine Features

    ● Gearless Drive Technology Delivers Revolutionary Stability                                                                                                                                                                                     Our gearless flexographic printing machines utilizing a gearless servo drive system, it fundamentally eliminates the precision degradation inherent in traditional gear transmissions. This ensures the equipment maintains exceptional printing accuracy long-term, guaranteeing sharp patterns and precise color registration.

    ● Smart Dual-Station System Enables Truly Uninterrupted Production
    The innovative dual-station design, combined with an intelligent auto-switching system in our flexographic printing machines, completely solves the downtime issue during material changes in traditional printers. The system automatically completes roll changes, ensuring continuous production flow – ideal for high-volume order efficiency. Intelligent tension control guarantees a smooth transition during roll changes, maintaining perfect print quality for every meter of material.

    ● Multi-Color Printing System Delivers Stunning Color Performance
    Independent high-precision printing units in these gearless flexographic press allow flexible configuration of spot color combinations to meet the most demanding color requirements. An advanced registration system ensures precise pattern alignment, perfectly rendering even complex gradients and fine lines. The short ink path design enables faster color changes, while intelligent color management ensures high batch-to-batch color consistency.

    ● Green & Energy-Efficient Design Reduces Operational Costs
    Flexo printing machines feature efficient energy-saving designs that significantly reduce power consumption. An innovative heat recovery system enhances energy utilization. Eco-friendly curing units reduce emissions and are compatible with sustainable materials like water-based or solvent-based inks. These designs not only lower production costs but also align with modern manufacturing's sustainable development principles.

    Details Dispaly

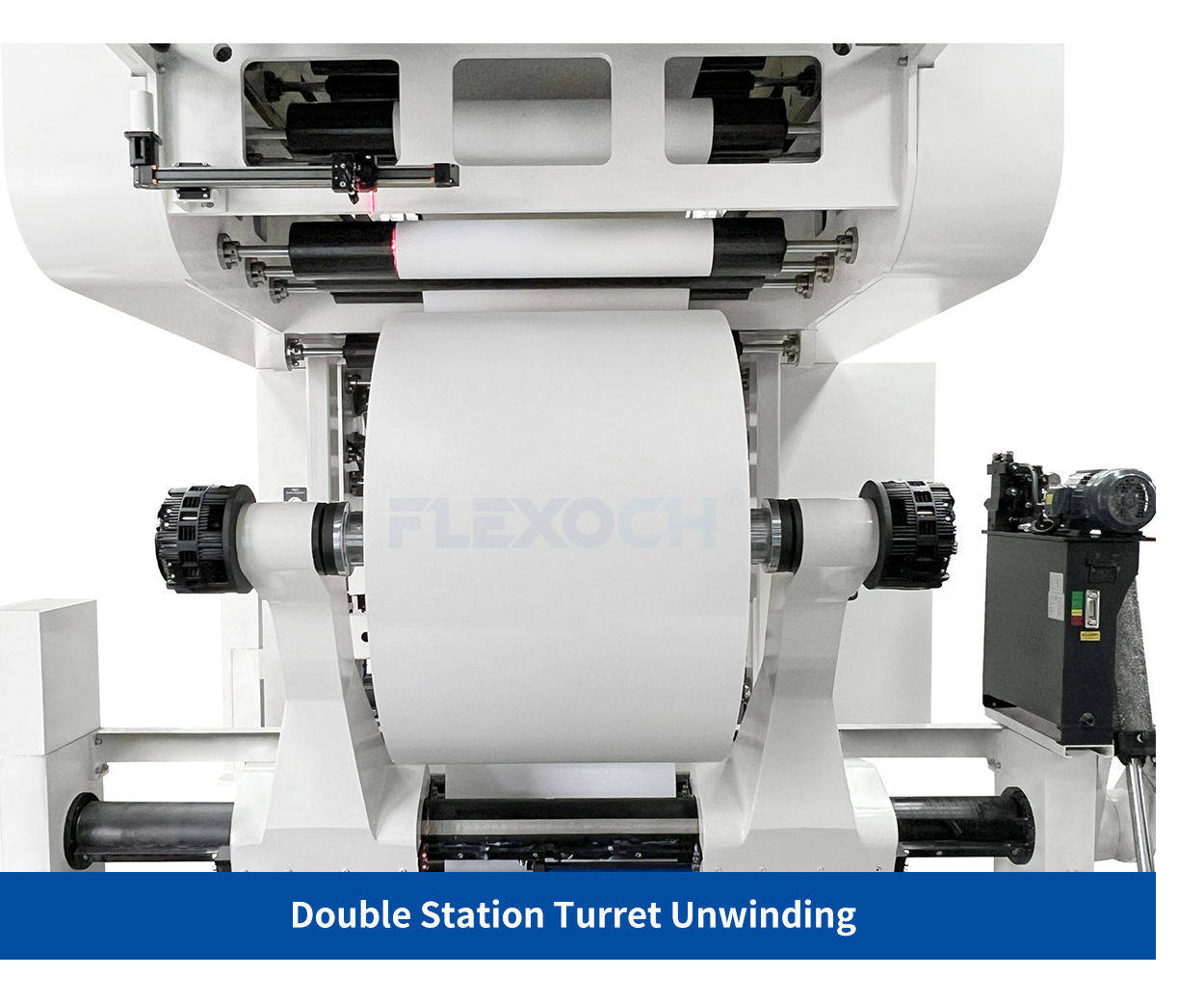

    Double Station Turret Unwinding

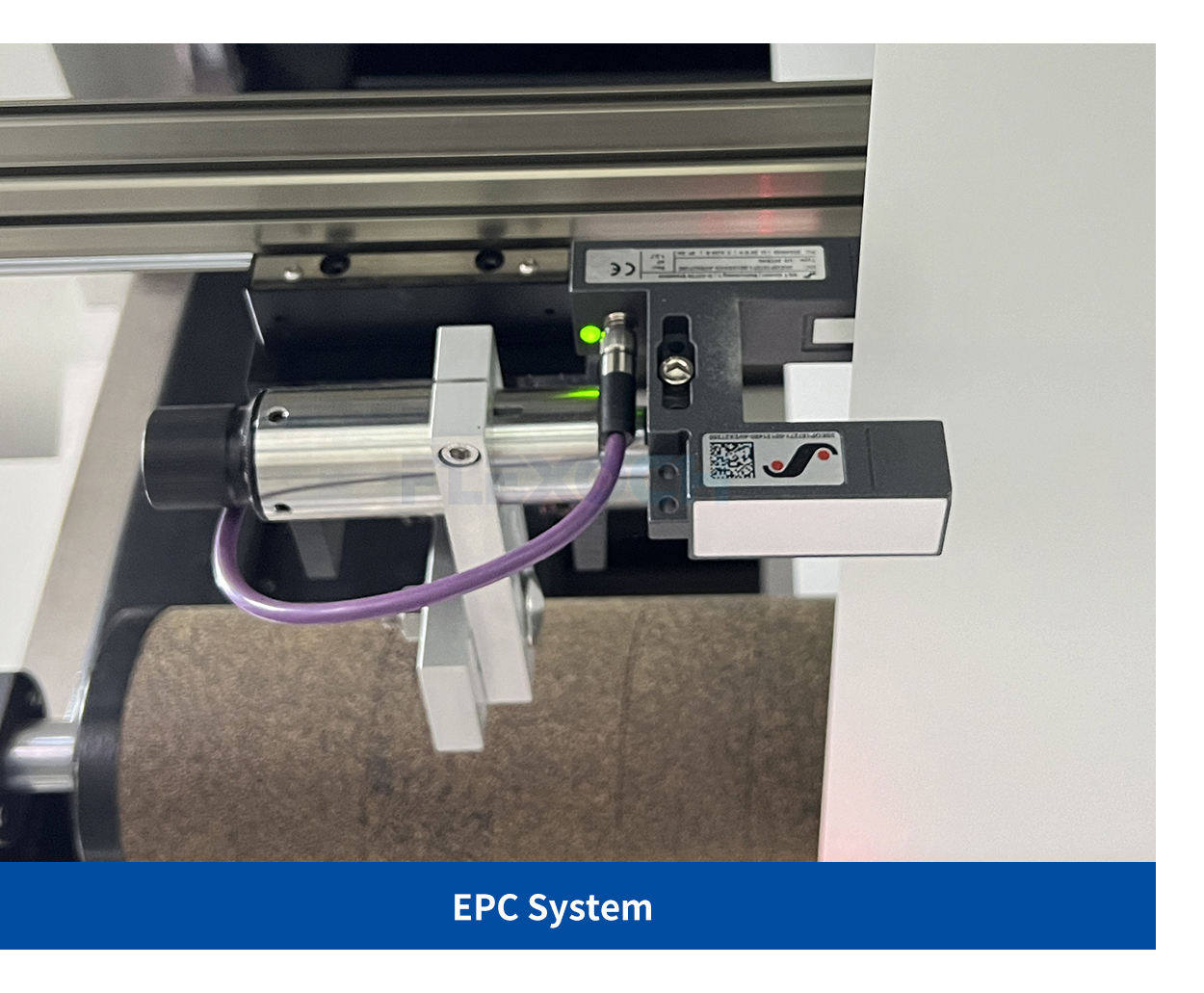

    EPC System

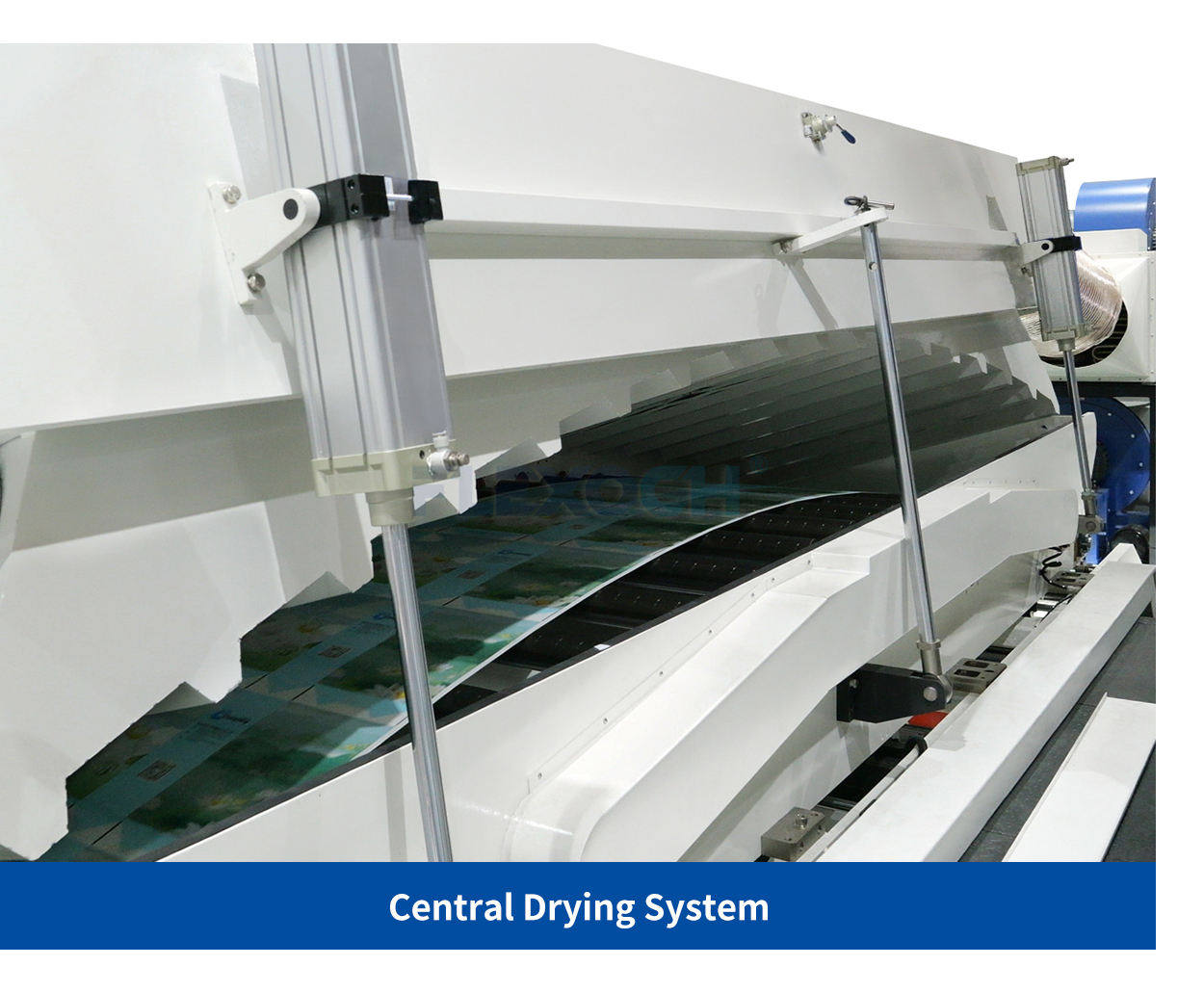

    Central Drying System

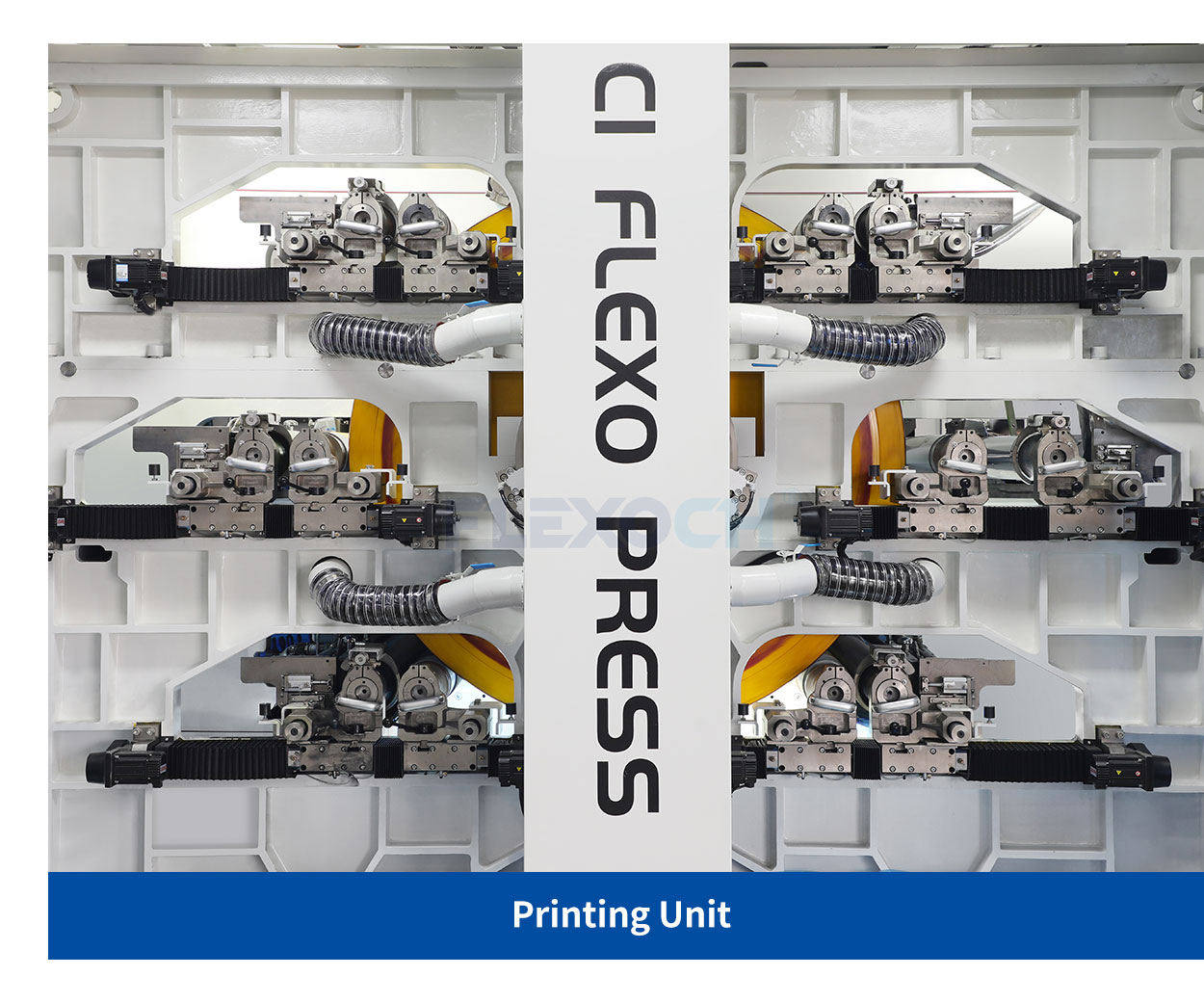

    Printing Unit

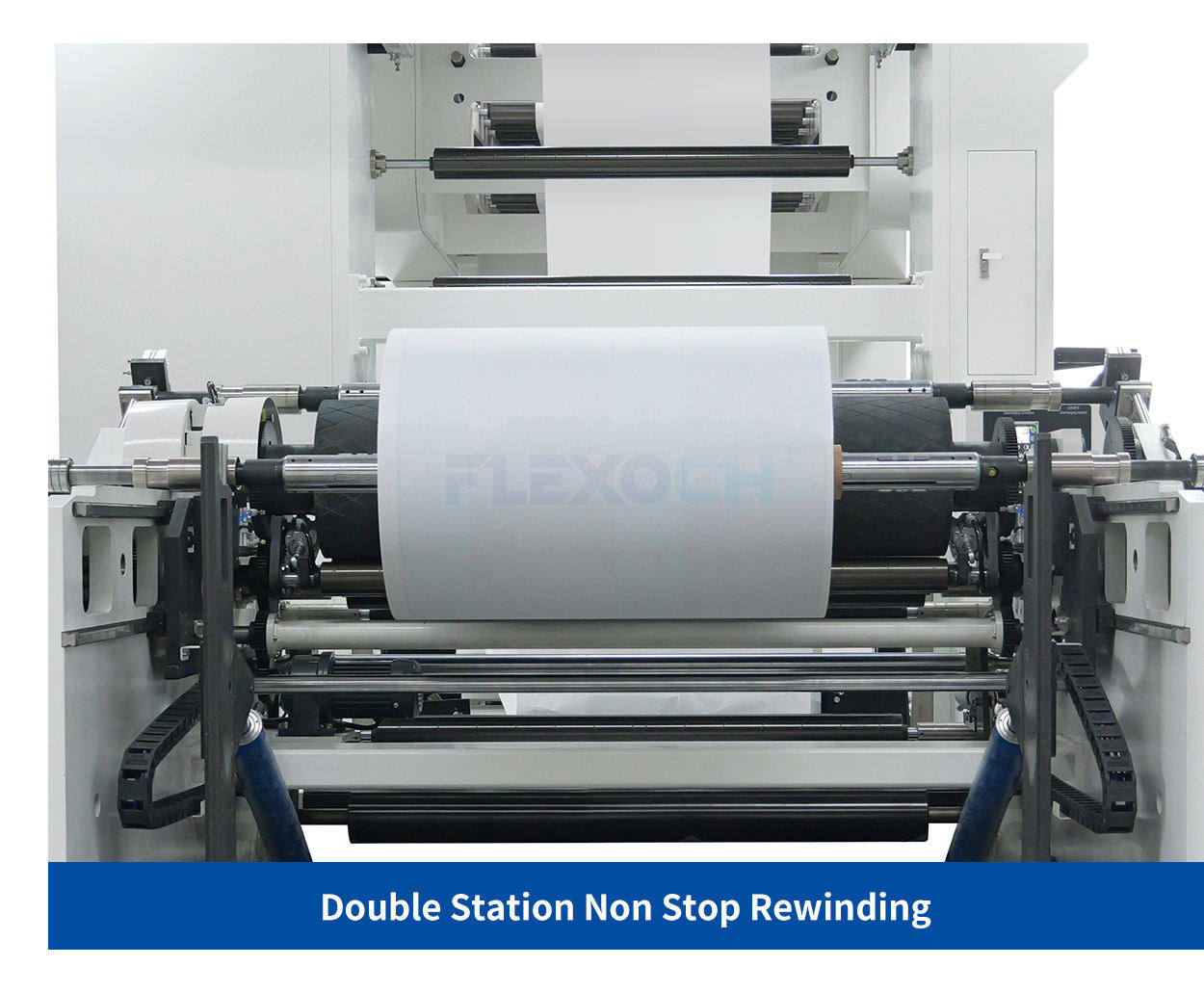

    Double Station Non Stop Rewinding

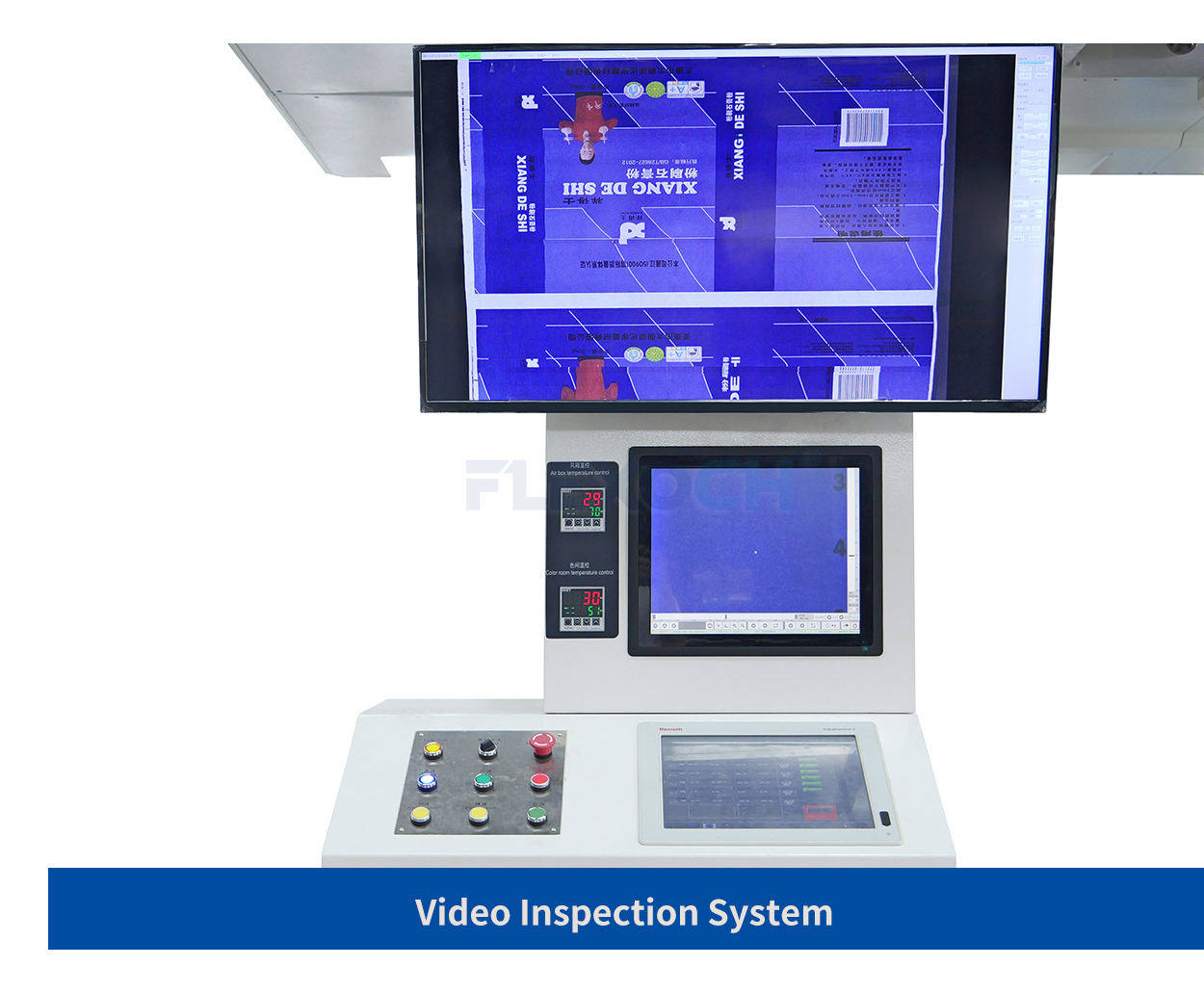

    Video Inspection System

    Printing Samples

    Paper Cup
    Kraft Paper Bag
    Disposable Diaper
    Hamburger Box
    Paper Bowl
    Non-woven Bag
