6 COLOR SERVO WIDE WEB STACK TYPE FLEXOGRAPHIC PRINTING PRESS MACHINE

This 6 color servo stack type flexographic printing press integrates high efficiency, precision, and stability. Its wide printing format significantly enhances production capacity, effortlessly meeting large-scale order demands. It is also compatible with various roll materials, offering an extremely broad application range, making it perfectly suited for color printing needs in fields such as food packaging and plastic films.

Model: CH-S-S Series

Machine Speed: 200m/min

Number of Printing Decks: 4/6/8/10

Drive Method: Servo drive

Heat Source: Gas, Steam, Hot oil, Electrical heating

Electrical Supply: Voltage 380V. 50 HZ.3PH or to be specified

Main Processed Materials: Films, Paper, Non-Woven, Aluminium foil,paper cup

Send email to us Download as PDF

Product Detail

Product Tags

Technical Specifications

Model	CH6-600S-S	CH6-800S-S	CH6-1000S-S	CH6-1200S-S
Max. Web Width	650mm	850mm	1050mm	1250mm
Max. Printing Width	600mm	800mm	1000mm	1200mm
Max. Machine Speed	200m/min
Max. Printing Speed	150m/min
Max. Unwind/Rewind Dia.	Φ800mm
Drive Type	Servo drive
Photopolymer Plate	To be specified
Ink	Water base ink or solvent ink
Printing Length (repeat)	350mm-1000mm
Range Of Substrates	LDPE, LLDPE, HDPE, BOPP, CPP, OPP,PET, Nylon,
Electrical Supply	Voltage 380V. 50 HZ.3PH or to be specified

Video Introduction

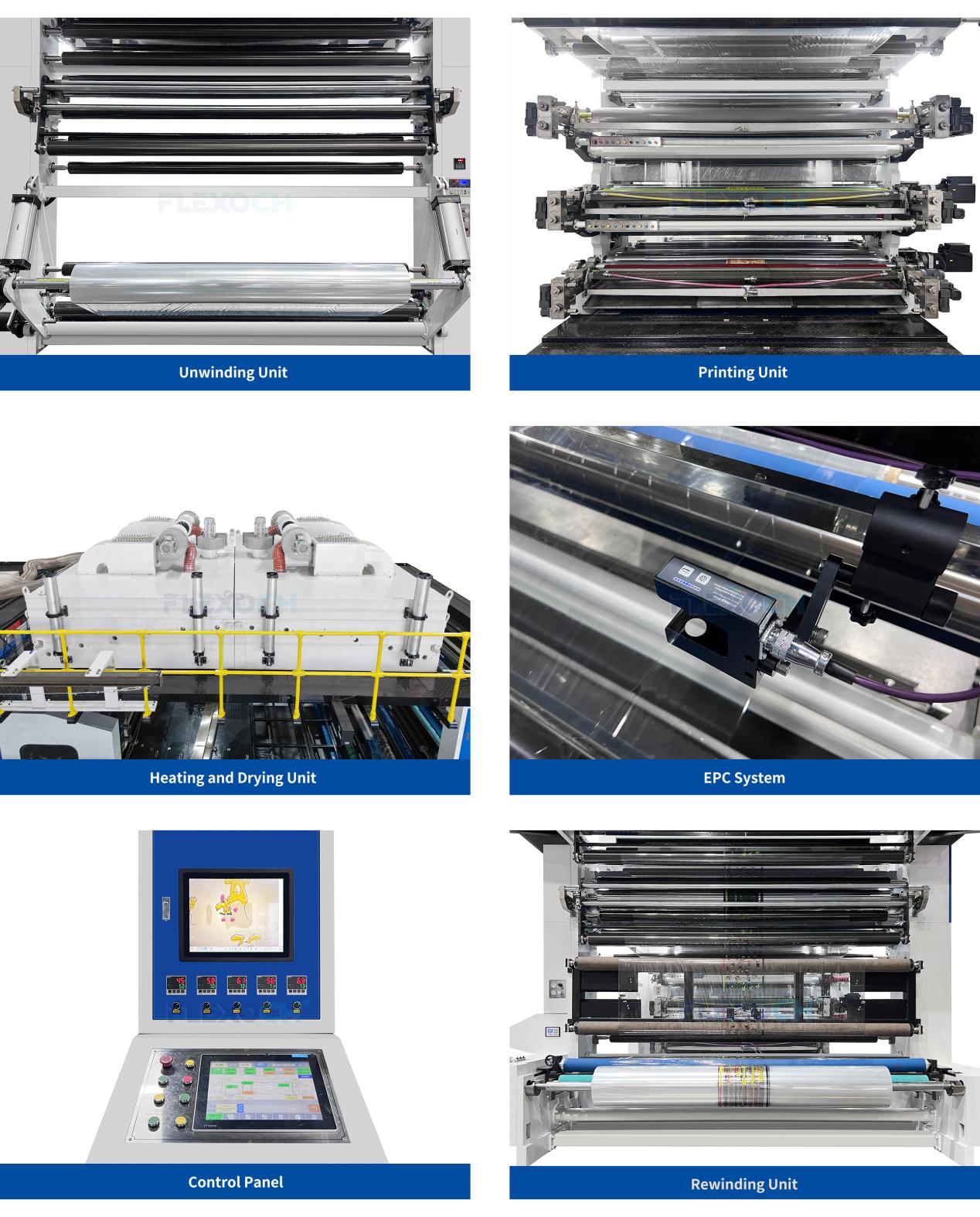

Machine Features

1.Precision and Stability, Outstanding Core Performance

This stack type flexographic printing press utilizes a servo drive system. Each color group is driven by an independent servo motor. Synchronously controlled via digital commands, this eliminates the backlash error and inertial interference associated with traditional mechanical gear drives, ensuring consistent print quality, precise overprinting, and sharp dots.

2.Intelligent Efficiency and Superior Automation

The servo stack type flexographic printing press is equipped with an intelligent automatic feeding system that enables a fully automated process from material loading, threading, to splicing. It supports seamless handling of large rolls and achieves automatic roll change and splicing without stopping operation, ensuring continuous production for long-running and large-volume orders.

3.Efficient Drying, Dramatically Improving Productivity

The innovative drying system is key to boosting productivity. This 6-color stack type flexographic printing machine utilizes a multi-stage, highly efficient drying design, enabling thorough drying of wide-format, thick-ink-covered prints in a very short time.

4.Wide Application and Significant Economies of Scale

The wide-format design directly brings about a significant increase in production capacity. The larger printing width means more products can be produced in a single pass. Furthermore, the wide format provides the equipment with greater printing flexibility, easily meeting the printing needs of a variety of wide-format products and expanding the company’s business capabilities.
