What Is a Central Impression Flexo Printing Machine?
A central impression flexo printing machine is designed for high-quality multi-colour printing on flexible packaging materials.

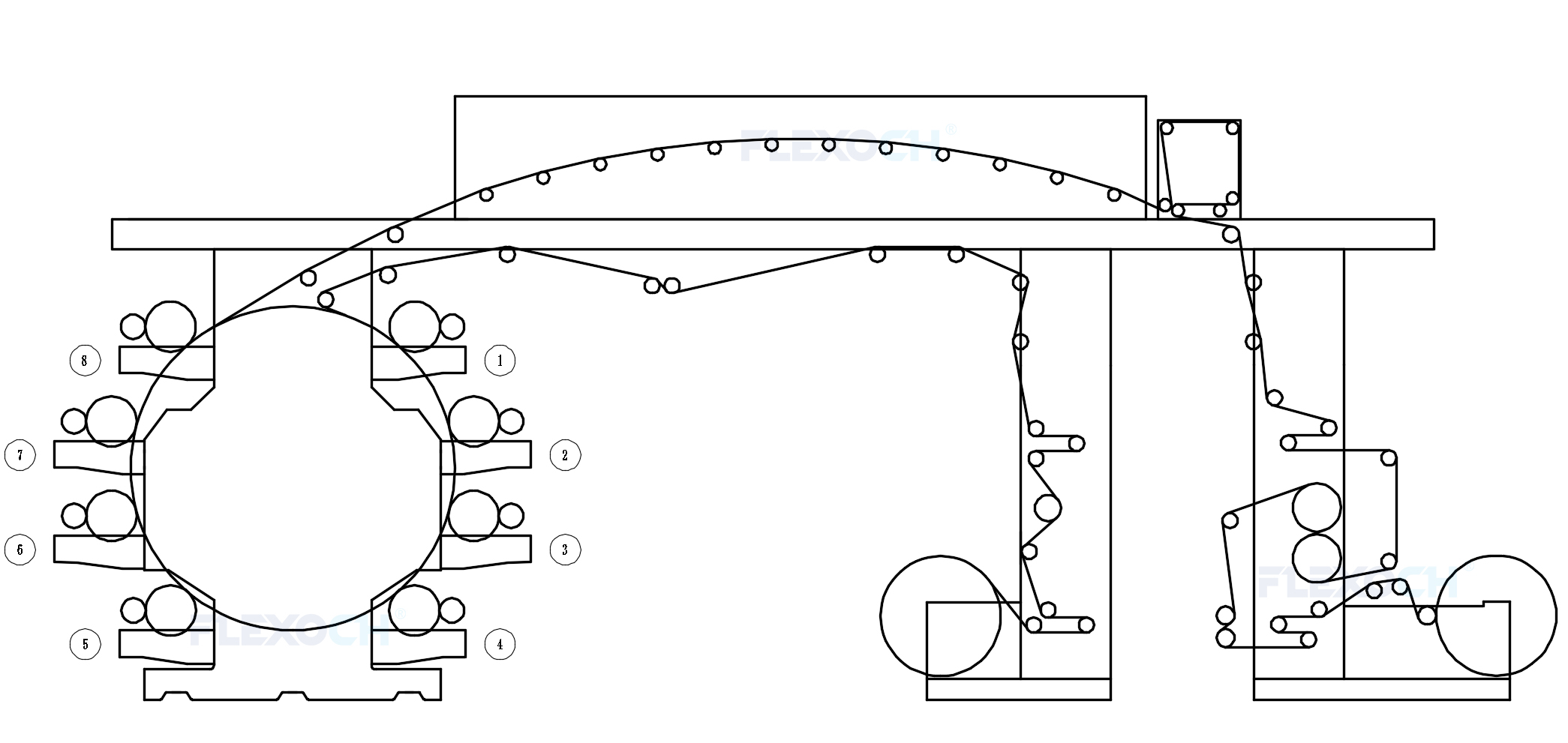

Its main feature is a large central impression cylinder surrounded by multiple printing units. As the substrate passes around the central drum, each station transfers a different colour onto the material. The cylinder supports the substrate throughout the printing process, helping maintain web stability and accurate colour registration.
Compared with other flexo printing machine configurations, this design is particularly suitable for thin plastic films and flexible packaging applications that require consistent print quality. Depending on the configuration, it can also handle paper, nonwoven fabrics and selected composite materials.
How Does a CI Flexo Printing Machine Work?

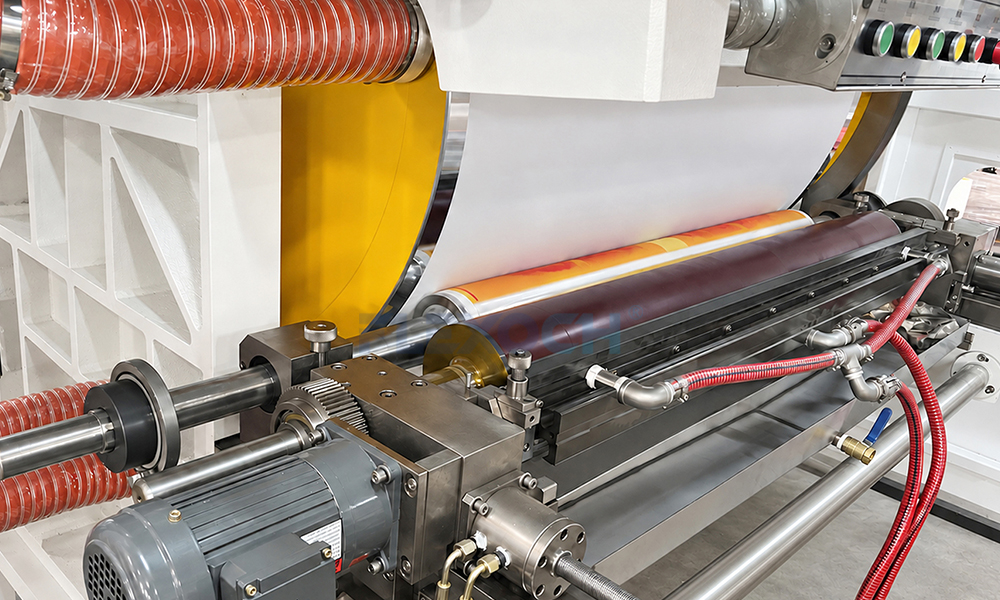

A CI flexo printing machine transfers ink through a series of components, including the ink supply system, ceramic anilox roller, flexographic printing plate and substrate.
The anilox roller meters a controlled amount of ink onto the printing plate, which transfers the image to the moving material. The substrate travels around the central impression cylinder as it passes through successive printing stations, allowing multiple colours to be printed in sequence.
Because the material remains supported by the same central drum during printing, the machine helps reduce substrate movement between colour stations. This arrangement contributes to consistent registration, especially when printing on thin or stretch-sensitive films.

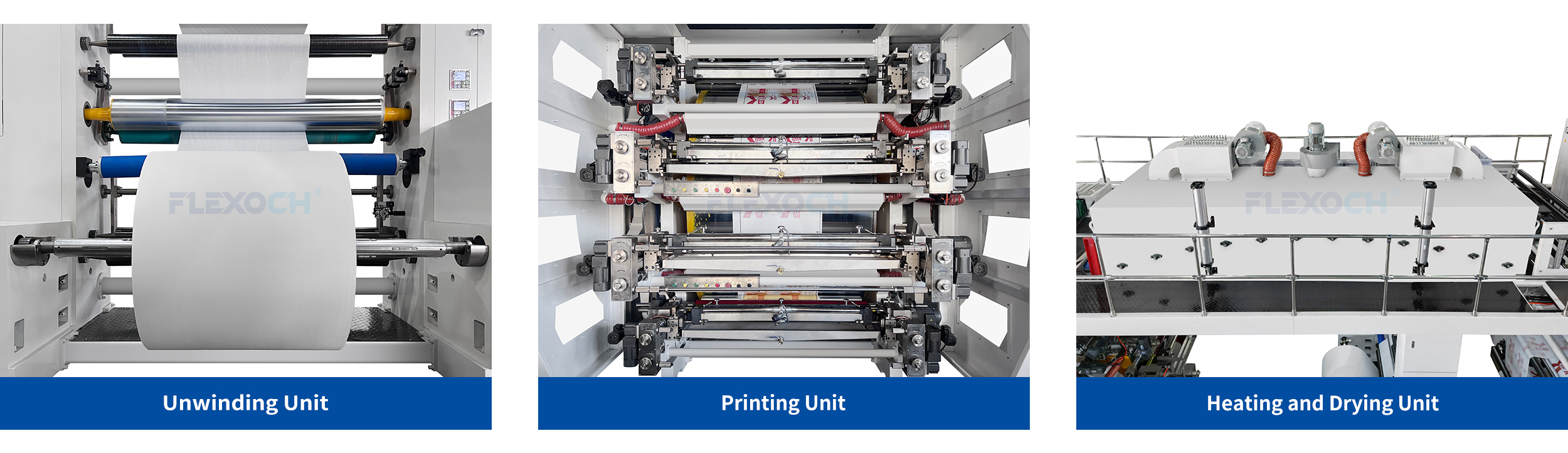

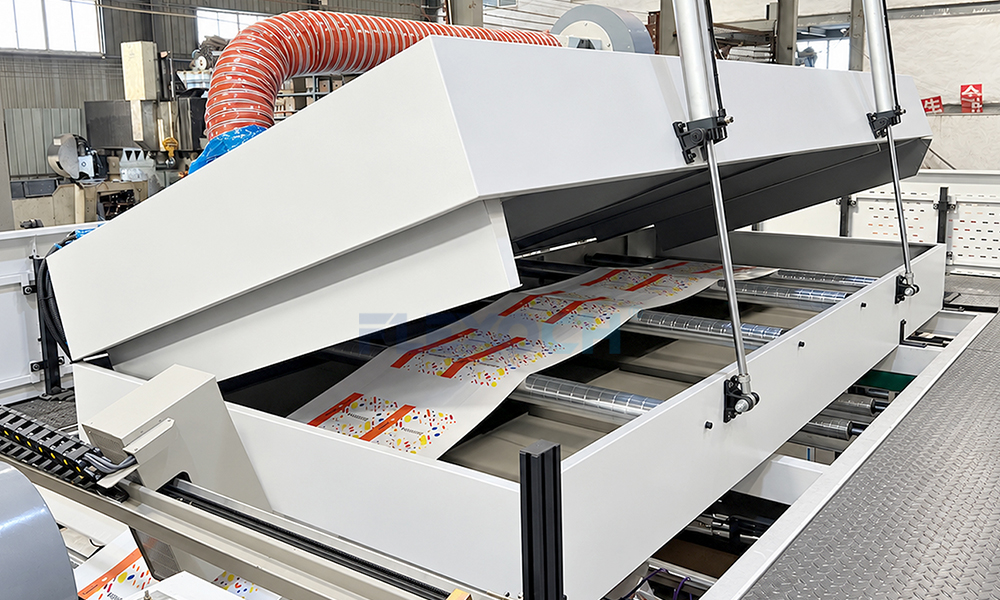

Depending on the configuration, a central impression flexo press may include a closed-chamber doctor blade system, automatic registration control, web tension control, corona treatment, drying units and video inspection equipment. These systems work together to support stable production and consistent print quality.
Key Advantages of Central Impression Flexo Printing Machine
1. Stable Web Handling and Accurate Colour Registration
One of the main advantages of a central impression flexo printing machine is its central drum structure. The cylinder supports the substrate during multi-colour printing, helping minimise web movement and dimensional variation.
This is particularly important when printing on thin plastic films, where fluctuations in tension or material position can affect colour registration. A stable web path helps produce clearer text, accurately aligned graphics and consistent colour placement.
Actual registration performance depends on the machine configuration, substrate properties, operating conditions and control systems.
2. High-Quality Printing on Flexible Packaging Materials
CI flexo printing technology is widely used for flexible packaging because it can process a variety of suitable plastic films, including PE, PP, BOPP, PET and CPP.
These materials are commonly used for food packaging, daily chemical packaging and other consumer product packaging. With appropriate ink selection, surface treatment and drying conditions, a CI flexo printing machine can deliver consistent printing results across different film structures.
Paper, nonwoven fabrics and selected composite substrates can also be processed when the machine is configured for the relevant material requirements.
3. Efficient Multi-Colour Production
A central impression flexo press an be configured with different numbers of printing stations to meet specific artwork and production requirements. Four-colour, six-colour and eight-colour configurations are common, while other configurations may be available.
The central impression cylinder provides a stable reference surface as the substrate passes through each printing unit. Combined with suitable drying capacity and ink delivery systems, this structure supports continuous multi-colour production for packaging converters.
Production efficiency depends on factors such as printing speed, job changeover time, ink drying, print coverage, substrate width and operator experience. Selecting the right configuration helps balance output, quality and operating costs.
4. Flexible Ink Systems and Drying Options
Depending on the machine design and application, a CI flexo printing machine may use water-based or solvent-based inks.
Water-based inks are suitable for many paper applications and certain other compatible substrates. Solvent-based inks are widely used for various plastic-film printing applications. The appropriate ink system depends on substrate compatibility, adhesion, drying performance, production speed and end-use requirements.
For food packaging, manufacturers must also evaluate applicable food-contact regulations, ink migration risks and the complete packaging structure. Using a press does not automatically guarantee that the finished packaging complies with food-contact requirements.
5. Configurable Automation and Process Control
The machine can incorporate different automation features to improve process consistency and reduce manual intervention.

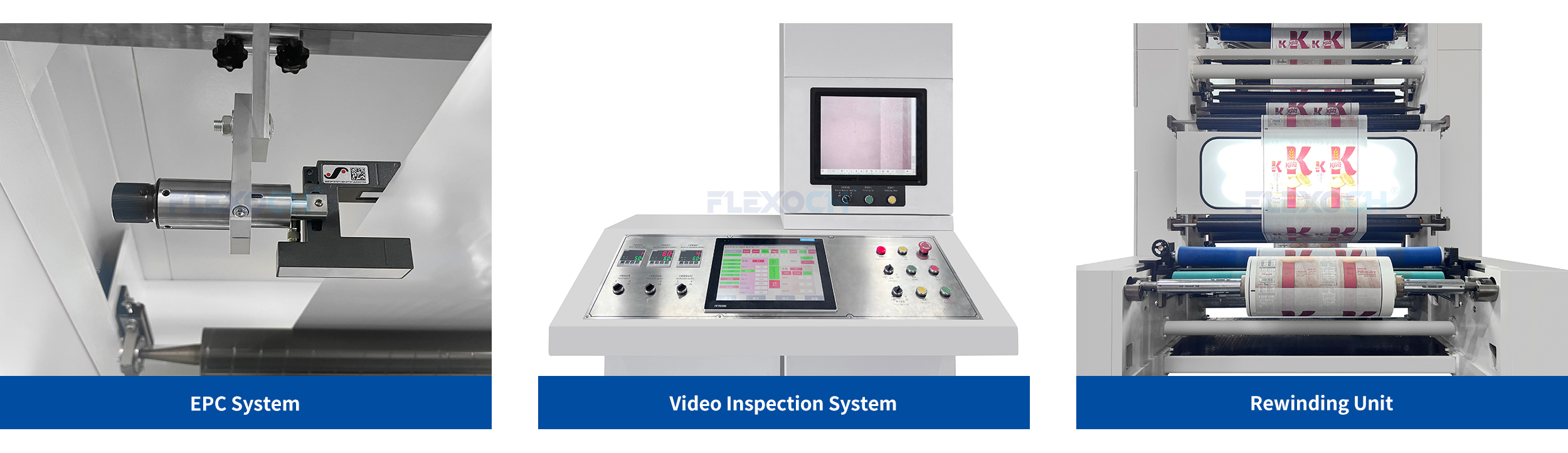

Depending on the configuration, these may include automatic registration systems, closed-chamber doctor blades, web tension control, corona treatment, video inspection and automated winding systems.
The appropriate features depend on the converter's product range, required print quality, production volume and budget. A well-matched configuration can help reduce setup time, control printing defects and improve repeatability across production runs.
Applications of CI Flexo Printing Machines
Central impression flexo printing machine are commonly used in flexible packaging and related printing applications.

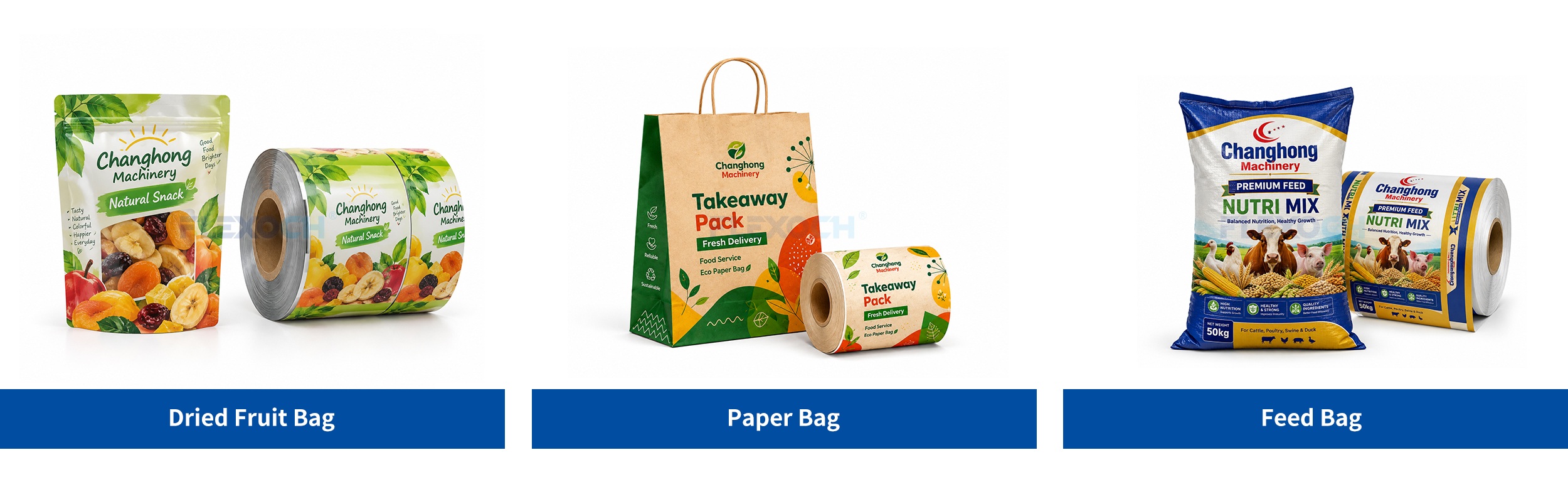

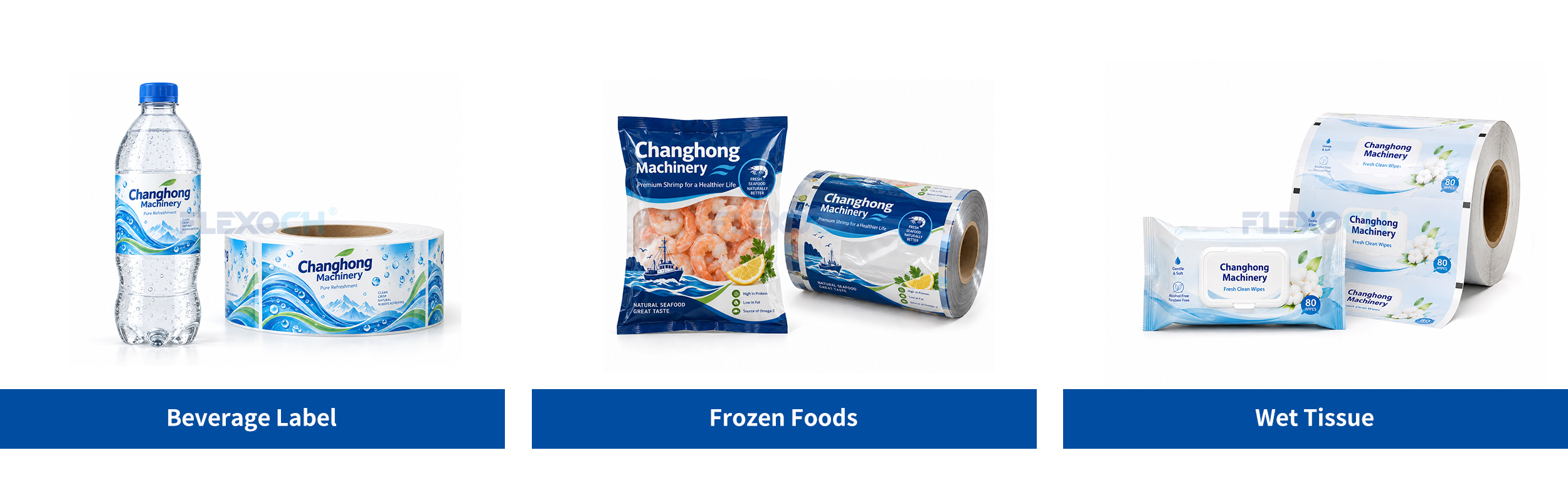

● Flexible food packaging: Printing on suitable films used for snack packaging, frozen food packaging and other flexible packs.
● Daily chemical packaging: Producing printed films for detergents, household products and personal care packaging.
● Plastic film printing: Processing PE, PP, BOPP, PET and CPP films for flexible packaging conversion.
● Paper packaging: Printing on suitable paper materials used for bags, wrapping and other packaging products.
● Nonwoven printing: Printing on compatible nonwoven materials for selected hygiene and industrial applications.
● Composite packaging: Printing on selected laminated or coated structures, subject to material compatibility and process requirements.
Before selecting a machine, packaging manufacturers should confirm the substrate type, thickness, printing width, number of colours, ink system and required production speed.
How to Choose the Right Central Impression Flexo Printing Machine
Choosing the right central impression flexo printing machine involves more than comparing purchase prices. The machine must match the materials, print quality requirements and production targets of the business.
Substrate type and thickness: Confirm whether the machine will process PE, PP, BOPP, PET, CPP, paper, nonwoven or composite materials. Each substrate may require different tension settings, surface treatment and drying conditions.
Printing width and colour configuration: Select a working width and number of printing stations based on the target packaging formats and artwork requirements.
Printing speed and registration accuracy: Compare the rated mechanical speed with the expected production speed for your actual materials and print designs. Request application-specific information about registration performance.
Ink and drying system: Ensure that the ink delivery and drying systems are suitable for the substrate, ink formulation and required production speed.
Automation and maintenance: Evaluate registration control, tension management, inspection systems, cleaning procedures, spare-parts availability and operator training.
Total operating cost: Consider energy consumption, ink usage, material waste, maintenance, changeover time and expected production output alongside the initial machine price.
Working with an experienced flexo printing machine manufacturer can help packaging converters identify a suitable configuration and plan for long-term production requirements.
1. How Much Does a central impression flexo printing machine Cost?
The price depends on printing width, colour configuration, automation and selected equipment. Contact Changhong for a quotation based on your production needs.
2. How Many Colours Should I Choose?
A 4-colour CI flexo printing machine suits simpler designs, while 6-colour, 8-colour or higher configurations support more complex packaging artwork.
3. What Information Is Needed for a Quotation?
Provide your substrate, printing width, number of colours, target speed and production requirements to help determine the right configuration.
4. How Can I Reduce Printing Waste?
Proper setup, accurate registration and stable tension control help reduce material waste and improve flexographic printing efficiency.
5. What After-Sales Support Does Changhong Provide?
Changhong offers remote video support and online technical guidance for its central impression flexo press. Eligible wear parts are supplied free within the first year, subject to service terms.
Conclusion
A central impression flexo printing machine supports stable multi-colour printing for flexible packaging production. Its central drum design helps maintain web stability and consistent print quality.
Choosing the right machine involves evaluating substrate requirements, printing width, colour configuration and production targets. Changhong offers tailored solutions to meet different packaging needs and production requirements.
