With its eco-friendliness, high efficiency, and wide material compatibility, flexographic printing has attracted many new entrants and startups. For those new to the industry, choosing between a CI flexo press and a stack flexo printing machine can be confusing. Both are mainstream flexo models with similar core functions, but they differ greatly in structure, operation, technical difficulty and applications. The wrong choice will raise costs and lower productivity.
This article compares the two models from a beginner’s perspective to help you quickly understand their differences and make the right choice.The suitability of flexographic printing machine directly determines print quality and efficiency. For inexperienced users, ease of use is critical. We first clarify the core definitions and structures of the two machines, then compare key selection factors.
● Video Introduction
1. Core Definitions and Structures

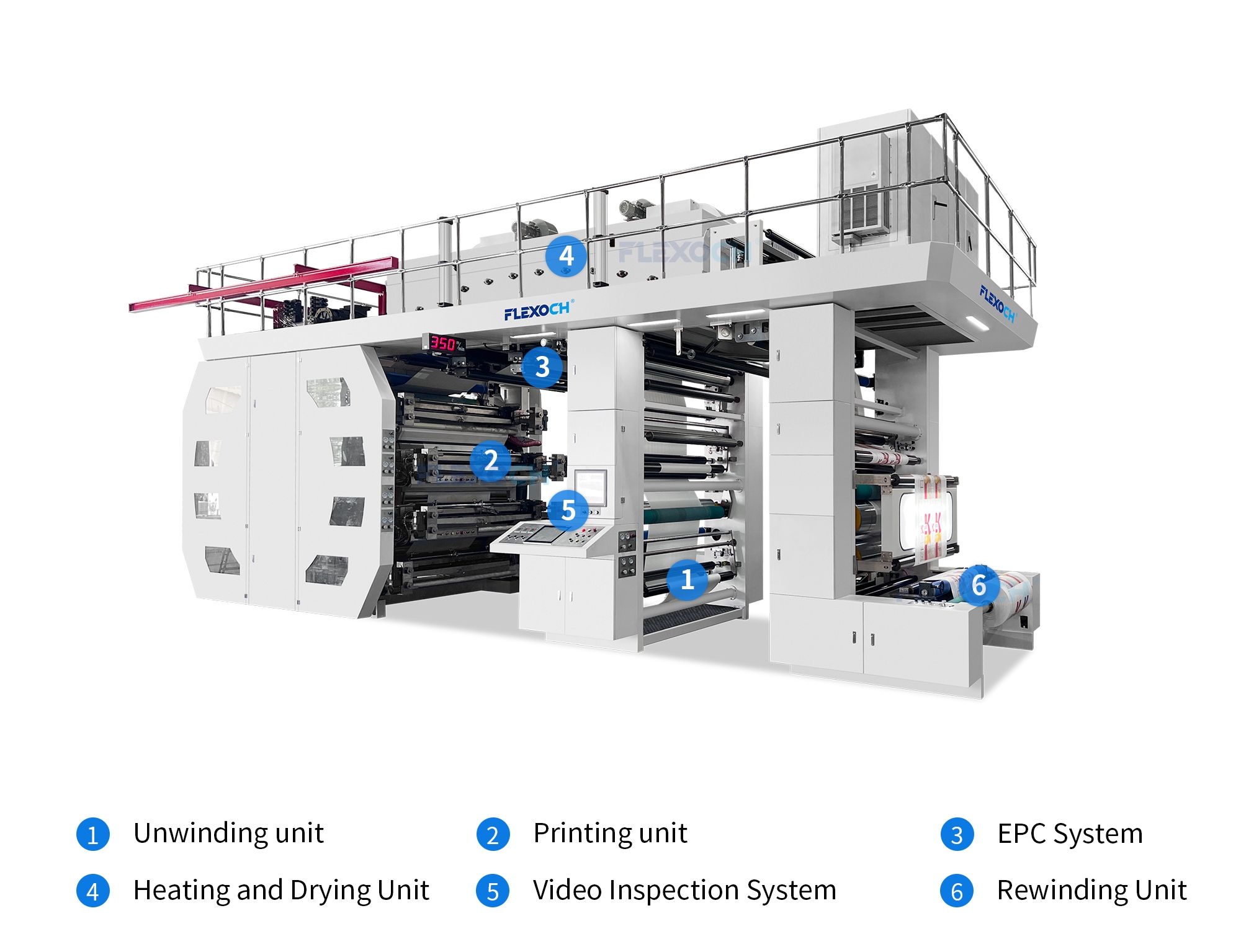

(1) CI Flexo Press (Central Impression Flexo Printing Press)
A CI flexo press, short for Central Impression Flexo Printing Press, features a large central impression drum as its core. All printing decks are evenly distributed around it, forming a closed-loop printing structure—this is its most essential difference from other flexo models.
It prints in a single-pass manner: the substrate clings tightly to the central drum and passes through each color deck sequentially as the drum rotates. With even tension and minimal
stretching or shifting, it achieves exceptionally high registration accuracy.
Key Technical Features for newcomers
● This machine comes with a compact structure, but it is also quite sophisticated. It uses a large central impression drum as its main part, with color decks placed symmetrically around it.
● To run it properly, you need precise control over tension, speed, and registration. That means the operator must have good skills and experience.
● It works really well for stretchable flexible packaging materials, which makes it suitable for long runs and continuous high-volume production.
● Advantages include high registration accuracy, fast working speed, and strong stability.
● Disadvantages are higher overall cost and more complex maintenance. Also, a turning bar is needed if you want to print on both sides.

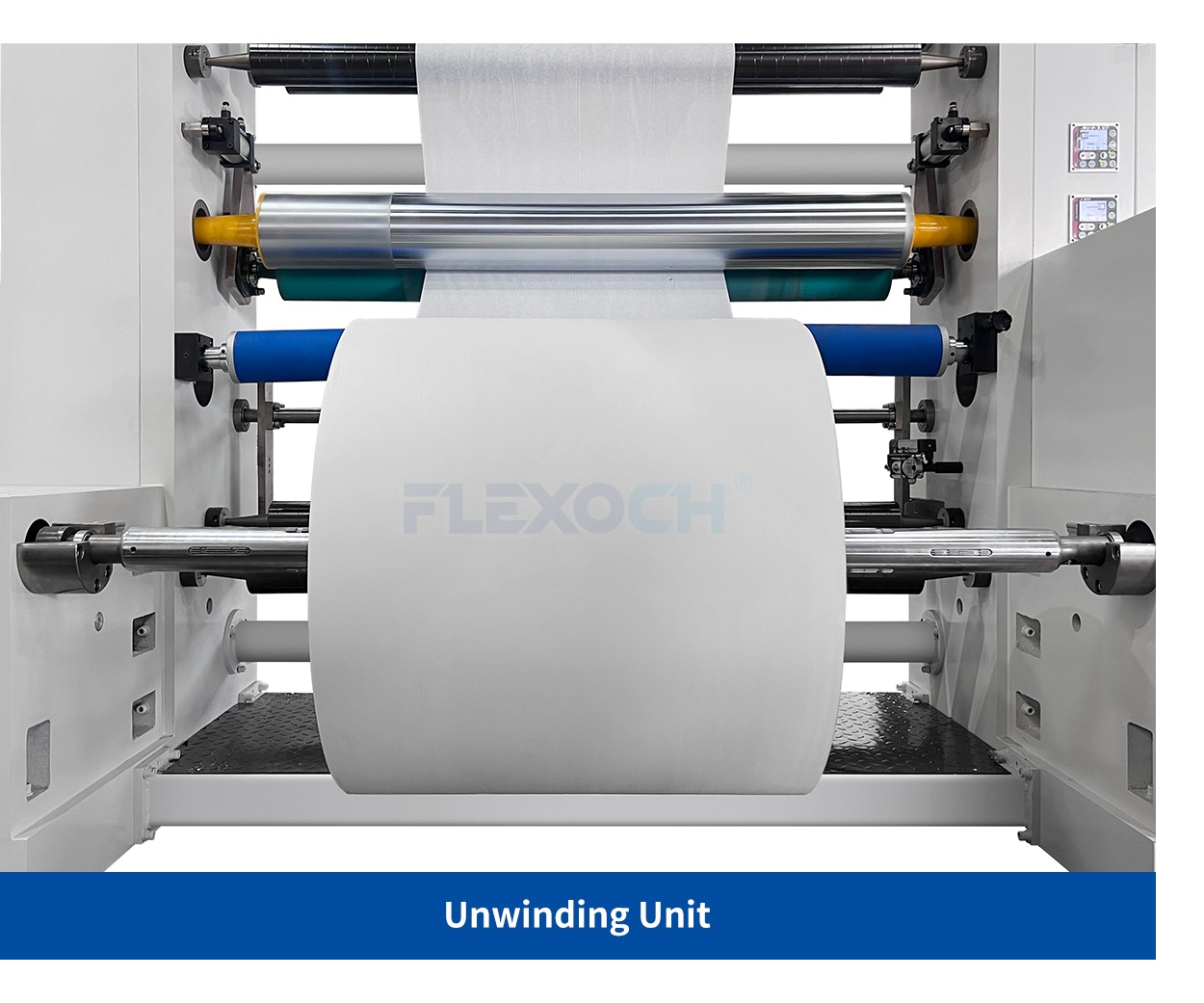

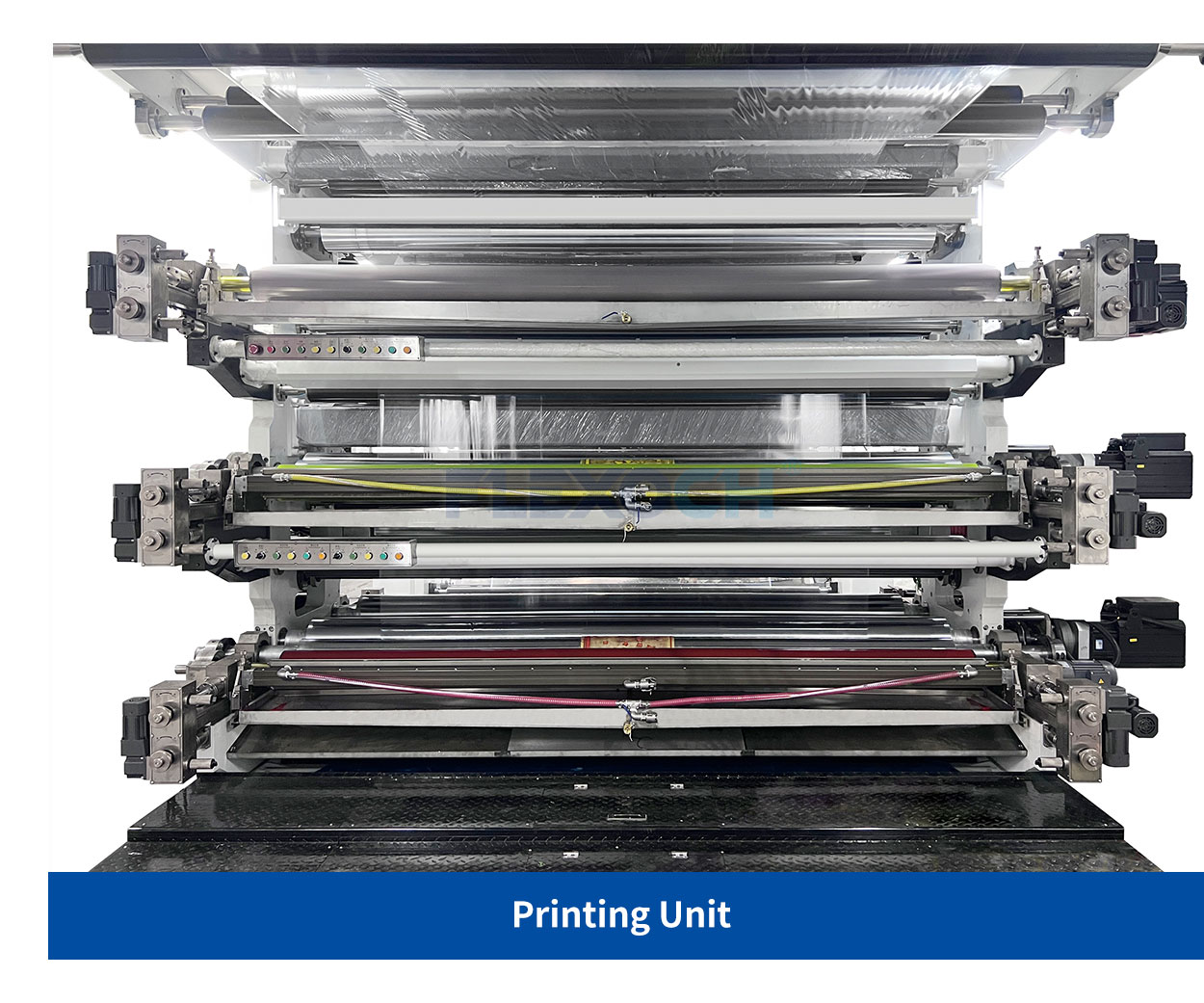

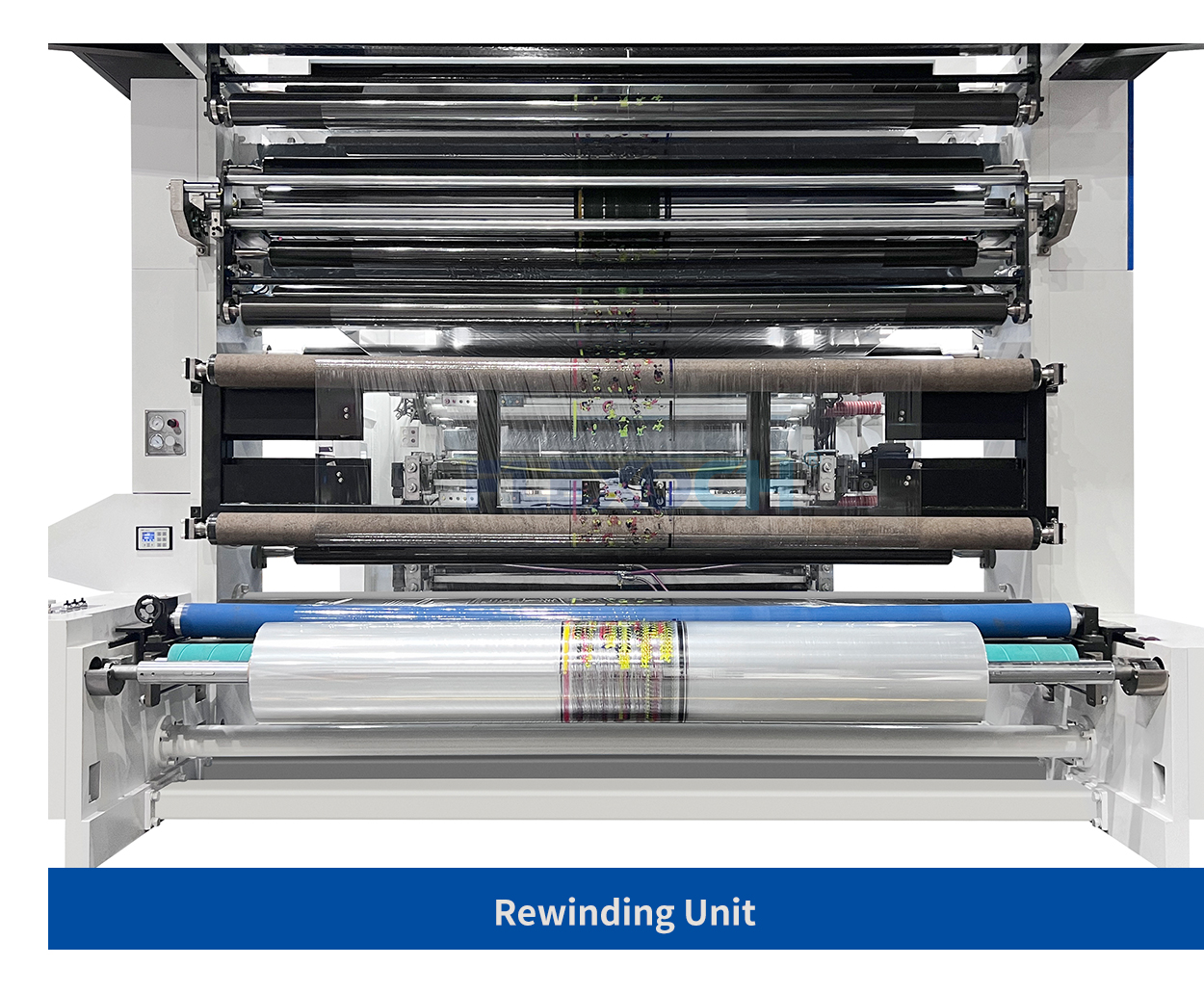

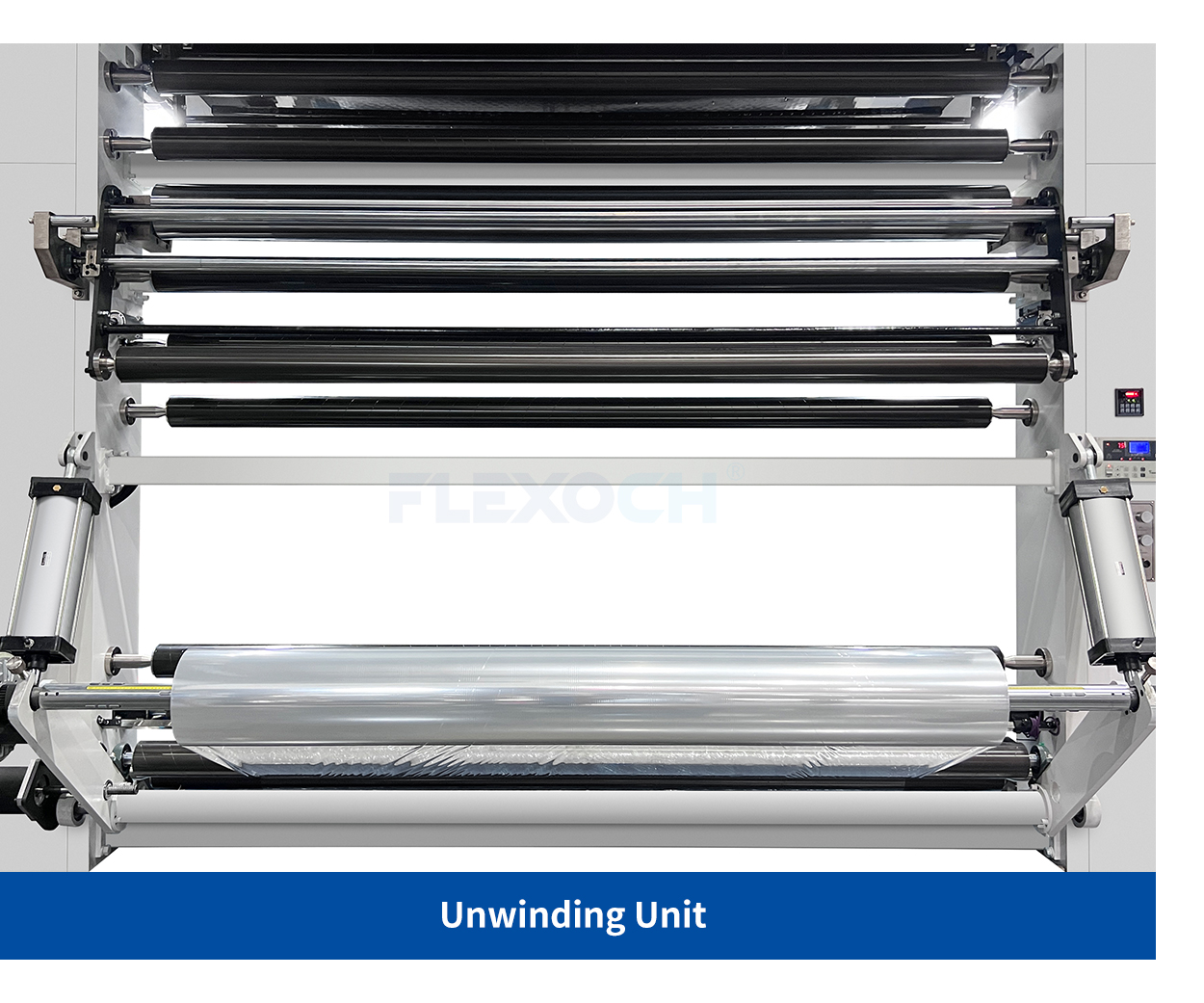

● Details Dispaly

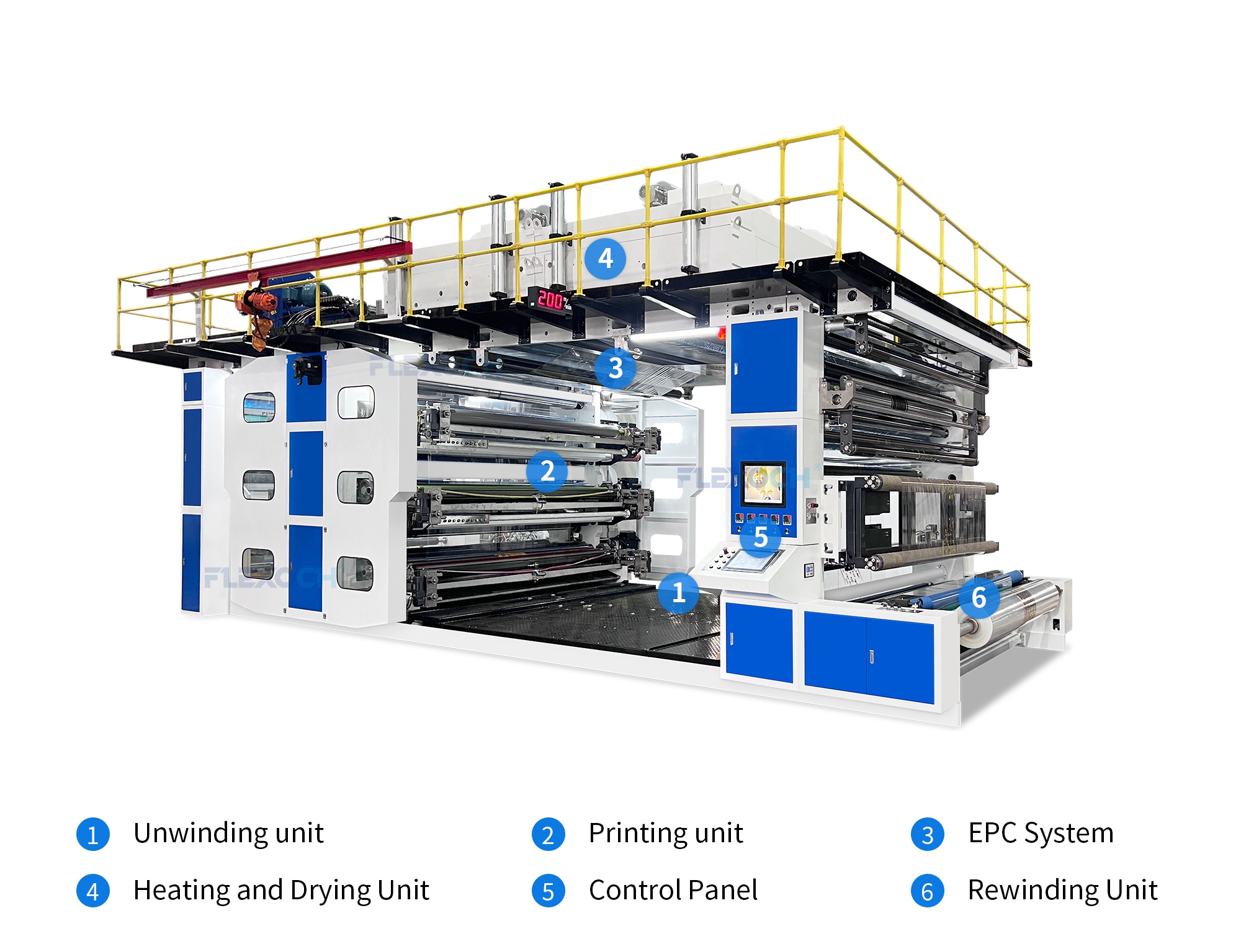

(2) Stack Flexo Press
Also known as a Stack-type flexo printing machine, a stack flexo press has vertically stacked, independent color decks. Each deck functions as a self-contained unit with its own impression and inking system, and can be controlled separately—making its structure very different from a Ci type flexo printing machine.
It prints in a step-by-step manner: the substrate runs through each independent color deck in sequence. Since decks operate independently, operators can adjust each one separately, offering great operational flexibility.
Key beginner-friendly technical features:
● Simple, modular structure with no complex linkage systems, easy for newcomers to understand.
● Independent deck adjustment for quick plate changes, ink setup, and pressure calibration; easy troubleshooting.
● Ideal for non-stretching rigid or stable materials, suitable for small-batch, multi-variety orders.
● Strengths: lower cost, easy maintenance, fast job changes, easy double-sided printing.Weaknesses: slightly lower registration accuracy and speed than CI models.

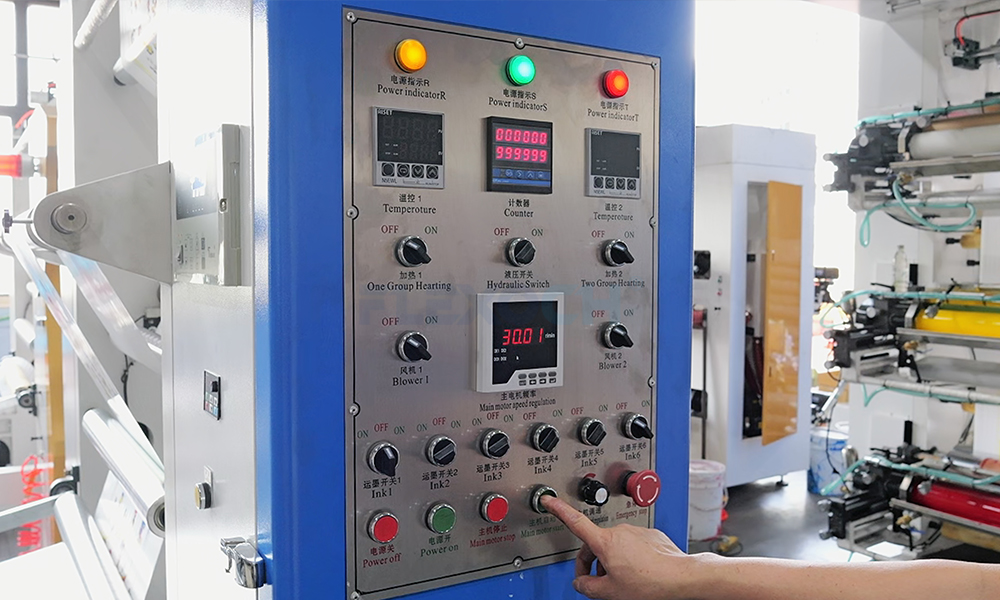

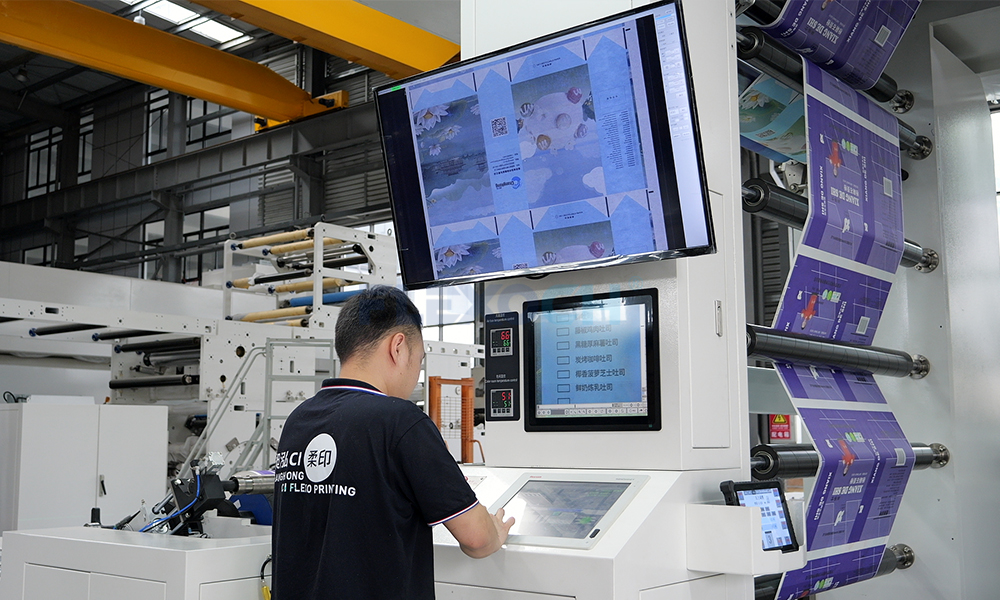

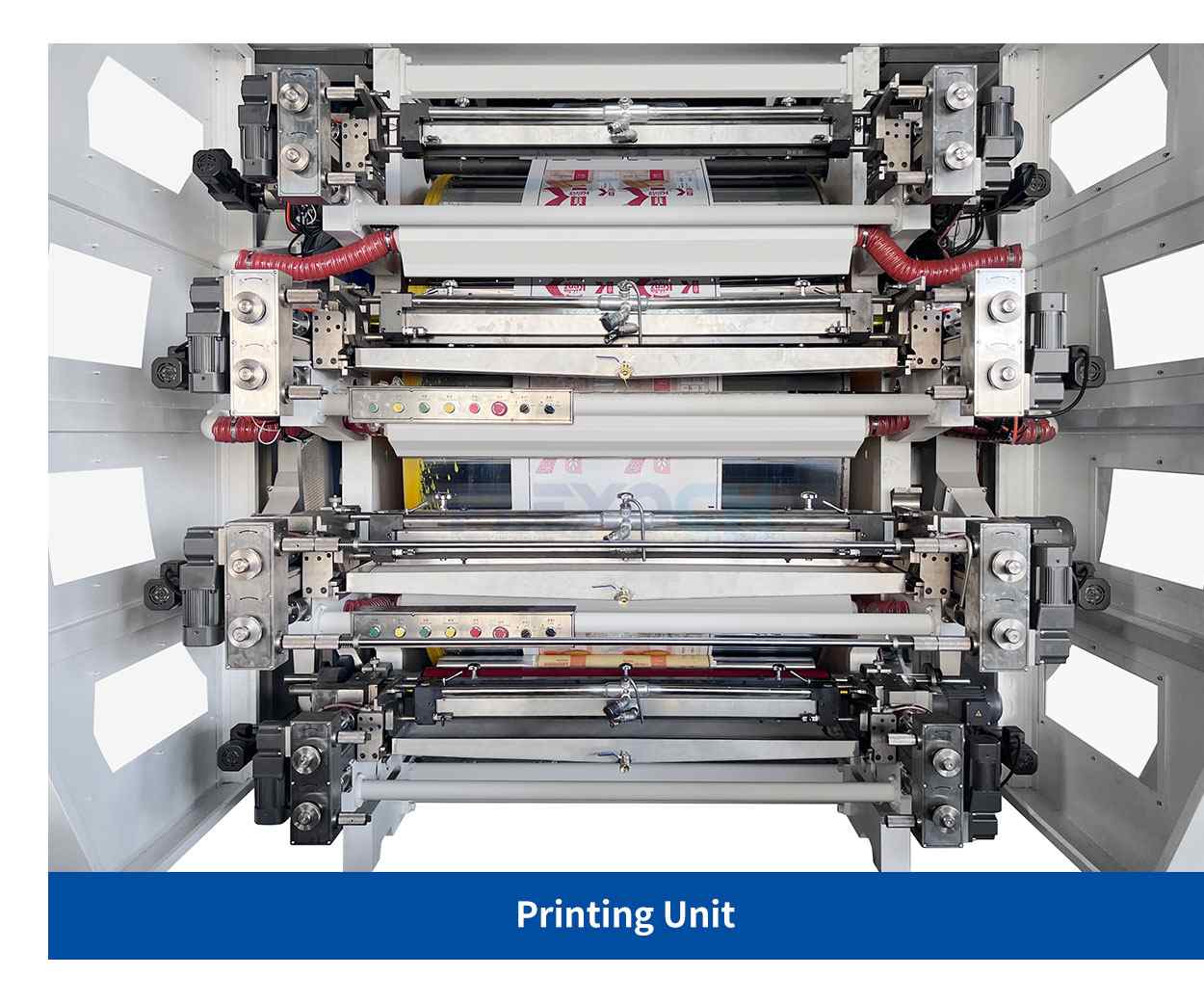

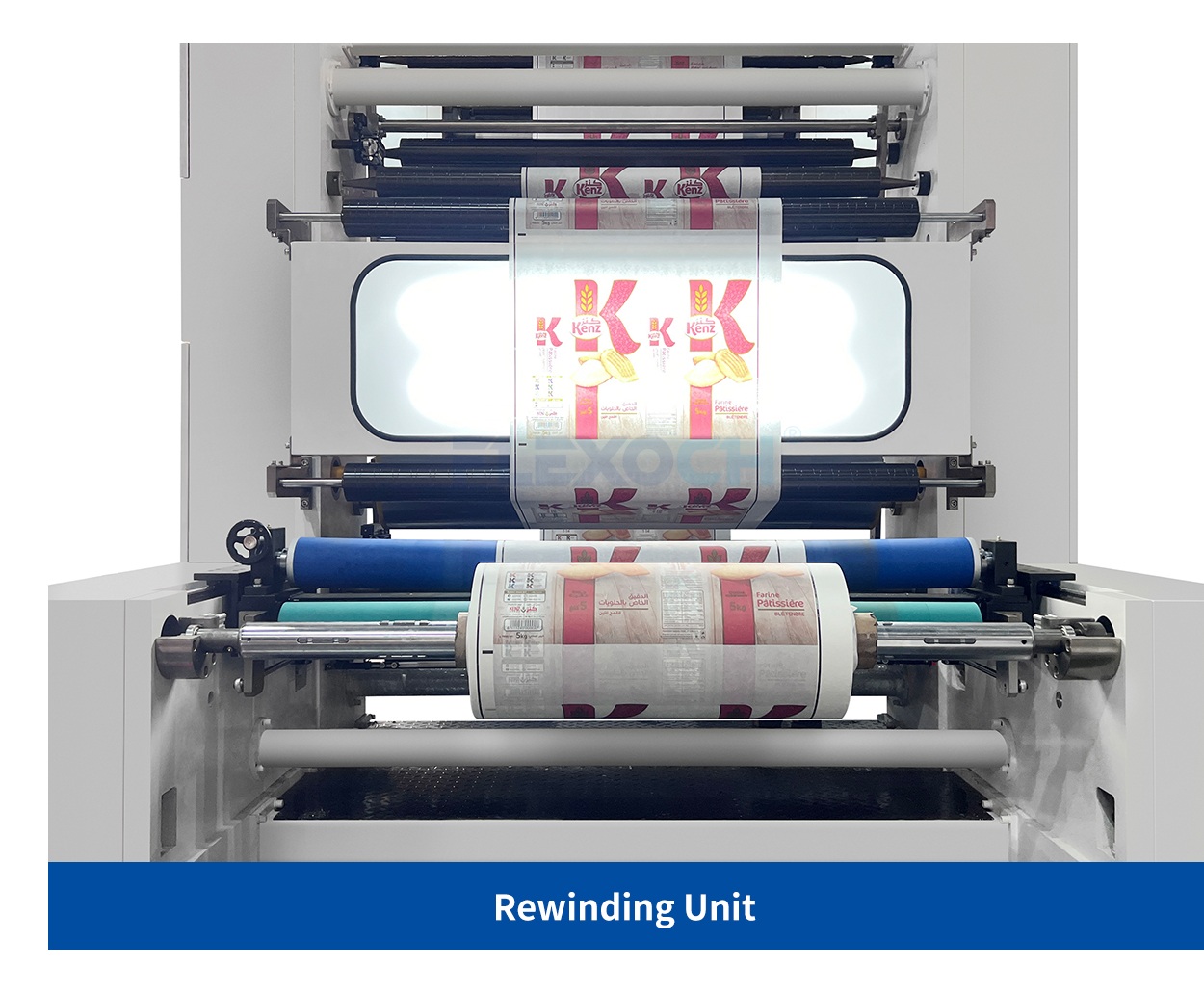

● Details Dispaly
2. Core Comparison: 5 Key Dimensions for newcomers
Focused on beginner-friendliness, low cost, and low risk, we compare the two machines across 5 critical dimensions:
(1) Operation Difficulty
Stack flexo printing machines are far more beginner-friendly and faster to learn.With independently operating decks, adjustment logic is straightforward. Plate changes and ink adjustments can be done per deck. Malfunctions are isolated to individual decks, so newcomers can troubleshoot quickly with basic training, without relying on senior technicians.
CI flexo presses are more difficult to operate. Their linked structure requires precise tension, speed, and registration control. Improper adjustment can lead to misregistration or material deformation, requiring longer training for new operators.
(2) Registration Accuracy
.CI flexographic printing press deliver stable, high-precision printing suitable for fine graphics and high-end flexible packaging. However, most small-batch, standard jobs taken by newcomers rarely fully utilize this precision.
Stack flexo presses have slightly lower accuracy but are more than sufficient for standard beginner applications. Registration adjustment is intuitive, and newcomers can calibrate individual decks to reduce errors.
(3) Material Compatibility
CI flexo machines specialize in stretchable flexible packaging materials, which require high stability and typically involve large-scale, high-end orders with higher technical thresholds—often not aligned with a beginner’s starting business.
Stack presses handle paper, film, and other common substrates, matching the typical scope of a beginner’s early orders. They support a wide range of material specifications and adapt flexibly to small-batch, multi-specification jobs.
● Printing Samples
(4) Job Change & Maintenance
Stack flexo machines are more convenient; newcomers can operate them independently.Stacked presses allow single-deck job changes and independent maintenance without full machine shutdown, delivering high job-change efficiency. Daily maintenance is simple and can be performed by newcomers after basic instruction, reducing maintenance costs.
CI flexo printing machines involve complicated job changes requiring full shutdown and removal of all decks. Core component maintenance is complex and needs professional technicians. However, their long-term stability supports efficient mass production as a business scales up.
(5) Investment Cost
Stack flexo presses are easier on your budget at the start. They cost less, save space, and work well in smaller workshops. Maintenance, labor, and material costs are also manageable, making them great for new businesses with limited funds.
CI flexo press come with a higher upfront price and need more space. Their maintenance and consumables also cost more. But they offer better accuracy, faster speeds, and stronger large scale production, so they fit companies with enough capital for long term growth and high-end orders.
3. Selection Conclusion: Stacked for newcomers , CI for Upgrading
For new businesses, stack flexo printing machine is the better choice. They have a simple design, are easy to operate, and keep costs under control. They also involve low trial risk, and you don’t need highly skilled technicians for daily use and maintenance.
CI flexo printing machine deliver better precision, speed, and stability. They suit experienced users with growing high-end flexible packaging orders. We suggest CI presses as an upgrade once you have enough experience and funding.
4.Final Selection Tips for newcomers
Choose according to your products: stack flexo printing machine work better for labels, cartons and standard printing tasks. If you focus on flexible packaging with sufficient budget and skills, you may think about an entry-level model.
Prioritize practicality over high-end functions. New users don’t need top-tier equipment. Choose machines that fit your daily needs, are easy to operate and cost-effective. Avoid equipment that is cheap to buy but costly to run.
Reserve space for future development. Select expandable stacked models to increase capacity gradually and save upgrading expenses. You can switch to a more advanced solution when your business grows.
Summary
For newcomers and startups in flexo printing, the key to equipment selection is suitability and operability, not high-end performance.
With its simple structure, easy operation, controllable costs, and compatibility with standard applications, the stacked flexo press is the best entry-level choice. It helps new operators quickly master basics, gain industry experience, control early costs, and adapt to small-batch, multi-variety starting orders.
