As the packaging and printing industry moves steadily toward small-batch, multi-batch and fast-delivery production, printing enterprises are facing growing operational pressure from frequent job changeovers. This trend is especially prominent in food packaging, daily chemical packaging, non-woven fabric packaging and paper bag printing sectors, where order structures are undergoing dramatic changes. Short-run orders, multiple SKUs and customized demands have gradually become the mainstream of the market.
For manufacturers using stack type flexo printing machines, job change efficiency not only governs production rhythm, but also directly impacts equipment utilization, labor costs and overall profit margins. Many printing plants boast high maximum running speeds on their machines, yet daily output is never limited by printing speed itself — it is the downtime and setup time consumed by every job change that restricts actual productivity.
Therefore, optimizing job change efficiency for stack flexo printing has become a core competitive edge for packaging printing enterprises.
1. Why Job Change Efficiency Matters More Than Ever
The global packaging industry is rapidly transitioning to flexible production. Brand owners increasingly adopt multi-version packaging designs, with smaller order quantities and more frequent order adjustments. This trend is particularly evident in fast-moving consumer goods, where order cycles keep shortening and delivery speed requirements continue to rise.
Under such market dynamics, printing workshops workshops using a stack type flexo printing machine need to perform frequent operational adjustments for every new order:
● Printing plate replacement
● Substrate material switching
● Ink color change and replacement
● Register calibration and fine-tuning

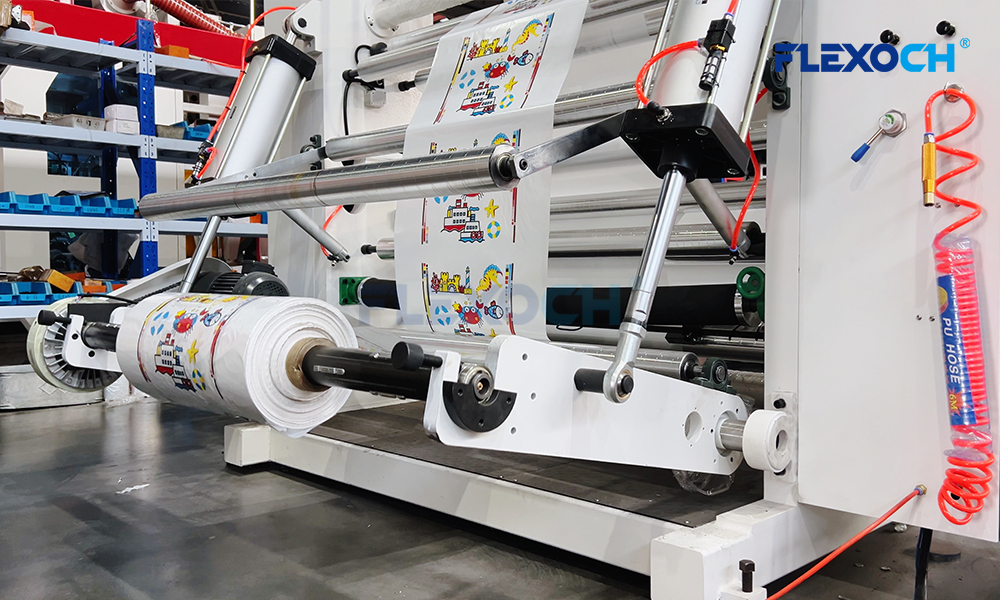

● Rewind and unwind parameter resetting
Extended setup time for each job change keeps machines idle for long periods instead of running in production mode.
In modern flexographic production, especially for users of a stack type flexo printing machine, the key benchmark of operational performance has shifted from maximum printing speed to overall production efficiency — a combined indicator of job change speed and stable running time.
● Printing Samples
2. Main Factors Restricting Stack Flexo Job Change Efficiency
Low job change efficiency rarely stems from a single cause; it is usually the cumulative effect of multiple inefficient links in daily production.
Excessively long plate changing time is one of the most common problems. Traditional manual plate mounting and dismounting has complex procedures, especially for wide-web stack type flexo printing machines. Poor installation often causes mounting deviations, which need repeated register adjustments after startup and lead to extra downtime.
Time-consuming register tuning is another key bottleneck. Multi-color printing requires lateral and longitudinal register recalibration for each new job. Without an automatic register control system, operators can only depend on experience for trial printing and manual adjustment, wasting much time and producing too much waste material.
Ink system cleaning efficiency also greatly influences total changeover time. Different orders usually need different ink colors, so ink tanks, anilox rollers and ink circulation systems must be cleaned completely. Outdated machine structure design will greatly lengthen this cleaning process and increase downtime.
Substrate switching is equally critical. Materials such as PE, BOPP, non-woven fabric and paper differ greatly in tension resistance and ductility. Unstable tension control easily causes web deviation, wrinkling and deformation, further prolonging setup and debugging time.
3. Practical Solutions to Boost Stack Flexo Job Change Efficiency
Improving job change efficiency means cutting unnecessary downtime and getting machines to stable production as quickly as possible. It needs coordinated optimization in three areas: mechanical structure, intelligent control system, and standardized production workflow.

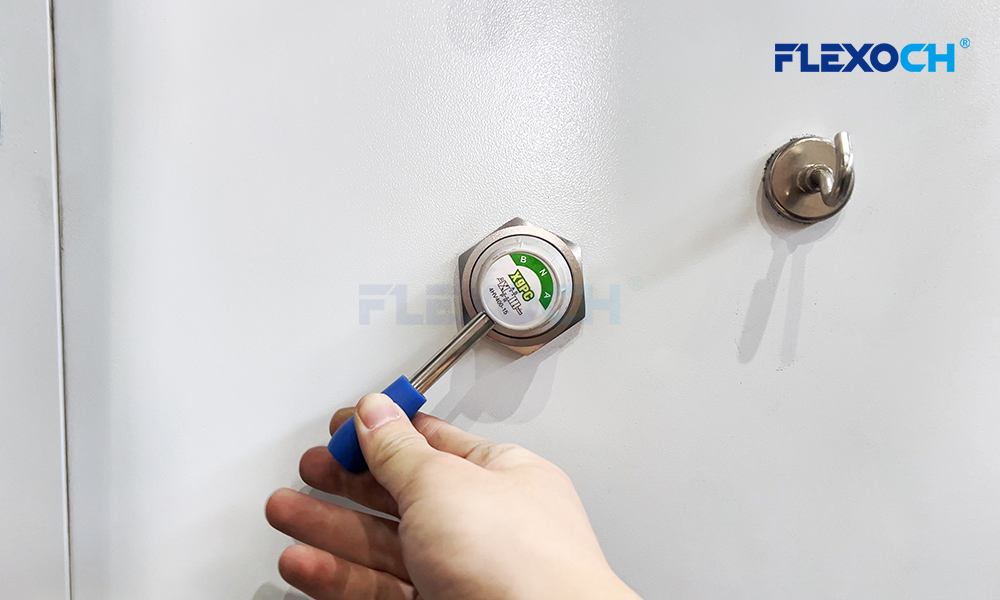

First, a fast plate changing system is the basis for better efficiency. Modern stack type flexo presses use air-expandable plate cylinders and quick lock plate structures, letting operators mount and dismount plates much faster than traditional ways. This design shortens plate replacement time, improves mounting accuracy, and cuts later calibration work.
An automatic register control system serves as another key efficiency upgrade. Equipped with camera inspection modules, the system detects register deviations in real time and implements automatic correction. It drastically reduces manual trial printing times, accelerates stable production startup and cuts material waste rates effectively.

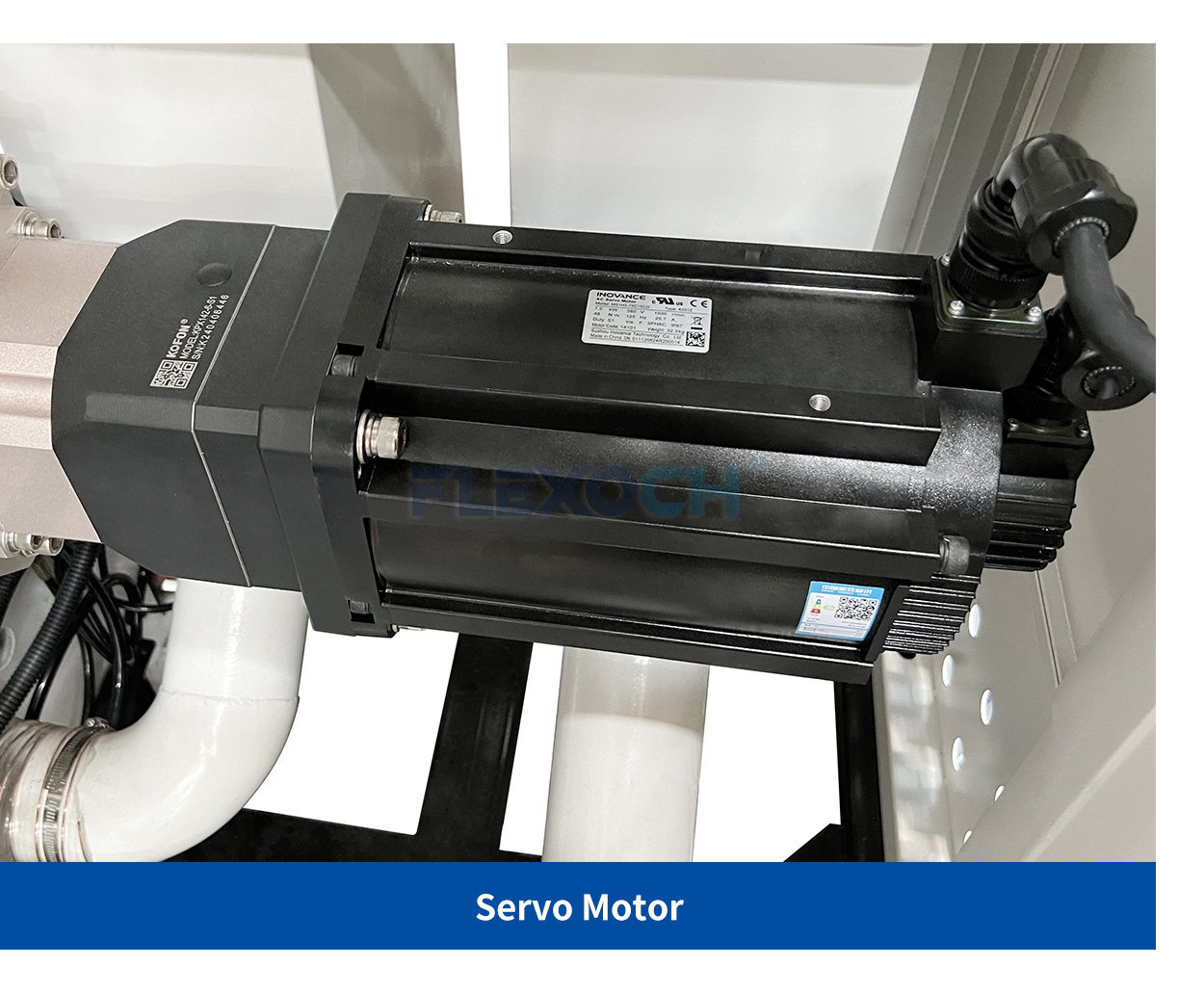

With the advancement of automation technology, servo drive systems are widely applied in flexographic printing machine. Compared with conventional mechanical transmission, servo drive enables fully digital parameter regulation and supports one-click recall of historical order data. For repeat orders, the machine can restore all production parameters instantly, slashing preparation time for job changeovers.

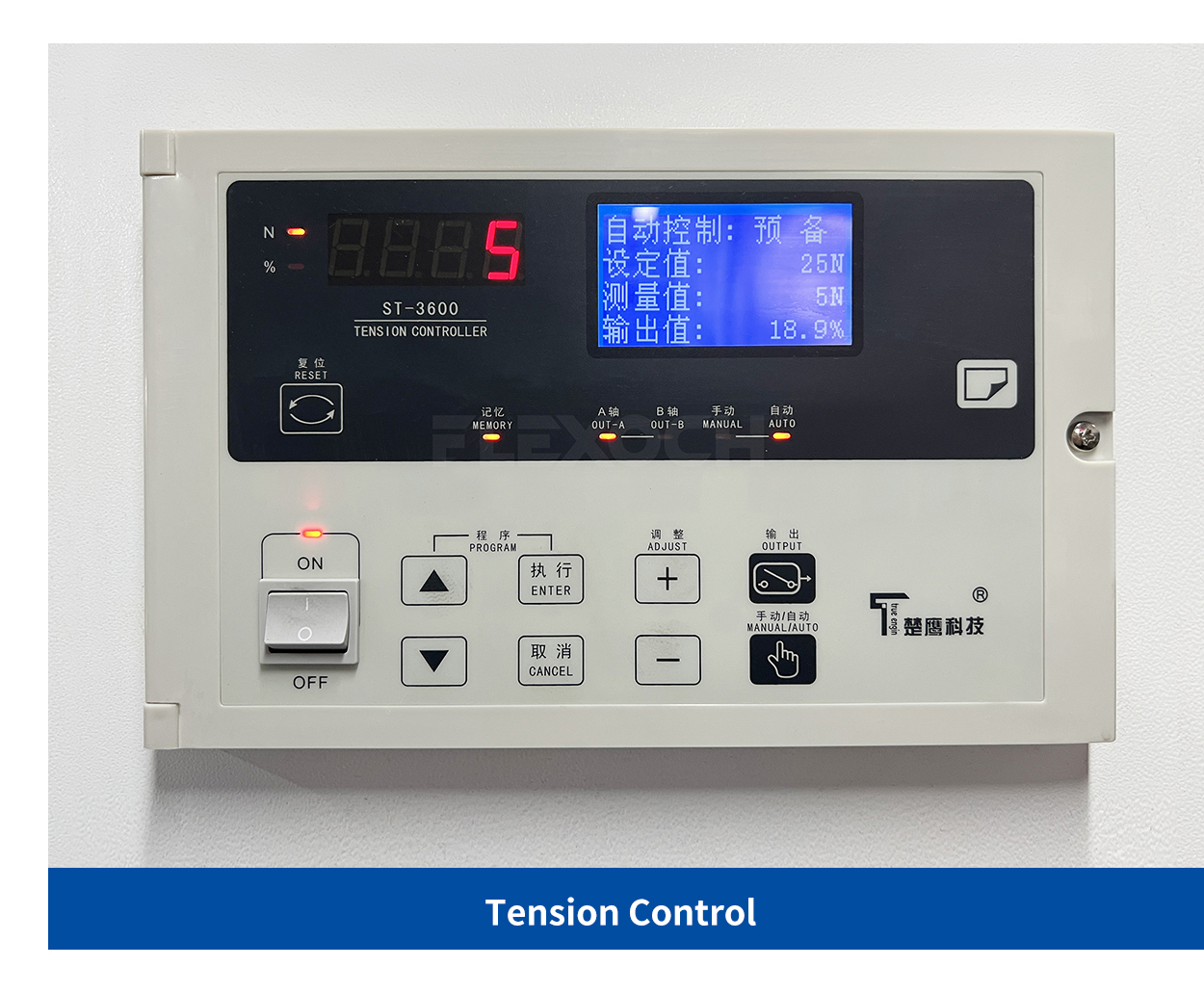

A high-performance automatic tension control system is indispensable as well. It ensures stable web conveying during frequent substrate switching, effectively avoiding web deviation, wrinkling and tension fluctuation, minimizing debugging time and maintaining consistent register accuracy.
In addition, ink circuit design plays a decisive role in changeover efficiency. Quick-detachable ink tanks and automatic ink cleaning systems greatly shorten ink replacement and system cleaning cycles, while lowering manual labor intensity for operators.
4. The Significance of Standardized Production Workflow
Beyond mechanical and technical upgrades, production management methodology also determines overall job change efficiency.
Many enterprises own high-performance machines yet still suffer from slow changeovers due to the lack of standardized operating procedures. A typical problem is preparing printing plates, ink and raw materials only after the previous order finishes, resulting in unnecessary waiting and idle time.
The optimized practice is to complete preparation for the next order during the final production stage of the current run, including pre-preparing printing plates, allocating corresponding ink materials and presetting basic machine parameters.
Establishing a complete order parameter database is equally vital. All historical production data — including tension values, register settings and pressure parameters — can be stored and recalled for repeat orders, eliminating redundant manual tuning work.
Standardized workflows combined with data-driven management maximize equipment utilization and streamline the entire job change process.

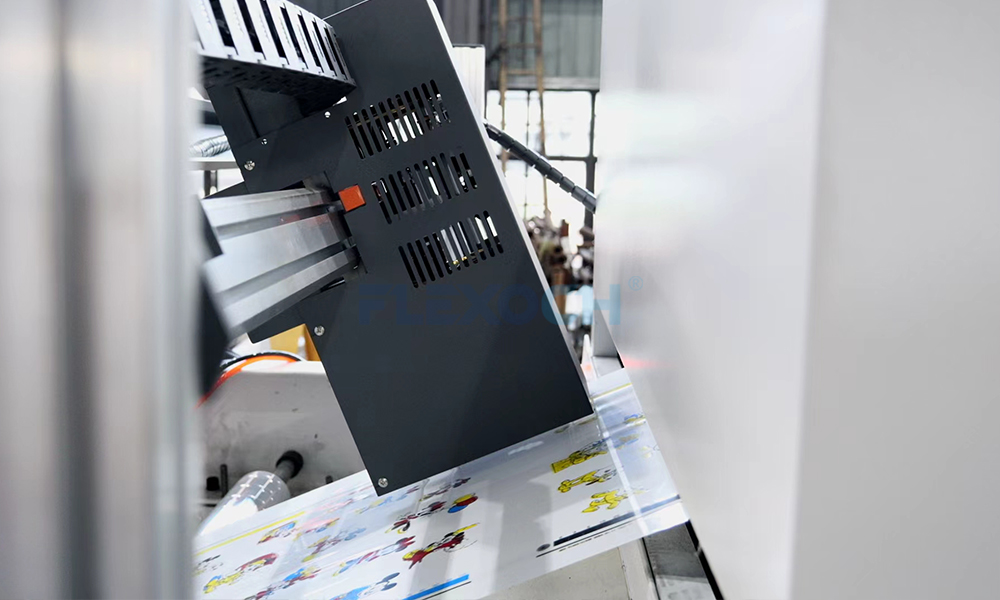

● Video Introduction
The following is an introduction to the workflow of stack type flexo printing machine 6 color.
5. Development Trends of Stack type Flexo Printing Machines
As the packaging industry moves toward intelligent manufacturing, stack flexo printing machines are continuously upgraded and optimized. Future development will focus on:
● Higher level of full-process automation
● Intelligent upgrading of register and tension control systems
● Optimized mechanical structure for faster plate changing and ink cleaning
● Powerful data storage and intelligent management capabilities
● Enhanced stability for long-time high-speed operation
● The integration of these technologies is transforming flexographic production from experience-driven operation to data-driven intelligent manufacturing, further lifting overall production efficiency.
6. Conclusion
Against the backdrop of evolving market demands in the packaging printing industry, enhancing job change efficiency for stack flexo printing has become an essential approach for enterprises to cut operational costs and strengthen market competitiveness.
With the combined adoption of fast plate changing structures, automatic register technology, servo drive systems, intelligent tension control and standardized production workflows, manufacturers can effectively reduce downtime, improve equipment operational efficiency and lower overall production waste.
As small-batch, high-frequency order demands continue to grow, flexo printing machines with high automation and superior operational stability will dominate the industry mainstream.
Changhong specializes in the R&D and manufacturing of professional flexographic printing machine. We provide comprehensive solutions covering stack flexo printing machines, ci flexo printing machines and Gearless flexo printing presses, widely applicable to plastic film, paper, non-woven fabric and general flexible packaging printing.
Our flexographic printing machines are engineered with focused optimization for fast job change and user-friendly operation. Equipped with rapid plate changing design, automatic tension control and intelligent control platforms, our equipment helps clients shorten setup time, reduce material waste and upgrade overall production efficiency.
If you are seeking flexographic printing solutions tailored for high-frequency job change and small-batch production, we can provide customized equipment configuration and professional technical support based on your actual production requirements.
