4 COLOR FLEXO PRINTING MACHINE/CI FLEXOGRAPHIC PRINTING PRESS FOR PP WOVEN BAG

4 COLOR FLEXO PRINTING MACHINE/CI FLEXOGRAPHIC PRINTING PRESS FOR PP WOVEN BAG

4 COLOR FLEXO PRINTING MACHINE/CI FLEXOGRAPHIC PRINTING PRESS FOR PP WOVEN BAG

This 4 color ci flexographic printing press is specially designed for PP woven bags. It adopts advanced central impression technology to achieve high-speed and precise multi-color printing, suitable for various packaging production such as paper and woven bags. With features like energy efficiency, environmental friendliness, and user-friendly operation, it is the ideal choice for enhancing packaging printing quality.


  • MODEL: CHCI-J-Z Series
  • Machine Speed: 250m/min
  • Number Of Printing Decks: 4/6/8
  • Drive Method: Central drum with Gear drive
  • Heat Source: Electrical heating
  • Electrical Supply: Voltage 380V. 50 HZ.3PH or to be specified
  • Main Processed Materials: PP woven bag,Paper,Non-Woven, Films,Aluminium foil
  • Product Detail

    Product Tags

    technical specifications

    Model CHCI4-600J-Z CHCI4-800J-Z CHCI4-1000J-Z CHCI4-1200J-Z
    Max. Web Width 650mm 850mm 1050mm 1250mm
    Max. Printing Width 600mm 800mm 1000mm 1200mm
    Max. Machine Speed  250m/min
    Max. Printing Speed 200m/min
    Max. Unwind/Rewind Dia. Φ1200mm/Φ1500mm
    Drive Type Central drum with Gear drive
    Photopolymer Plate To be specified
    Ink Water base ink or solvent ink
    Printing Length (repeat) 350mm-900mm
    Range Of Substrates PP Woven Bag、Non Woven 、Paper、Paper Cup
    Electrical Supply Voltage 380V. 50 HZ.3PH or to be specified

    Video Introduction

    Machine Features

    ● High-Speed, High-Efficiency, and Precise Registration:This 4 color ci flexo printing machine adopts advanced central impression drum technology, ensuring precise alignment of all printing units for stable, high-speed multicolor printing. With exceptional registration accuracy, it delivers outstanding print quality even under high-capacity production, significantly improving efficiency to meet large-volume order demands.

    ● Corona Pretreatment for Enhanced Print Adhesion:The ci flexographic printing press integrates an efficient corona treatment system to activate the surface of PP woven bags before printing, significantly improving ink adhesion and preventing issues like peeling or smudging. This feature is particularly suitable for non-polar materials, ensuring durable and sharp patterns even at high production speeds.

    ● Intuitive Operation and Wide Material Compatibility:The control system is equipped with a video inspection System, enabling intuitive parameter adjustments and reducing reliance on highly skilled operators. It accommodates PP woven bags, valve sacks, and other materials of varying thicknesses, with quick plate-changing flexibility to easily handle diverse packaging printing needs.

    ● Energy-Efficient and Eco-Friendly, Reducing Production Costs:The flexo press optimizes ink transfer and drying energy consumption, minimizing waste while lowering power usage. Compatible with water-based or eco-friendly inks, it meets green printing standards—reducing environmental impact and helping businesses cut long-term operational costs.

    Details Dispaly

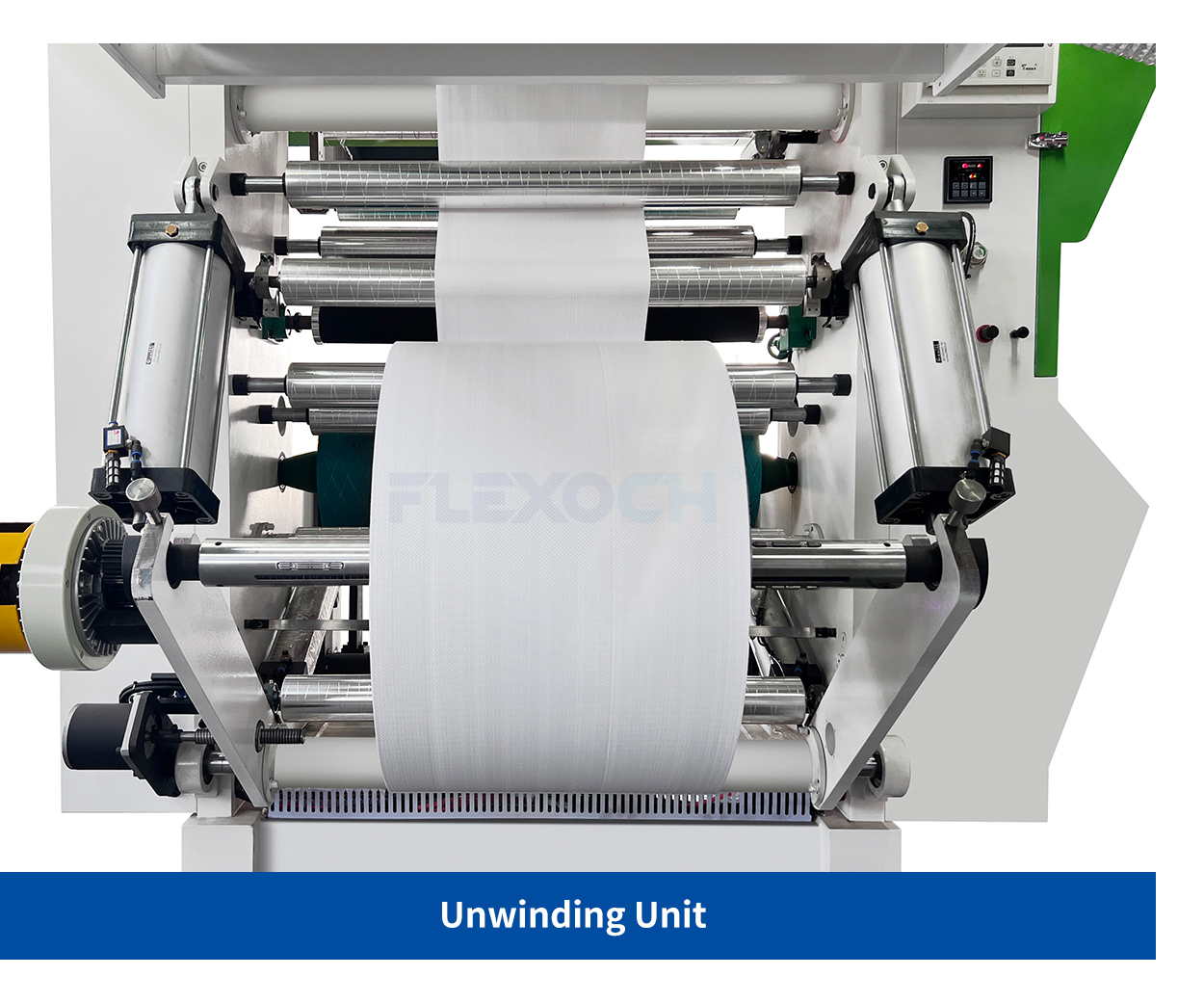

    Unwinding Unit

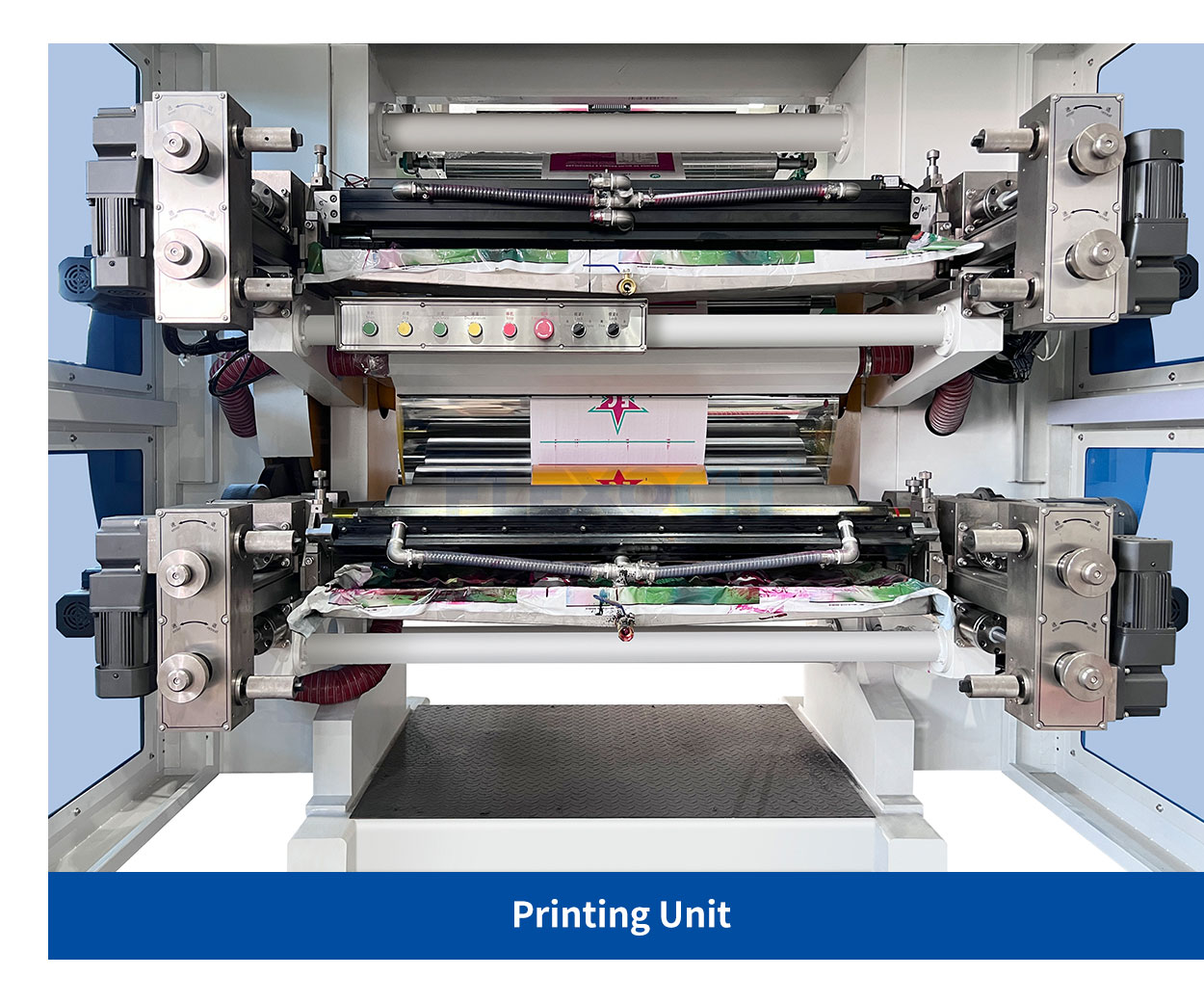

    Printing Unit

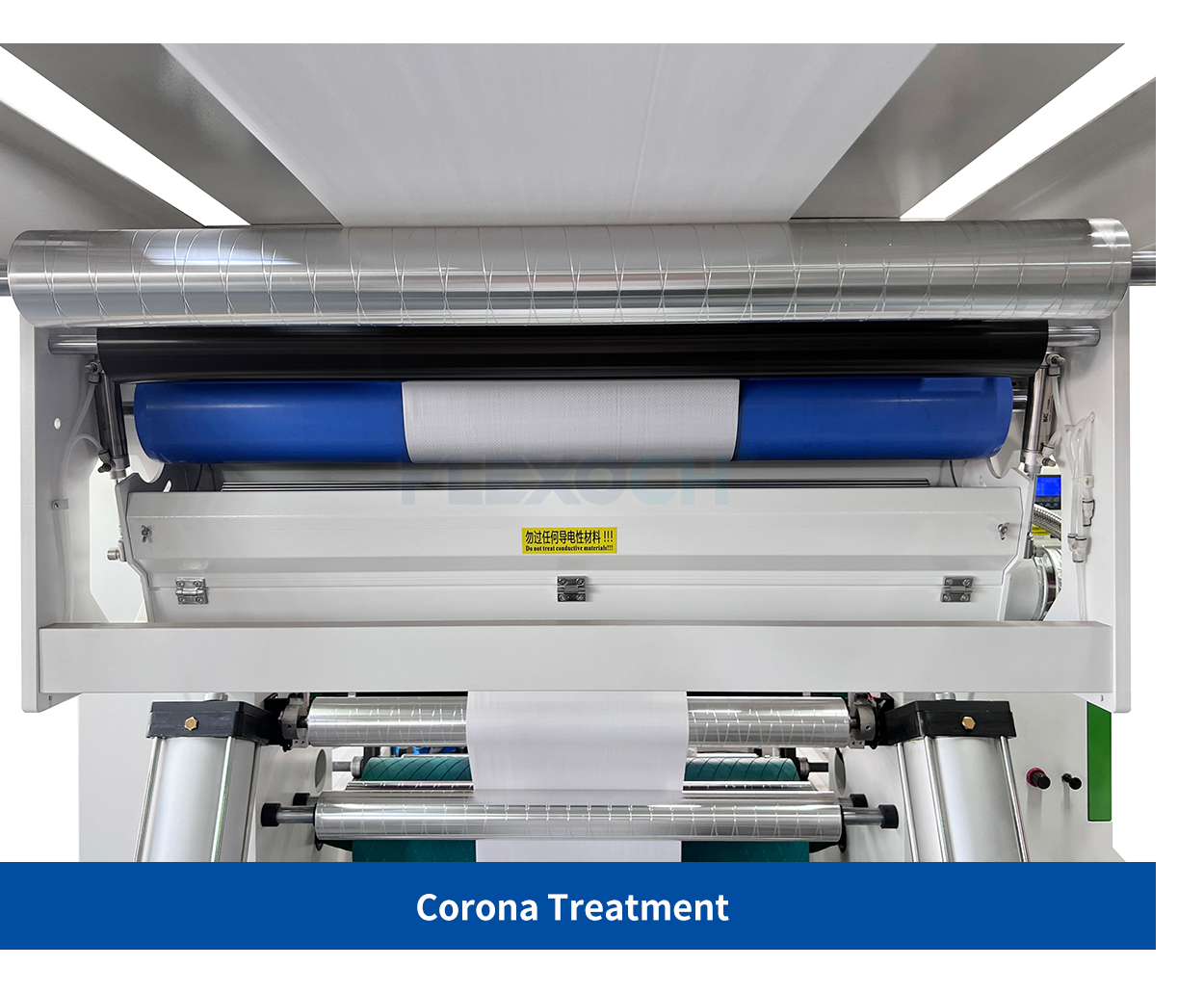

    Corona Treatment
    Surface Rewinding Unit

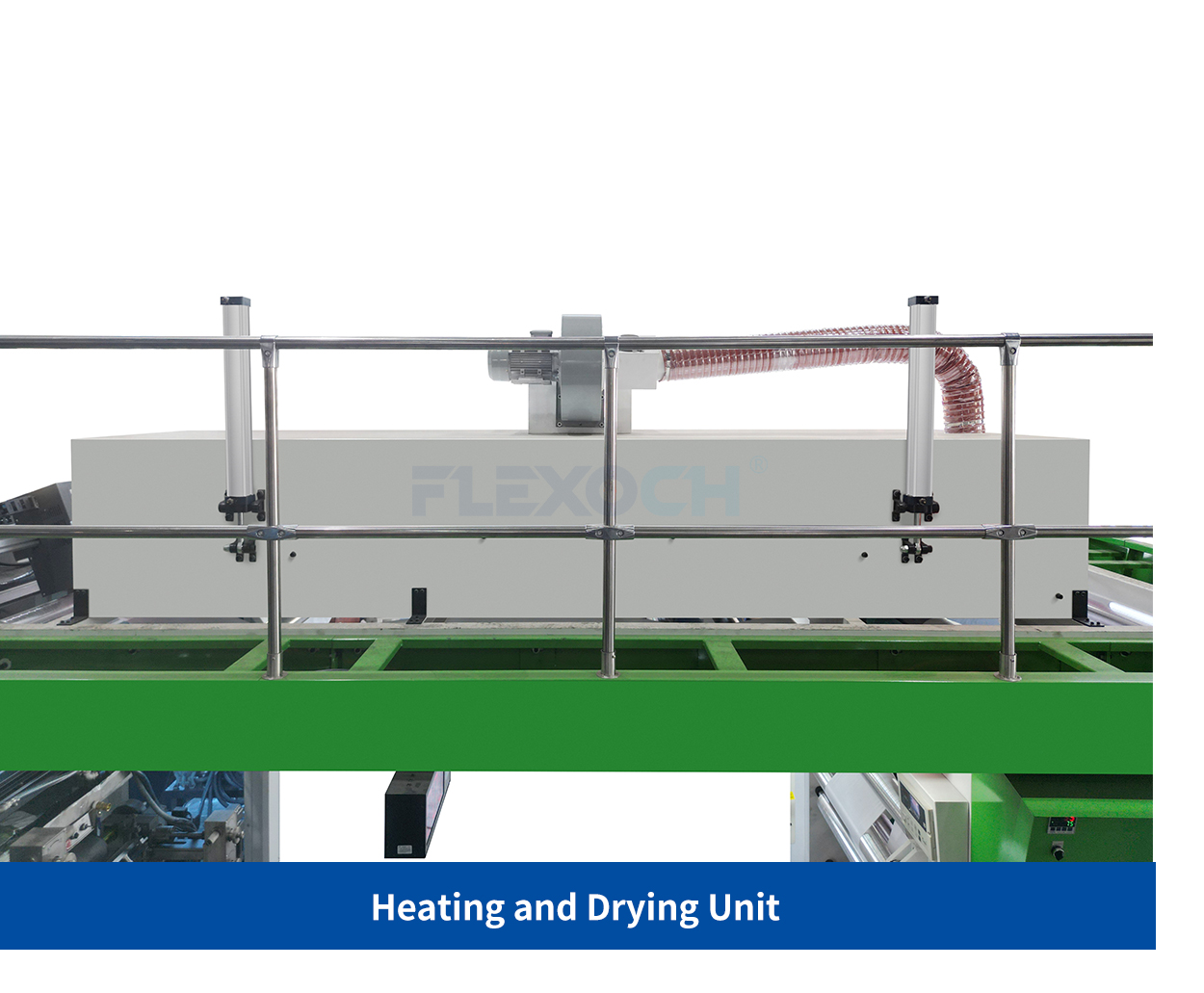

    Heating and Drying Unit

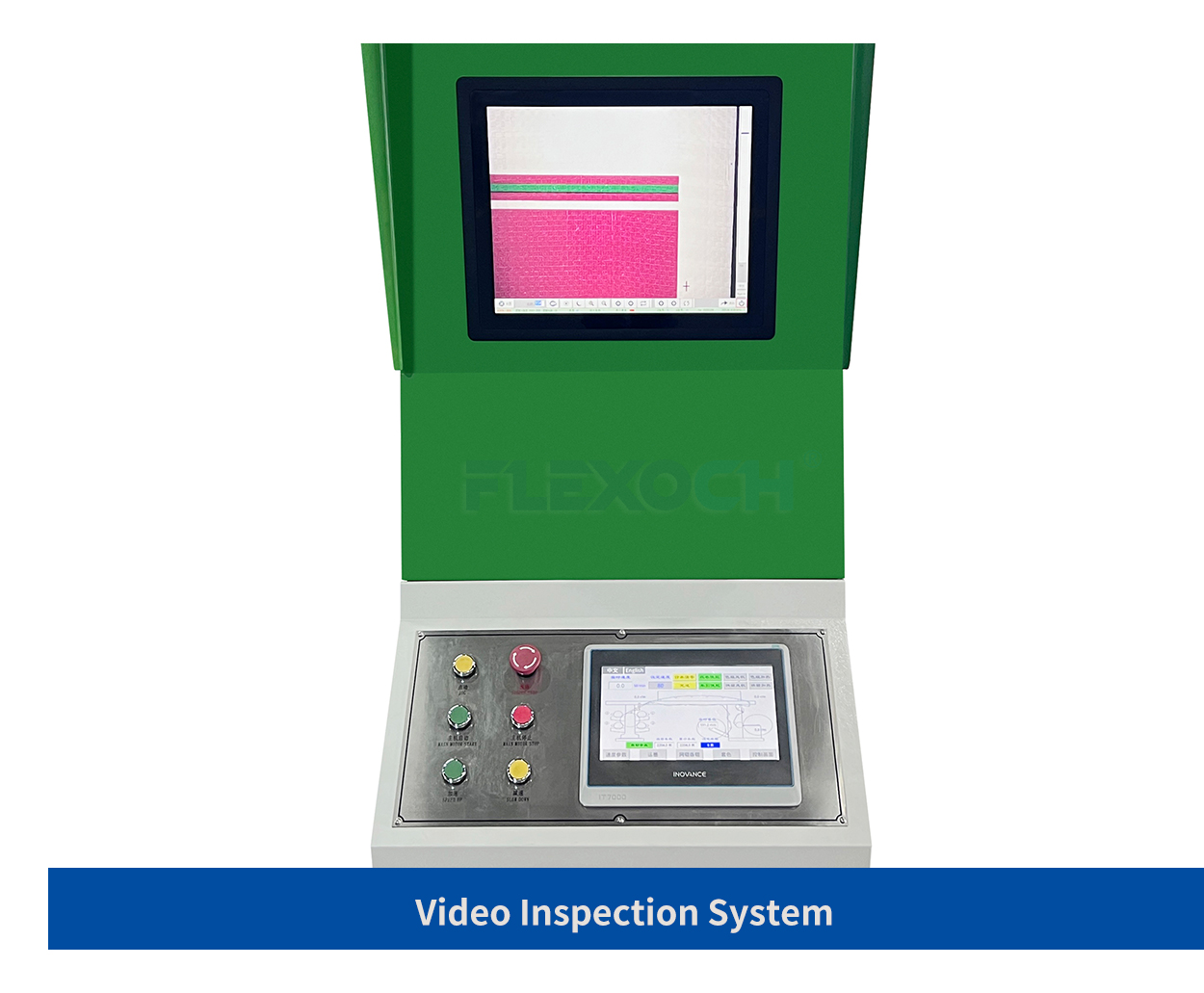

    Video Inspection System

    Printing Samples

    Paper Cup
    PP Woven Bag
    Paper Bowl
    Mask
    Paper Box

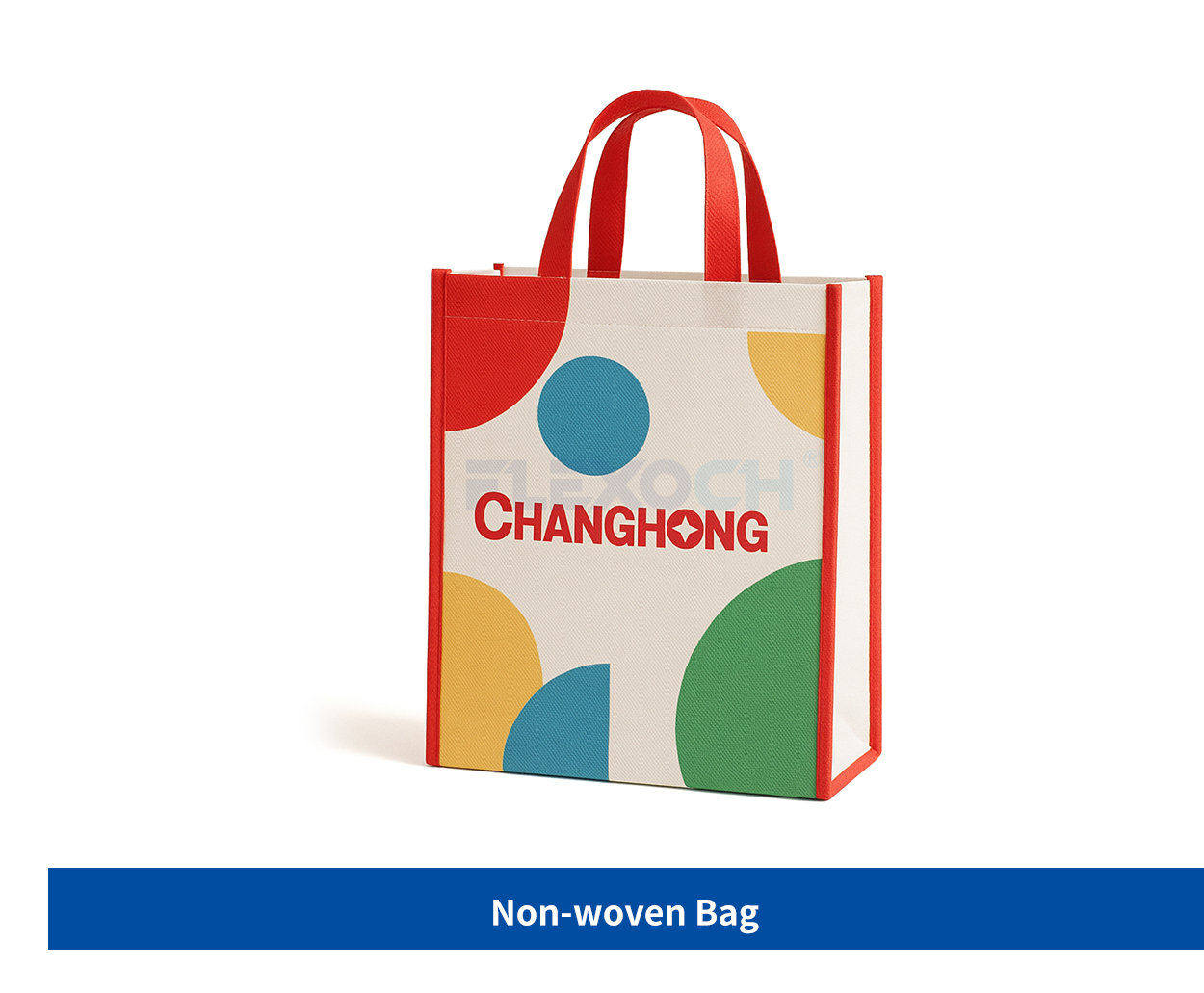

    Non-woven Bag

    Packaging And Delivery

    Packaging and Delivery_01
    Packaging and Delivery_03
    Packaging and Delivery_02
    Packaging and Delivery_04
