Flexographic and gravure printing are two dominant printing processes in the modern packaging industry, widely used for food, daily chemical, pharmaceutical, plastic film, label and industrial packaging. As consumer markets diversify, environmental regulations tighten, and packaging production evolves toward flexibility, eco-friendliness, intelligence and cost efficiency, the market adaptability of these two printing technologies has changed significantly.
The two processes have long coexisted and complemented each other, but differ greatly in working principles, plate making, production cost, print quality, environmental performance and application scenarios. Clarifying these differences and the latest flexographic printing trends helps packaging factories optimize equipment configuration, adapt to diverse orders and boost competitiveness. This article compares the two processes and analyzes the development trends of modern flexographic printing machines.
1. Basic Principles and Core Differences
Working principles directly determine the performance limits and application scope of each printing technology.
Flexographic printing is a flexible relief printing technology using soft resin plates and precision anilox rollers for stable, quantitative ink transfer. Only raised plate areas carry ink to print patterns on substrates. Thanks to flexible plate materials and light printing pressure, flexo printing fits nearly all substrate types without causing material damage, delivering outstanding flexibility and adaptability.
Gravure printing is an intaglio process relying on precision engraved metal cylinders. Recessed cells of varying depths on the cylinder store ink, while a doctor blade removes excess surface ink. The residual ink in concave cells transfers to substrates, forming thick, uniform ink layers with rich colors and delicate gradients for high-precision, high-quality printing results.
In short, flexo printing features high flexibility, production efficiency and environmental protection, while gravure printing delivers superior definition and color layering. With continuous upgrades in modern flexographic printing machine, the traditional quality gap between the two processes has narrowed greatly for commercial packaging applications.
2. Cost and Production Mode Differences
Production cost and order adaptability are core factors for process selection, with flexo and gravure printing adopting entirely different cost structures and production modes.
Gravure printing requires customized chrome-plated metal rollers with complex, time-consuming and costly plate making. Each roller only matches one fixed design. Frequent plate changes for modern small-batch, multi-style and fast-updating orders raise production costs and downtime sharply. Thus, gravure printing is only cost-effective for large-scale, long-term fixed orders.
Flexographic printing uses affordable resin plates with simple, fast plate making and low modification costs. Modern flexo printing machines support rapid plate changing and quick parameter adjustment, minimizing downtime. It perfectly adapts to current market demands for small batches, diverse styles, personalized customization and fast product iteration.
To sum up, flexo printing suits flexible, fast iterative production, while gravure printing is ideal for standardized, stable and large-scale mass production.
Flexographic printing uses affordable resin plates with simple, fast plate making and low modification costs. Modern flexo printing machines support rapid plate changing and quick parameter adjustment, minimizing downtime. It perfectly adapts to current market demands for small batches, diverse styles, personalized customization and fast product iteration.
To sum up, flexo printing suits flexible, fast iterative production, while gravure printing is ideal for standardized, stable and large-scale mass production.
3. Printing Quality and Market Positioning
Gravure printing has long dominated high-end packaging for its superior printing texture. However, continuous flexo technology upgrades have significantly narrowed the quality gap, forming a clear differentiated market pattern.
Gravure printing provides full ink layering, high color saturation and smooth gradient transitions without dot breaks, perfectly restoring delicate design details. It remains the top choice for luxury packaging, high-end cosmetics and premium food flexible packaging.
Traditional flexo printing suffered from rough dots and insufficient color hierarchy. Today, high-line anilox rollers, full-servo overprint systems, precise tension control and intelligent ink balance technology have greatly improved flexo printing accuracy, color restoration and dot fineness, meeting the quality standards of most commercial packaging products.
Flexo printing is widely applied to snack packaging, beverage labels, ordinary daily chemical packaging, woven bags and kraft paper packaging. Gravure printing is mainly used for high-end flexible packaging and luxury products requiring ultra-high printing quality.

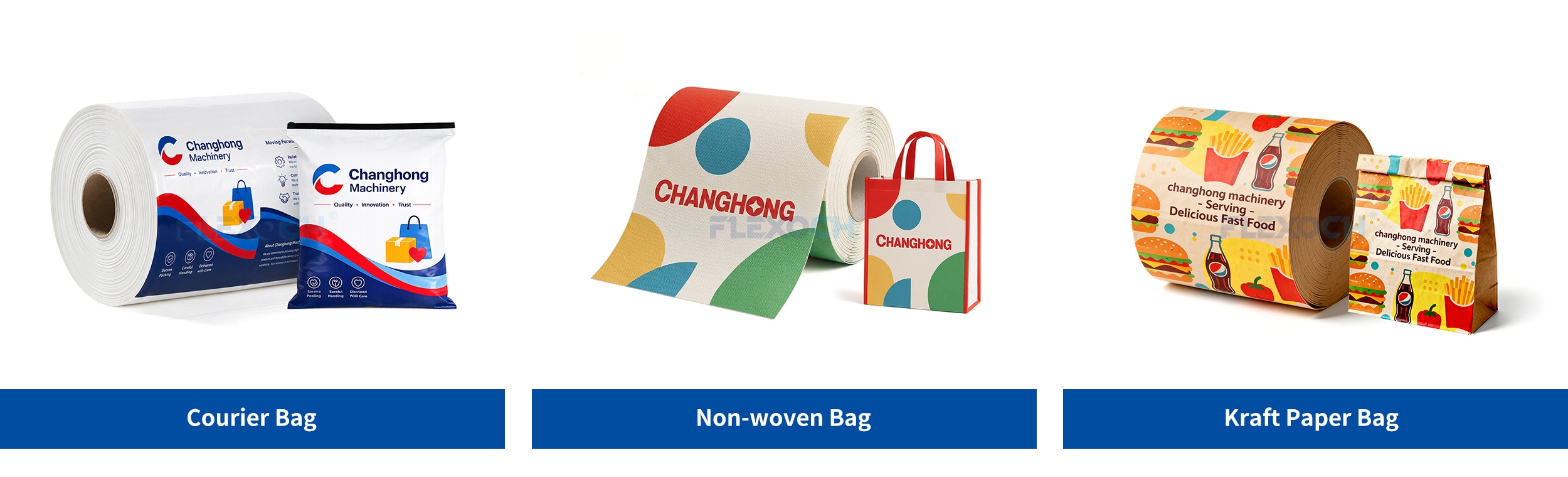

● Printing Samples
4. Environmental Performance Gap
With rising environmental standards and stricter food and pharmaceutical packaging safety regulations, environmental performance has become a key factor distinguishing flexo and gravure printing.
Flexographic printing is a recognized green printing process, adopting water-based and UV eco-friendly inks with water as the diluent. It produces extremely low VOC emissions with no benzene or solvent residue. The non-toxic, odorless and pollution-free production fully meets strict safety requirements for food, pharmaceutical and infant packaging.
Traditional gravure printing relies heavily on solvent-based inks, generating large amounts of VOC waste gas. Factories require high investment in exhaust treatment equipment and maintenance, bringing heavy environmental compliance pressure. Although water-based gravure ink is available, its stability and printing effect are limited, slowing the green transformation of gravure printing.
As environmental supervision becomes stricter, flexo printing’s green advantages stand out, making it the mainstream eco-friendly printing process supported by the market and policies.
5. Substrate Adaptability and Industry Coverage
Flexographic printing features superior substrate adaptability, compatible with almost all packaging materials including kraft paper, food-grade cardboard, coated paper, PE, BOPP, PET films, PP woven bags, self-adhesive labels and various composite materials. It covers civil, industrial and logistics packaging scenarios with high compatibility.
Gravure printing demands high flatness, uniform thickness and good toughness of substrates. It only adapts to high-grade plastic films and composite materials, and cannot work well on rough, special or thick substrates, limiting its industry application scope.
6. Core Development Trends of Modern Flexographic Printing
With the intelligent, green and high-end upgrading of the packaging industry, modern flexographic printing has abandoned its low-end positioning and become a core industry development direction, presenting four key trends.
6.1 Intelligent Full Servo Upgrade

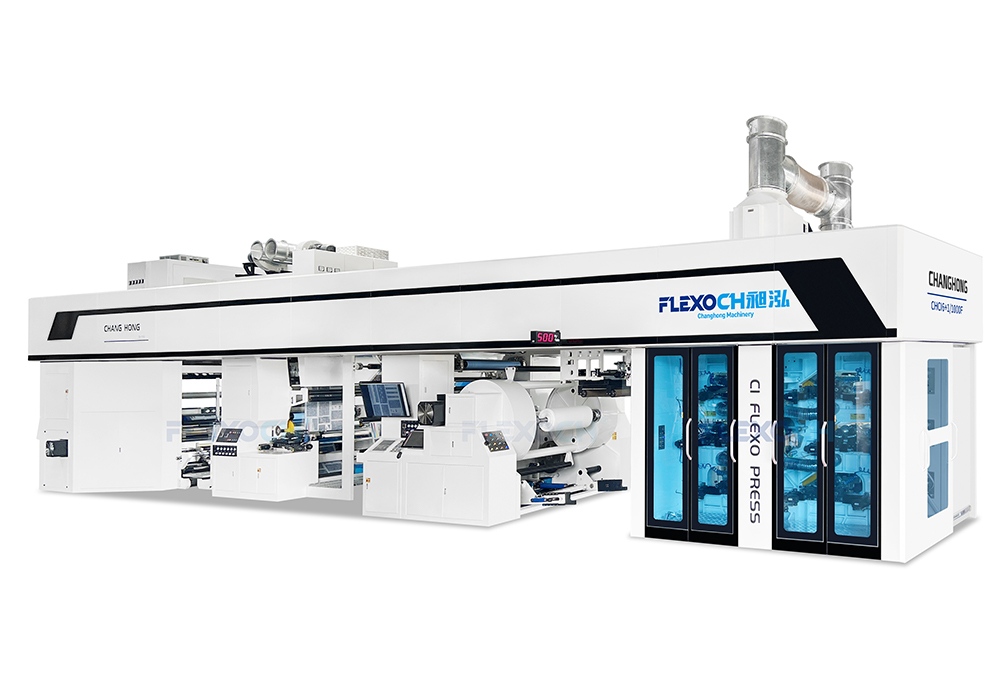

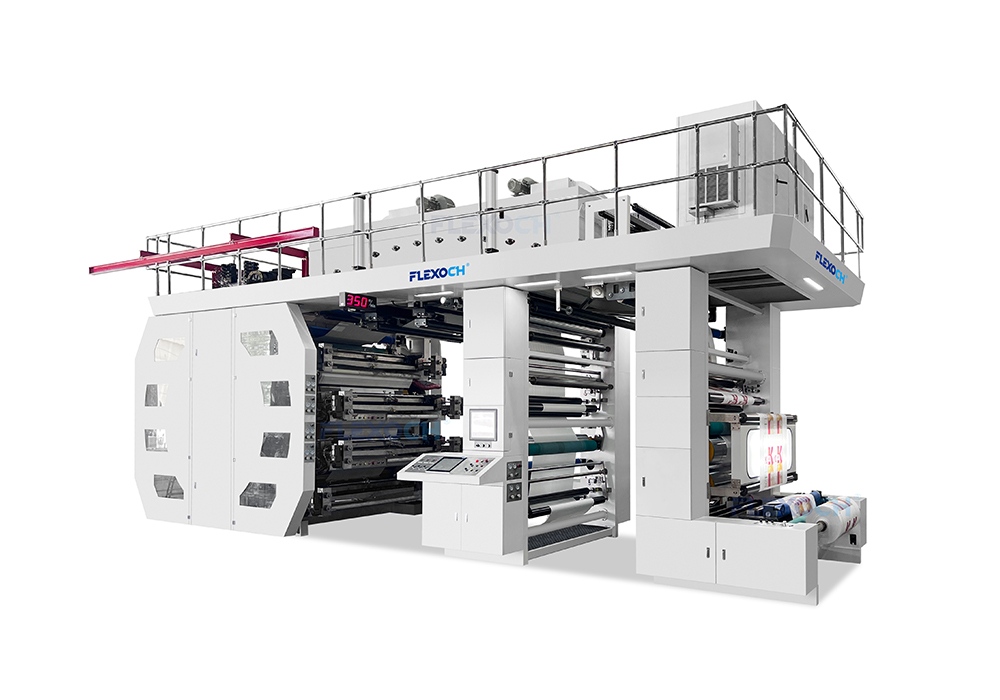

Modern flexo printing machines represented by our Gearless CI flexographic printing machines adopt full-servo drive, intelligent overprint control and closed-loop tension systems. These upgrades eliminate stretching and overprint deviation, improving printing accuracy and high-speed stability. Intelligent one-click parameter setting and fault early warning reduce manual operation and realize automated production.

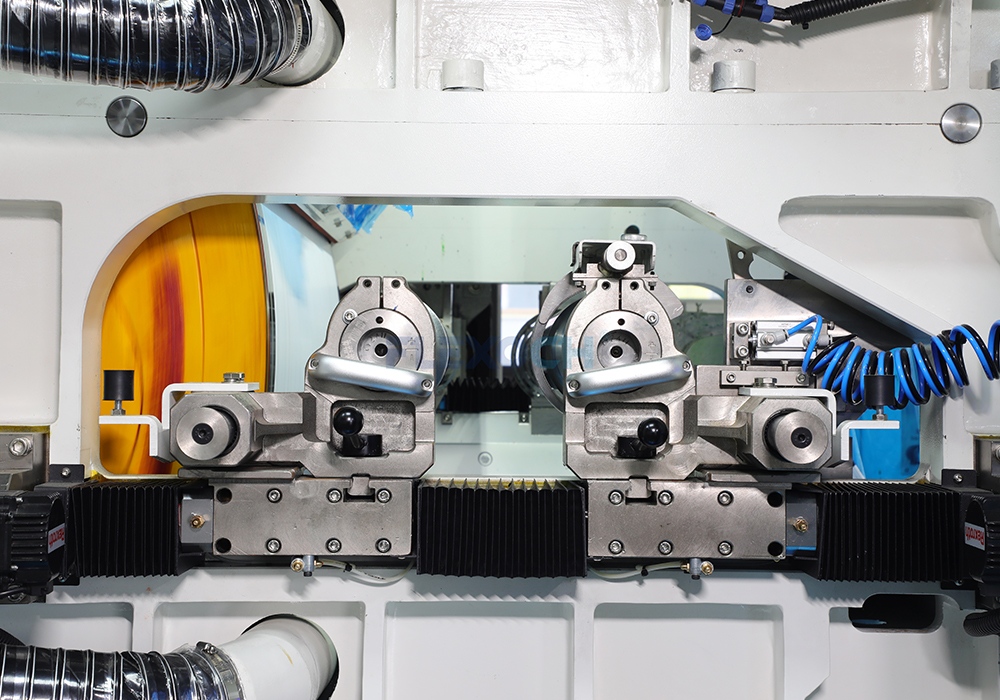

Pressure Adjustment

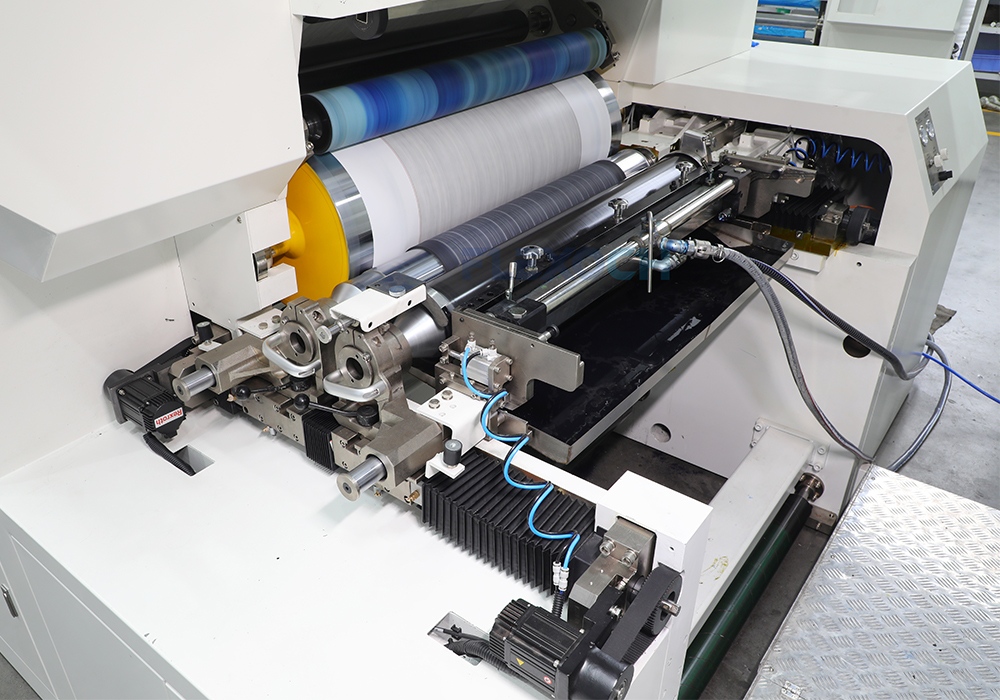

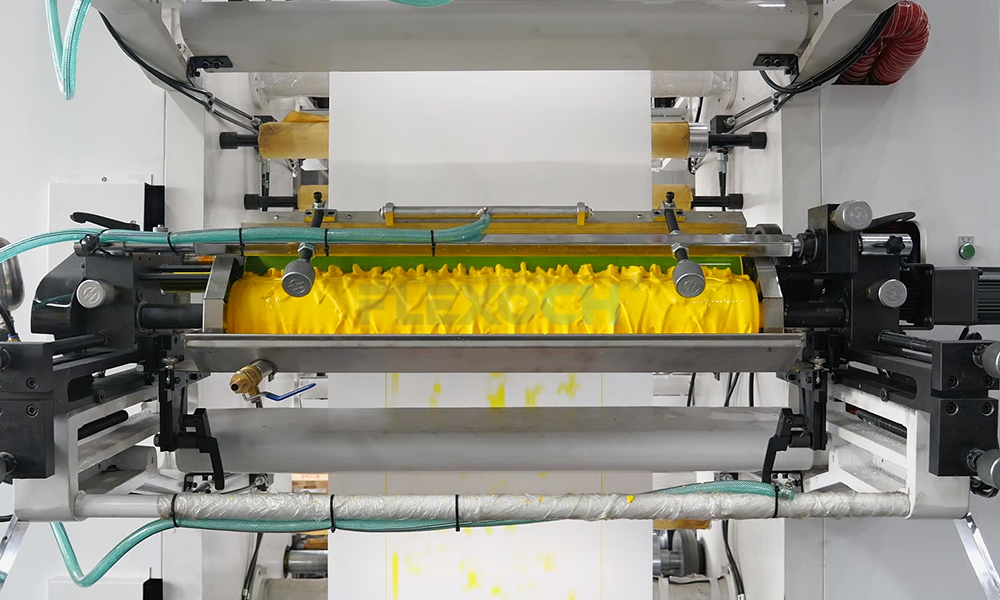

Printing Unit
6.2 In-depth Green Production Application
Supported by mature water-based and UV ink technology, flexo printing’s safe and pollution-free features help it penetrate high-standard fields including prefabricated food, maternal and infant goods and pharmaceutical packaging. Our CI and stack flexo printing machines support low-consumption green production, gradually replacing high-pollution gravure equipment in green packaging manufacturing.
6.3 Flexible Production Adapts to Fast Market Iteration

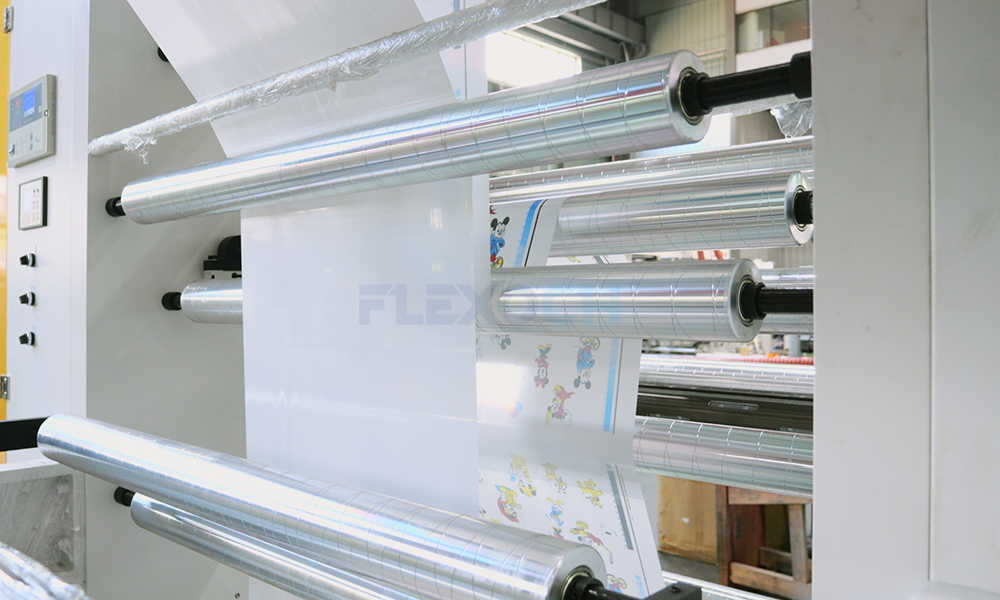

Targeting small-batch and personalized market demands, our stack type flexographic printing machines are optimized for fast plate loading, automatic cleaning and intelligent ink adjustment. They greatly shorten changeover time and efficiently support frequent new product launches and customized FMCG orders.
6.4 Automated and Intelligent Efficient Production
Modern flexo printing machine continues to upgrade toward full automation and intelligent operation. Our CI flexographic printing machine and stack type flexographic printing machine adopt integrated intelligent control systems, supporting automatic plate calibration, real-time tension adjustment, intelligent ink control and one-click parameter storage. These intelligent functions greatly reduce manual intervention, minimize human errors and ensure stable and consistent printing quality during mass production. The automated workflow effectively improves operational efficiency, lowers labor and maintenance costs, and brings better overall cost performance for packaging manufacturers.
6.4 Automated and Intelligent Efficient Production
Modern flexo printing machine continues to upgrade toward full automation and intelligent operation. Our CI flexographic printing machine and stack type flexographic printing machine adopt integrated intelligent control systems, supporting automatic plate calibration, real-time tension adjustment, intelligent ink control and one-click parameter storage. These intelligent functions greatly reduce manual intervention, minimize human errors and ensure stable and consistent printing quality during mass production. The automated workflow effectively improves operational efficiency, lowers labor and maintenance costs, and brings better overall cost performance for packaging manufacturers.
Conclusion
Flexographic and gravure printing will continue to coexist and complement each other in the packaging industry. Gravure printing retains advantages in high-end boutique packaging with superior printing texture, while flexographic printing fits mainstream industry trends with low cost, high flexibility, eco-friendliness and wide adaptability.
Driven by green manufacturing, flexible production and intelligent upgrading, modern flexo machine including Gearless CI flexo printing press and stack type flexo printing machine will achieve growing market penetration. It will become the mainstream core process of modern packaging printing, leading the industry toward high-efficiency, low-carbon and low-cost development.
