In the packaging printing industry, as we pursue better efficiency, environmental compliance and precision, CI (Central Impression) flexo printing presses have become essential equipment for plastic film and paper printing. Their unique structure and stable performance make this possible. They work well for high-volume tasks like food flexible packaging and paper, offering stable tension control, precise registration and wide substrate compatibility to meet different production needs. This article explains their working principles, technical advantages, application scenarios and selection criteria, showing why they are the top choice.
I. Core Principle: Engineering Logic of the Central Drum Structure
The key design of a CI flexo printing press is its shared central impression drum. All printing decks circle this large-diameter drum, and the substrate runs tightly against its surface for multi-color printing. This structure avoids tension fluctuations seen in traditional flexo machines, boosting print quality and production efficiency with a sturdy mechanical design.

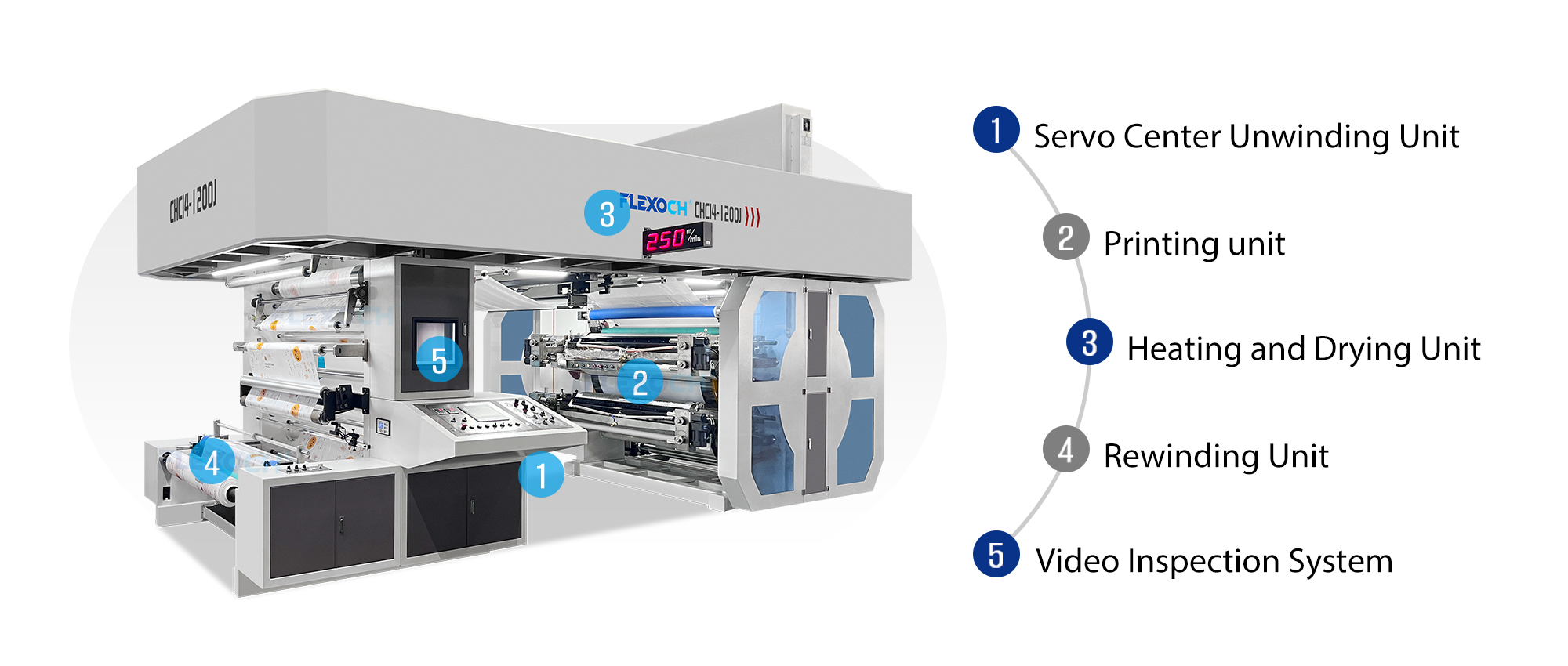

1.1 Core Structural Components

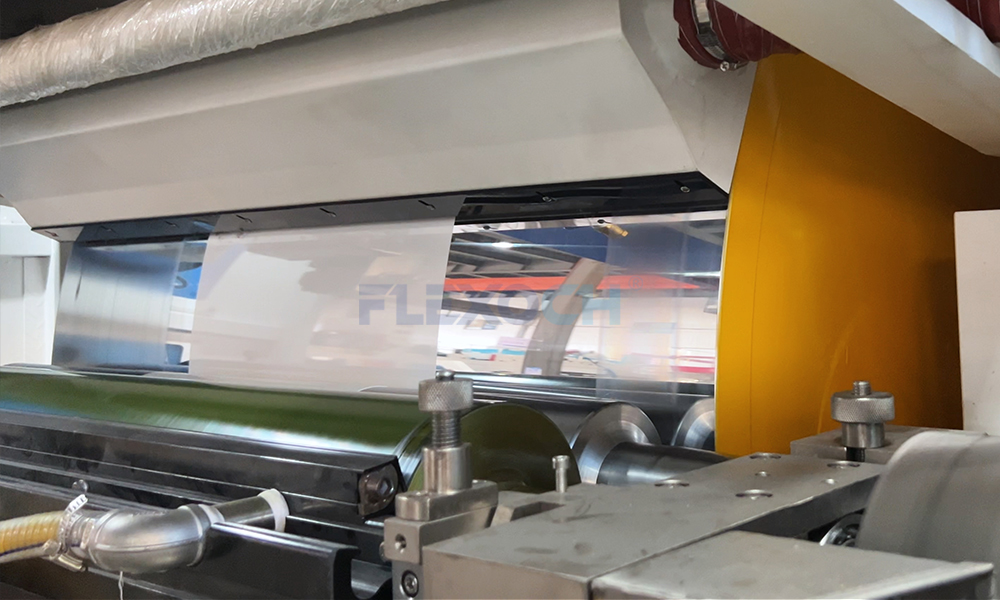

● Central Impression Drum: Built from high-grade alloy steel, it’s precision-machined and kept at a steady cool temperature. Radial runout stays extremely low, so the press holds steady at speed—key for tight color registration.

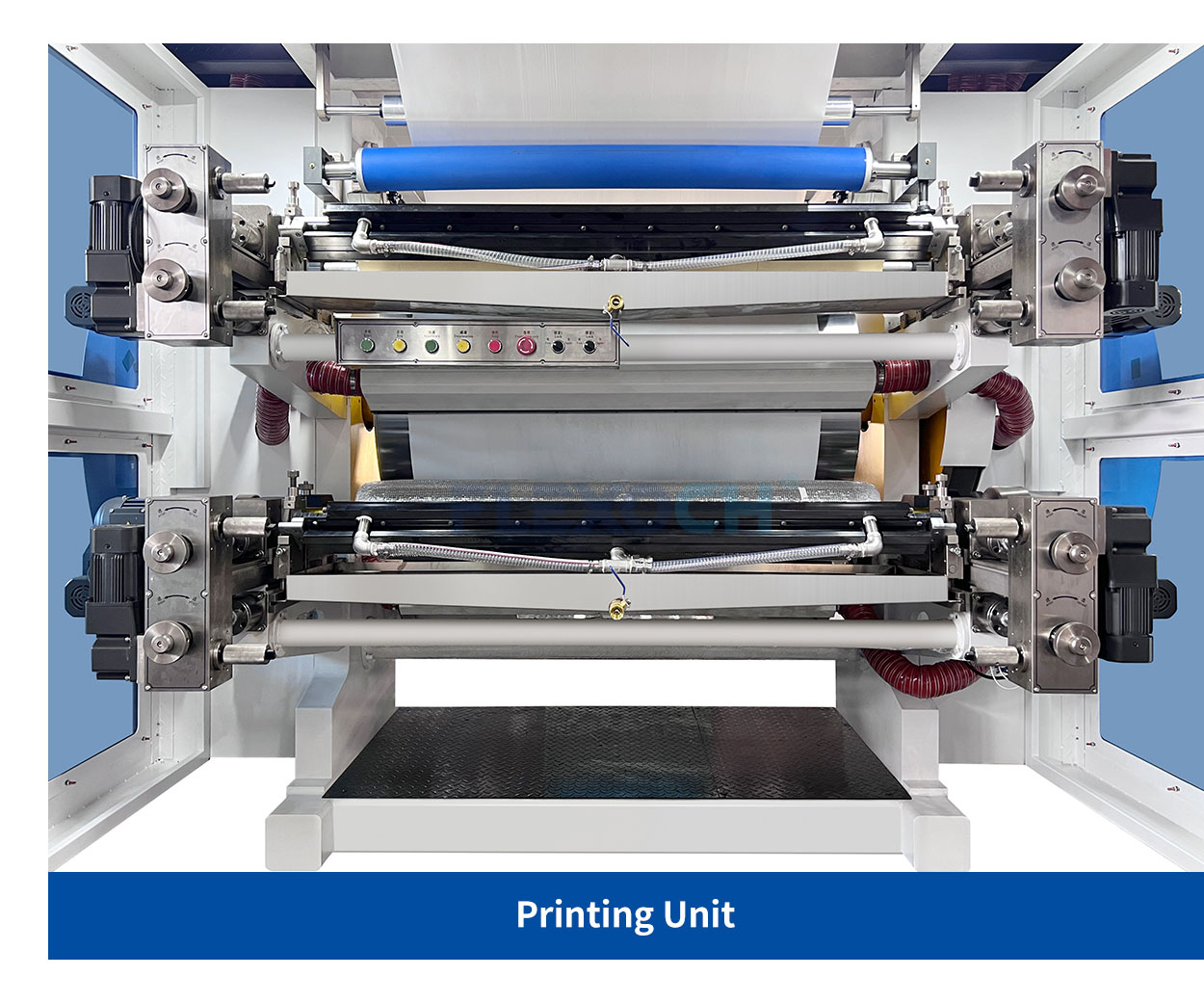

● Printing Units: Each station packs plate cylinders, ceramic anilox rolls, and enclosed doctor blades with a solid mechanical drive. The setup handles 4 to 10 colors, letting operators swap groups fast to meet different jobs.

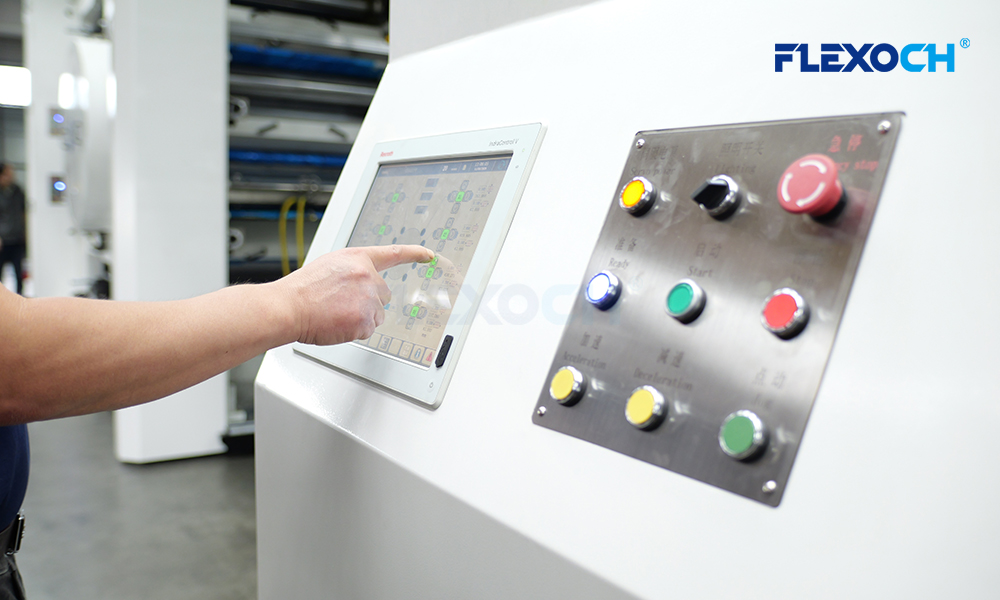

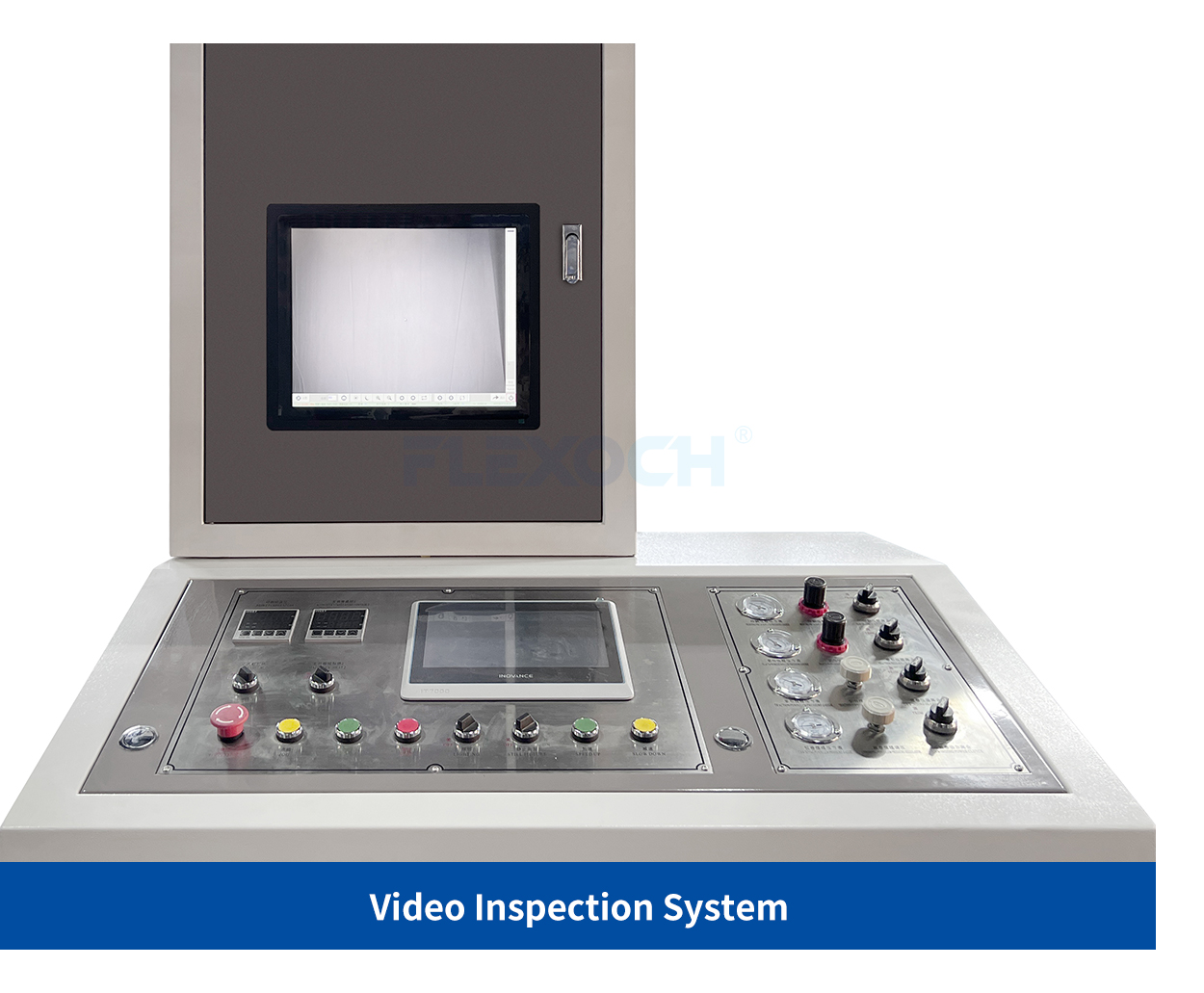

● Control System: The central impression flexo press runs on a no-nonsense mechanical linkage setup. Registration holds within ±0.1mm, and it’s straightforward to run. You’ll waste less stock while dialing it in.

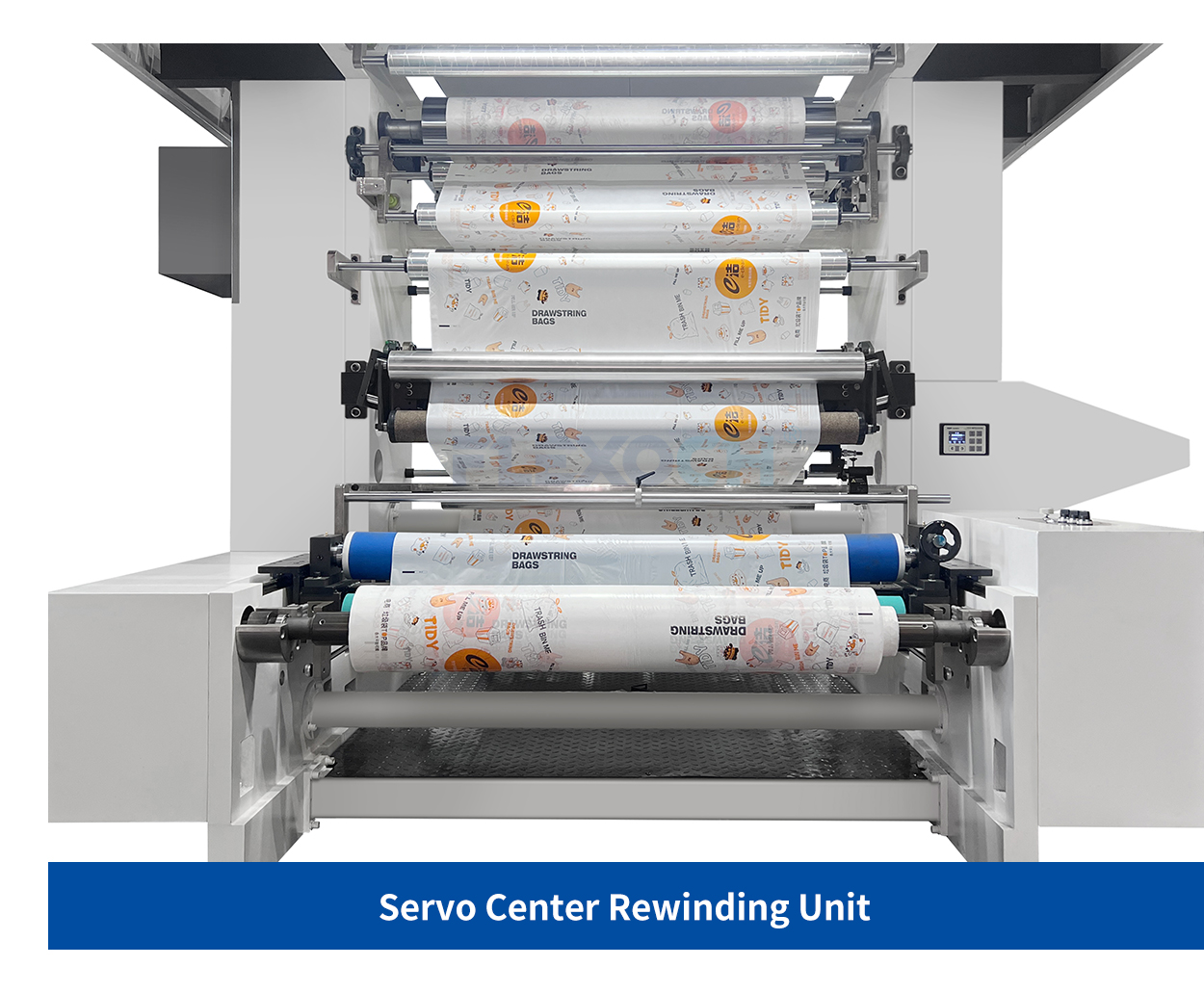

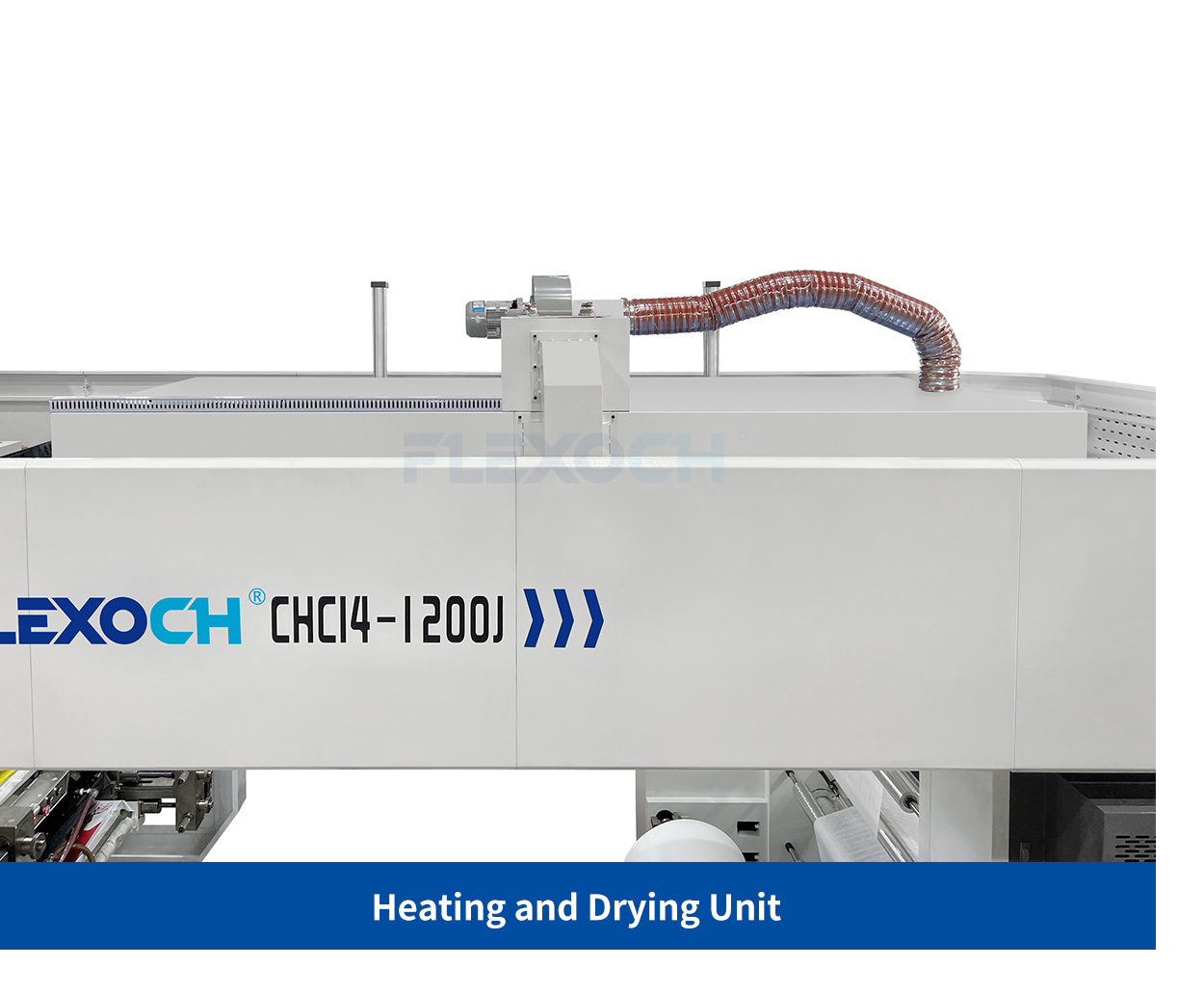

● Drying & Rewinding System: Separate dryers sit between stations and adapt to whatever stock you’re running. Ink sets fast without smearing, leaving you with clean, sharp output.

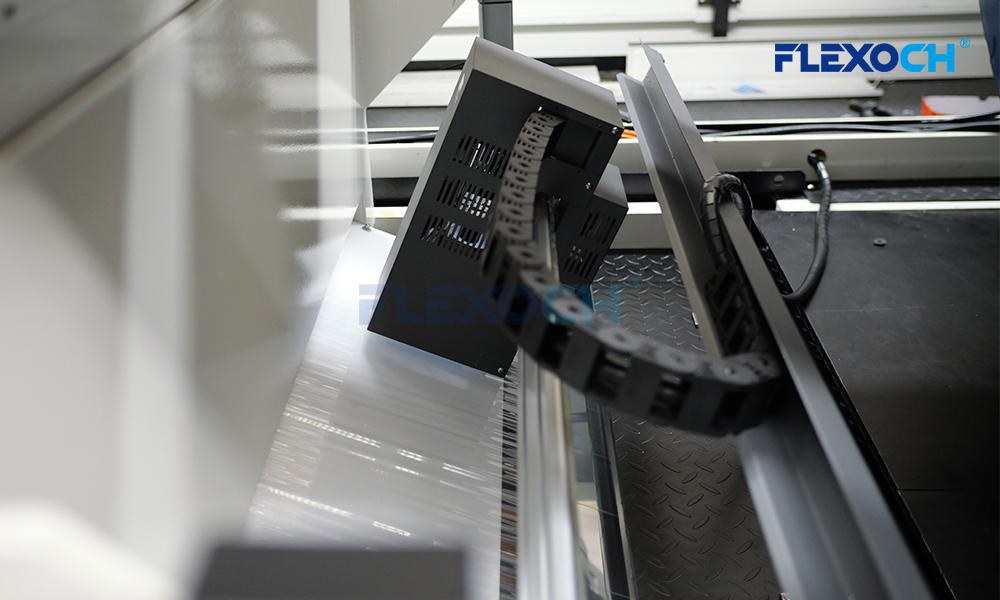

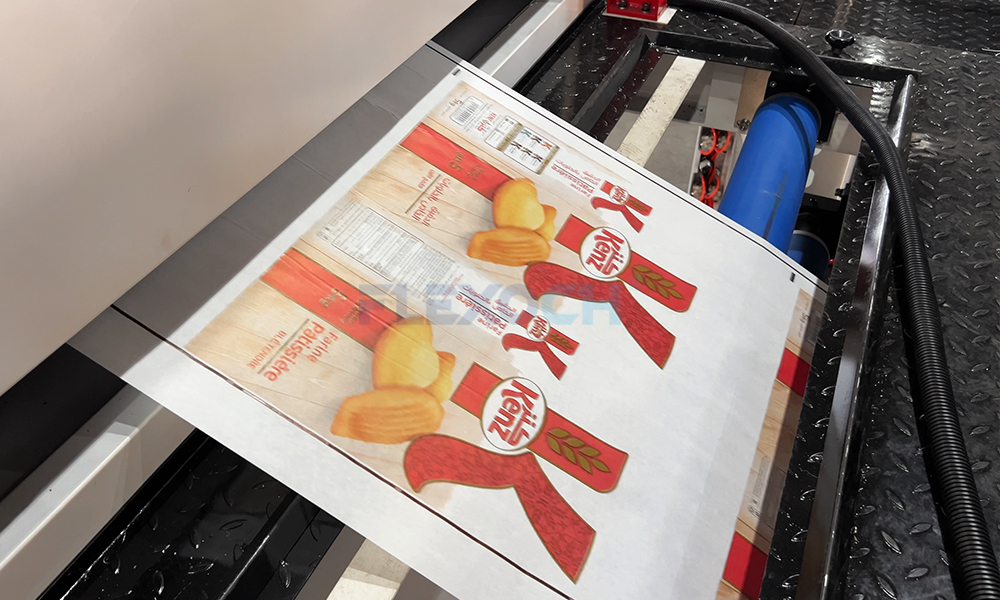

● Details Dispaly
1.2 Key Working Principle

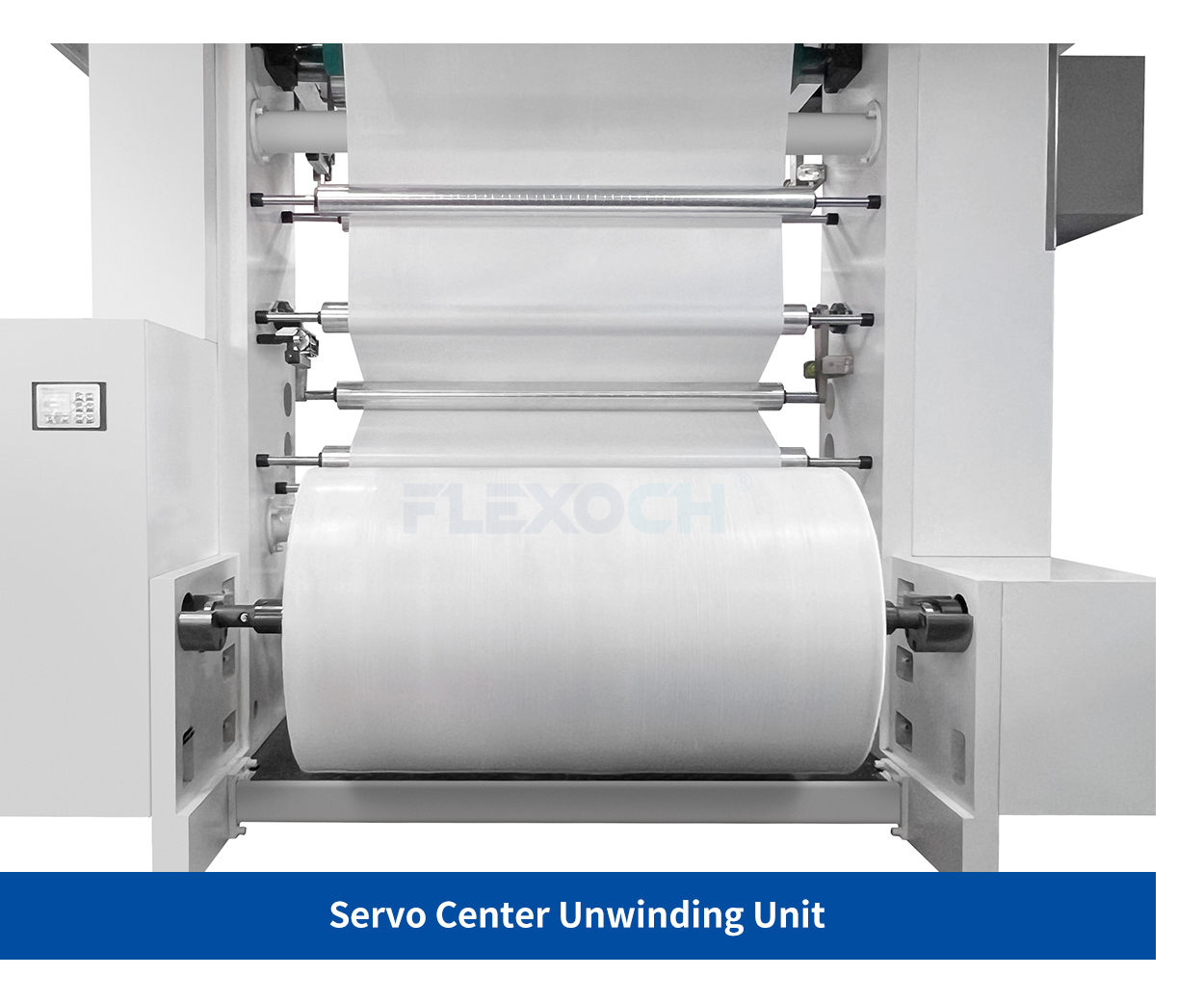

After entering from the unwinding unit, the substrate is closely wrapped around the central impression drum and moves along a single tension path. As it moves forward, it completes the ink transfer through each color deck in turn. This single-path design fundamentally eliminates the accumulated tension errors that often occur in multi-color printing, making it particularly suitable for plastic films with low modulus and papers that are easy to change in size. Eventually, it achieves high-precision mass production with consistent quality.
● Video Introduction
II. Technical Advantages: Core Competitiveness for Film and Paper Printing
2.1 High-Precision Registration: Solving Deformation Challenges
Plastic films stretch easily, and paper often expands or shrinks with humidity changes — common issues in printing. With single-drum reference control and precise mechanical transmission, the CI flexo printing machine maintains stable color registration accuracy of ±0.1mm, far better than traditional flexo machines. It effectively prevents registration drift, ensures consistent printed patterns, and meets standard mass production needs.
2.2 Multi-Substrate Compatibility: All-in-One Printing Platform
The CI flexo printing press has excellent compatibility with various substrates . Specific compatibility information is as follows:
|
Substrate Type |
Application Range |
Key Compatibility Benefits |
|
Plastic Film |
12–120μm (LDPE, HDPE, PP, etc.) |
Low-tension conveyance design effectively prevents film stretching and deformation during printing. |
|
Paper |
80–200g/m² (coated paper, kraft paper) |
Uniform and controllable printing pressure;compatible with water-based inks to meet food packaging non-toxic standards. |
|
Composite Substrates |
Aluminum foil, non-woven fabric, etc. |
Strong ink adhesion; supports in-line lamination, die-cutting and other post-press processes to realize integrated production. |
2.3 High Production Efficiency: Ideal for Bulk Orders
● High-Speed Printing: Max speed reaches 200–350m/min, lifting efficiency and helping makers deliver big orders on time.
● Precise Color Registration: Ensures sharp, consistent print quality across every run. Stable tension control minimizes material waste during production.
● Low Maintenance Cost: Simple build with long-life ceramic anilox rolls. Daily upkeep just needs regular cleaning and calibration.
2.4 Environmental Compliance: Aligned with Global Trends
CI flexo printing machine works with water-based and UV/LED inks, cutting VOC emissions way below solvent-based types. Water-based inks meet FDA rules and are safe for direct food packaging. The optimized drying system lowers energy use and controls material loss, meeting global green printing standards without extra smart energy controls.
III. Application Scenarios: Typical Uses of Flexo Printing Machine in Film and Paper Printing
3.1 Plastic Film Printing: Core Equipment for Flexible Packaging
Scenario 1: Food Flexible Packaging
It is very suitable for food-grade applications such as plastic food bags, dairy packaging and beverage labels. The stable tension control prevents the film from stretching and deforming during printing. The independent inter-station drying system ensures rapid ink curing and avoids ink smudging. With stable color registration accuracy of ±0.1mm, it can print clear patterns and uniform colors, fully complying with the non-toxic regulations for food packaging. It is widely used in snack pouches, dairy outer films, beverage bottle labels, frozen food bags and other food-related packaging fields.
Scenario 2: Industrial Packaging Film
Wide-width models can meet the printing width requirements of various industrial packaging. The maximum printing speed can reach 300m/min, and the enclosed doctor blade system ensures uniform ink transfer. Whether it is large-color-block logos or text descriptions, it can be displayed clearly, which accurately meets the mass production needs of industrial logistics packaging, chemical product packaging and other industrial plastic packaging films.
● Printing Samples
3.2 Paper Printing: Preferred for Paper Packaging
Scenario 1: General Paper Packaging
The wide-format design supports large-scale paper packaging production, with stable color registration accuracy of ±0.1mm. The water-based inks are environmentally friendly, odorless and free of harmful residues, and the printed patterns are wear-resistant and non-fading. It is mainly suitable for common paper packaging such as kraft paper bags, cartons, paper bowls and paper cups. The printing effect is clear, which meets the requirements of food-grade paper packaging and can meet the mass production needs of daily packaging.
Scenario 2: Food-Grade Paper Packaging
It can be flexibly configured with 4–8 colors, which can meet the complex pattern printing needs of food paper packaging. The low-pressure printing method avoids paper damage, and the high-speed printing is suitable for scenarios such as ice cream sleeves, pizza boxes and food cartons. It can be optionally equipped with a slitting module to complete post-processing in one step, which greatly improves the production efficiency of food paper packaging and balances printing quality and operational convenience.
● Printing Samples
IV. Selection Criteria: Choosing the Right Equipment
4.1 Recommended Key Functional Configurations

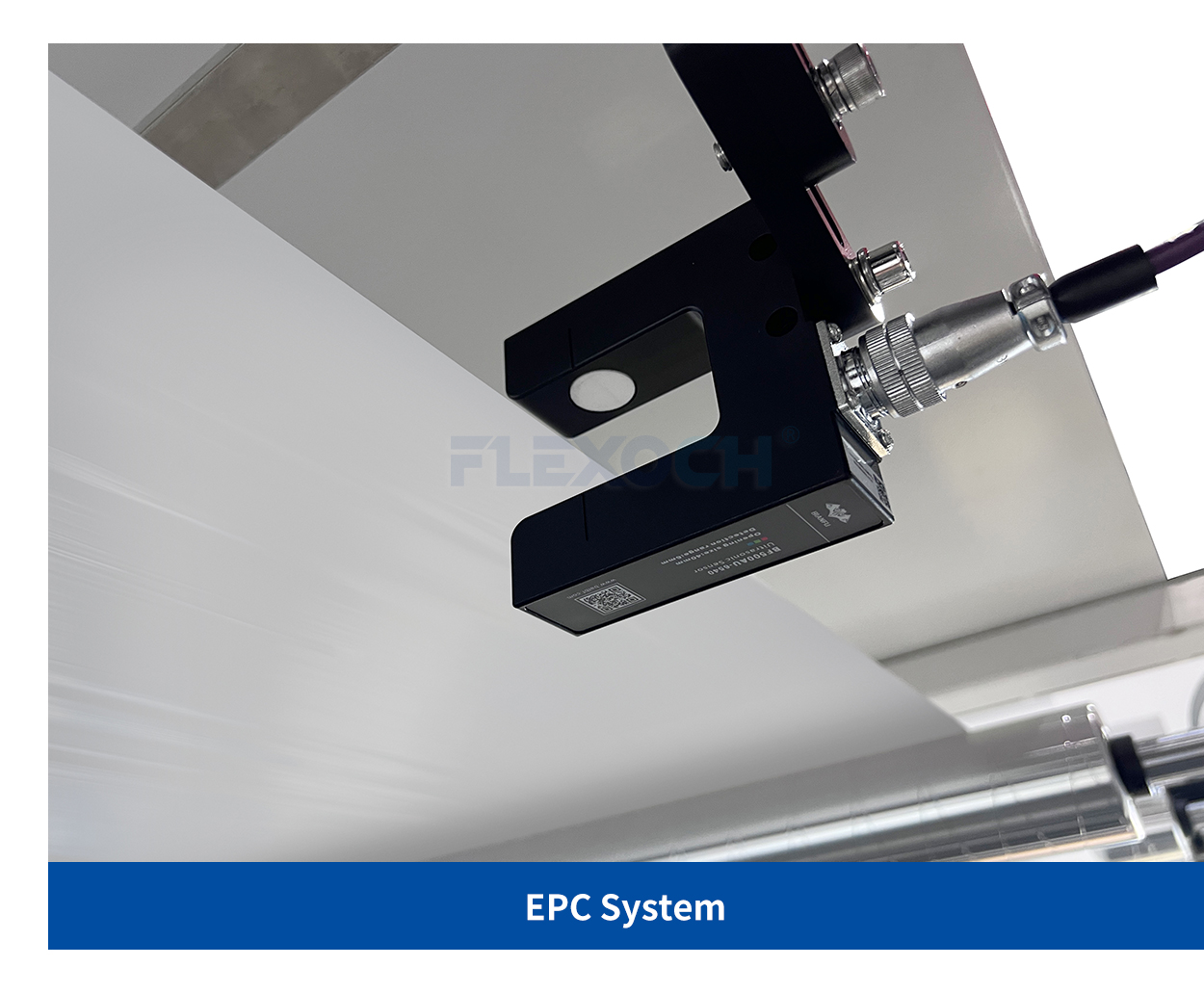

When selecting a press, manufacturers should focus on core functions suitable for film and paper printing based on their production needs. Changhong flexographic printing machines come standard with enclosed doctor blade systems, independent inter-station dryers (reducing ink waste and smudging) and static image web guides (correcting substrate deviation to ensure stable registration and reduce material loss). Additionally, manufacturers should consider low-tension conveyance (to prevent substrate deformation) and support for in-line post-press processes (e.g., lamination, die-cutting) for integrated production and lower process costs.
4.2 Brand and After-Sales Support
Choosing a brand with rich experience is key to stable equipment operation. Changhong, integrating R&D, manufacturing, sales and service, focuses on CI flexo presses, creating cost-effective equipment with mature technology. Each press undergoes strict testing, passes CE and ISO9001 certifications, and is exported globally.
V. Conclusion
High-performance central impression flexographic printing presses combine a robust and reliable mechanical structure, stable registration performance (±0.1mm), versatile substrate compatibility and eco-friendly high-efficiency production, making them a cost-effective choice for various conventional mass printing needs in plastic film and paper packaging.Selecting the right model supported by a trusted brand and dependable after-sales service improves productivity, guarantees print quality and reduces long-term operating costs.Changhong flexo remains committed to technological innovation, providing cost-effective equipment and premium services to help every customer achieve efficient production and steady growth.
