In the modern flexible packaging printing industry, food, beverage, daily chemical and pharmaceutical packaging demand increasingly sophisticated graphic quality. Against this backdrop, register precision and long-term operational stability have become core competitive edges for flexo presses. Two hallmark technologies defining premium printing equipment are ±0.05mm register accuracy and gearless flexo printing machines powered by full servo drives.
This article starts with fundamental concepts to elaborate on the definition of ±0.05mm register accuracy, alongside the technical principles and core strengths of gearless CI flexo printing machines.
1. What Is ±0.05mm Register Accuracy In Practical Printing?
Three common register tiers exist across the flexo industry:
● ±0.1mm: Widely used standard for general commodity packaging
● ±0.05mm: Precision benchmark exclusive to premium gearless flexo printing machine
● ≤±0.05mm: Required for high-end branded food wraps, beverage labels, medical packaging and premium flexible films, where even tiny misalignment ruins product appearance
Maintaining stable ±0.05mm tolerance nonstop is never down to one single mechanical part. It relies on full coordination between four core machine systems: full-servo drives for digital sync, closed-loop feedback to fix errors instantly, high-precision tension modules to hold flat substrate travel, and electronic register controllers that offset position shifts while running.
Only when these systems work together seamlessly can flexo machines hold micron-level accuracy even at full production speed.
Maintaining stable ±0.05mm tolerance nonstop is never down to one single mechanical part. It relies on full coordination between four core machine systems: full-servo drives for digital sync, closed-loop feedback to fix errors instantly, high-precision tension modules to hold flat substrate travel, and electronic register controllers that offset position shifts while running.
Only when these systems work together seamlessly can flexo machines hold micron-level accuracy even at full production speed.
2. Why Choose a Gearless CI Flexo Printing Machine?
Gearless CI flexo printing machines eliminate the mechanical gear train and use an independent servo motor for each printing unit. Electronic line shaft technology replaces physical gear meshing with digital phase synchronization across all color stations, removing the inherent limitations of mechanical transmission.
Conventional gear-driven units lose precision over time. Backlash between gear teeth and gradual wear create growing register drift after weeks of heavy use. Gearless designs avoid this entirely: each print station runs on its own direct servo drive, with a central controller matching speed and position across all colors in real time.

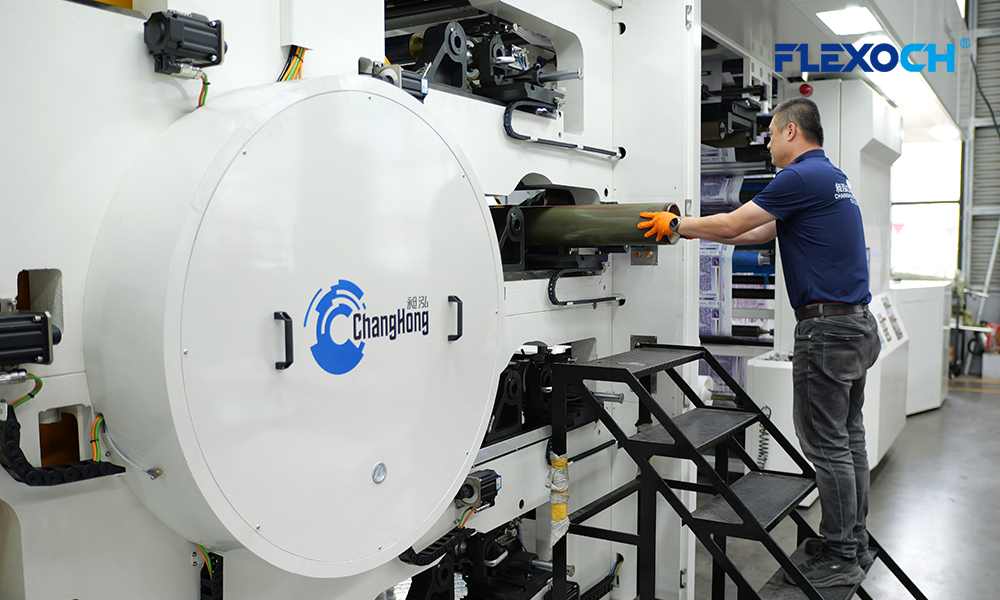

These machines are built around sleeve-based construction, including plate sleeves and anilox roller sleeves. A fixed central mandrel works with pneumatic quick-release lightweight sleeves, removing the need for matched drive gears. Most sleeves use carbon fiber to cut weight, simplify mounting and lock into exact positions every time. This solves old pain points: heavy solid rollers that take ages to swap, plus inconsistent positioning that creates register gaps. Lighter sleeves also reduce servo load, making the whole machine run smoother.
Pairing gearless servo drives with sleeve tooling brings clear operational gains:
● Consistent precision: No gear backlash to cause drift, plus repeatable sleeve positioning removes setup misalignment between runs
● Faster job changeovers: Sleeves can be prepped offline and swapped in minutes; saved digital process settings cut manual adjustment work drastically
● Wide material compatibility: One mandrel fits sleeves of different diameters, letting operators switch print repeat lengths without major rework
● Low vibration high-speed running: Less mechanical contact means smoother motion at faster line speeds
● Reliable repeat orders: All sleeve and print parameters save to the machine’s memory. Old jobs load with one click to keep print quality uniform batch after batch
3. How Gearless Layout Delivers Stable ±0.05mm Register Control

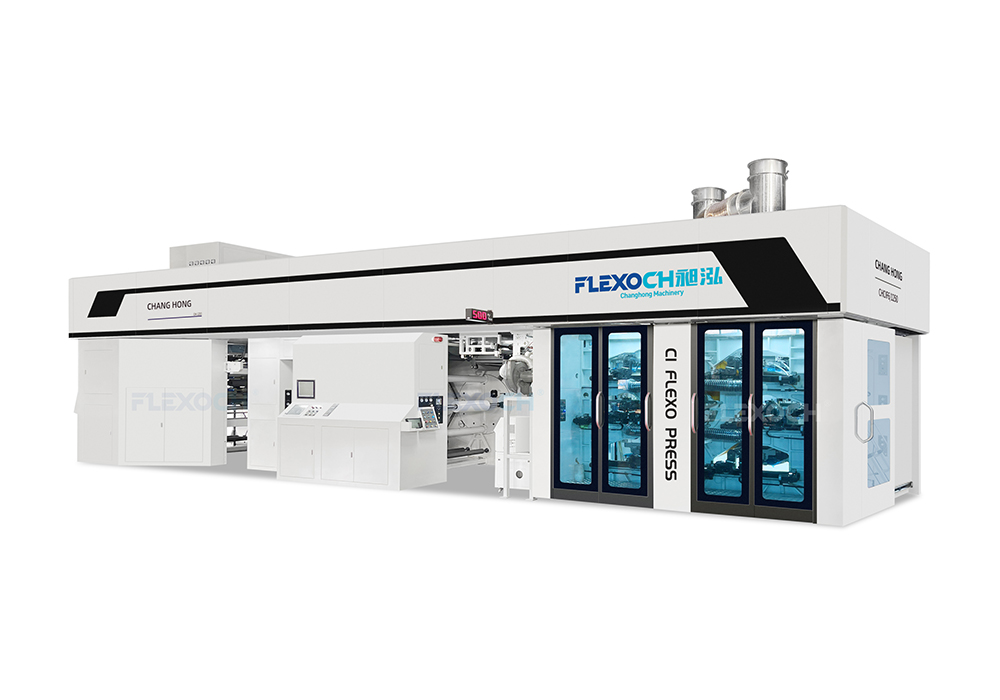

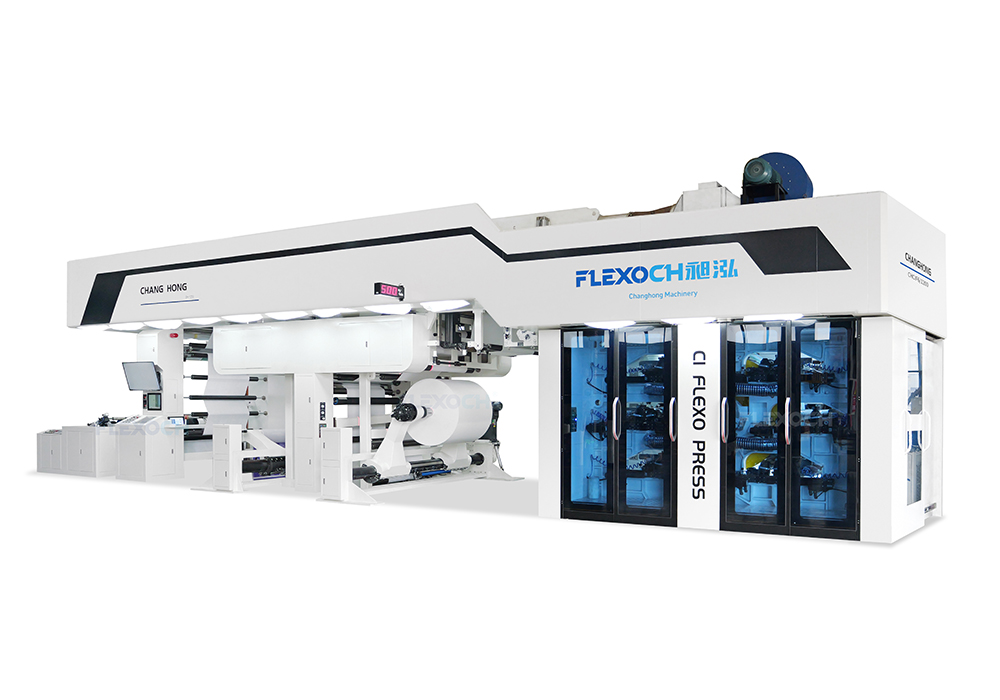

The outstanding register performance of a Central Impression flexo printing machine comes from its full-servo electronic line shaft control system.
Every print color station runs on its own servo motor, coordinated by a central master controller that locks all units to identical phase timing. As film stretches or shifts slightly during high-speed runs, optical sensors scan register marks nonstop. The system instantly adjusts each station’s position to cancel out tiny offsets before they show on finished goods.
Complementing this, a dedicated tension control system holds consistent web tension through unwinding, printing and rewinding stages. It stops slack or stretched substrate from pulling colors out of alignment.
An EPC edge guiding system runs alongside the print path, tracking the web’s edge to keep material centered. This eliminates lateral drift at the source, cutting another major cause of register error.
Combined, sensor feedback, servo correction, steady tension and edge guiding form a full closed-loop control cycle. This whole setup lets Gearless CI flexo printing machine hold tight register tolerance even during long hours of continuous high-speed printing.

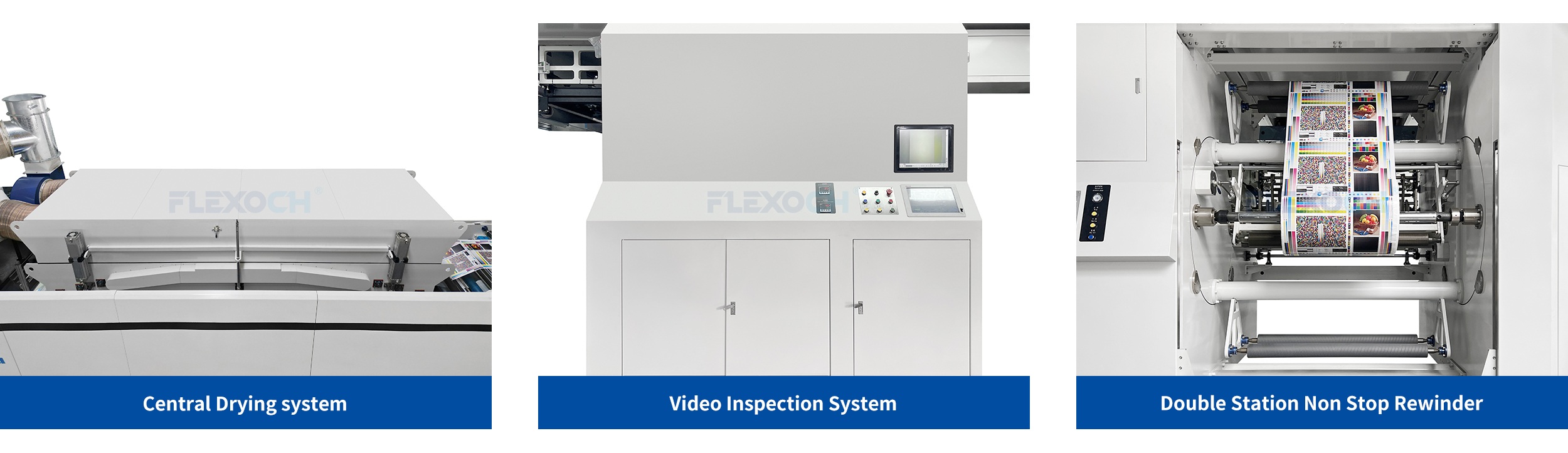

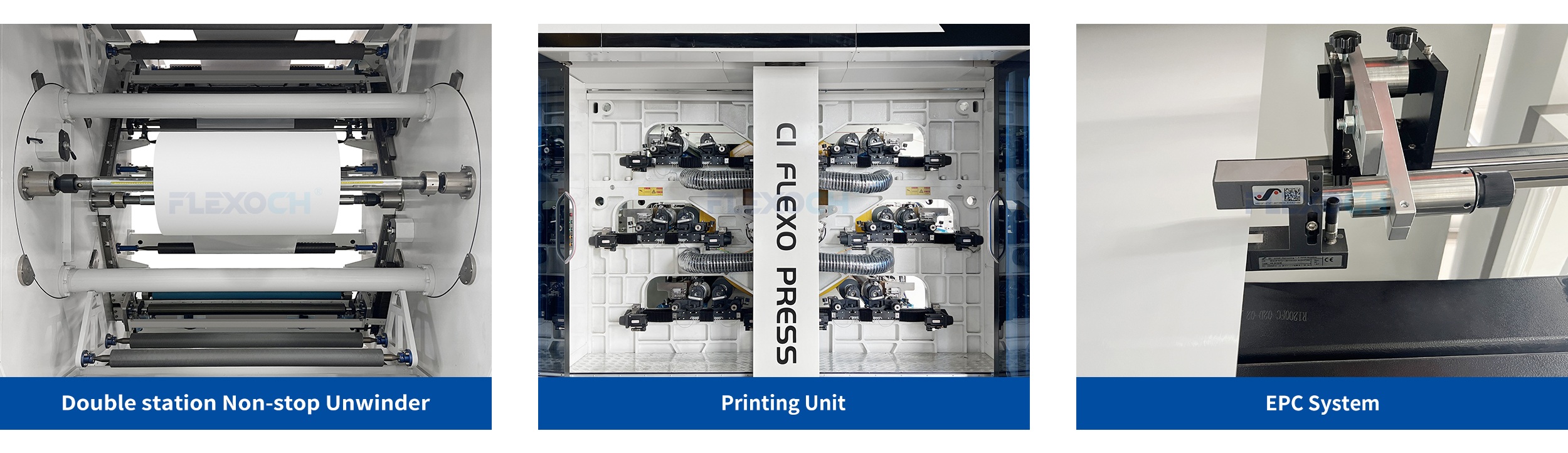

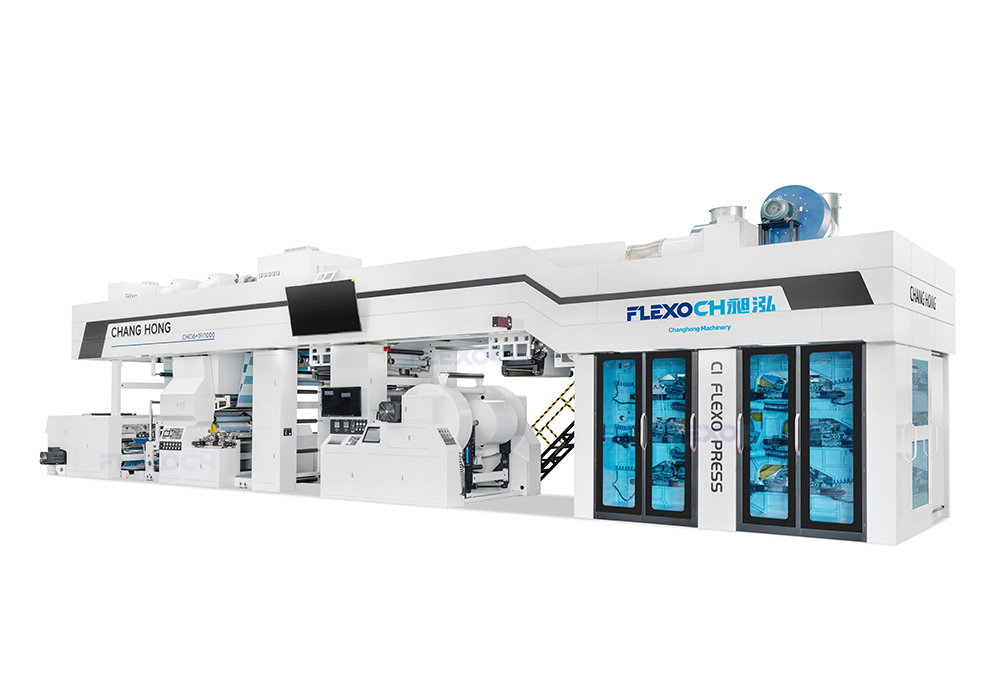

● Detail Image
4. Core Technical Logic of Full-Servo Gearless Flexo Printing Presses
Technically speaking, gearless flexo printing machines represent far more than simply removing drive gears — they mark a full digital overhaul of the entire machine control framework.

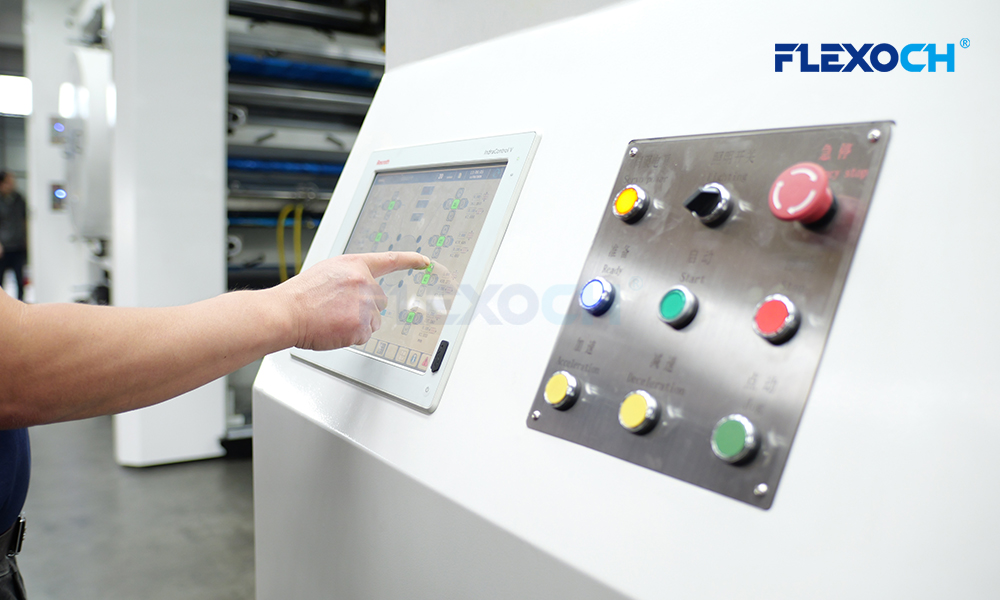

Conventional flexo printing presses depend entirely on mechanical assemblies to sustain synchronization. Gearless servo systems, by contrast, rely on advanced servo control algorithms and instant real-time feedback loops to achieve phase matching. This paradigm shift converts mechanical precision limitations into electronically controllable variables, breaking the accuracy ceiling imposed by traditional mechanical machining tolerances.
● Video Introduction
5. Real-World Industry Value & Application Scenarios
Gearless CI flexo printing machines capable of maintaining ±0.05mm register accuracy have become the preferred solution for premium flexible packaging production. Their combination of high-speed performance, stable print quality and intelligent automation makes them suitable for applications where consistent graphics and repeatable production are essential.
Typical application industries include:
● Food packaging: Snack pouches, frozen food packaging, confectionery wrappers, dairy packaging and ready-to-eat food films.
● Beverage packaging: Bottle labels, shrink sleeves, flexible beverage pouches and laminated packaging films.
● Pharmaceutical packaging: Blister packaging, pharmaceutical sachets, medical packaging films, drug labels and healthcare packaging materials requiring high printing precision
● Personal care packaging: Flexible packaging for cosmetics, toiletries, wet wipes, tissue products and hygiene products.
Across these industries, manufacturers are expected to deliver high production efficiency while maintaining consistent print quality from the first roll to the last. Stable register accuracy helps reduce material waste, minimize color variation, shorten setup time and ensure every package meets strict brand and quality standards.
● Printing Samples
6. Changhong’s R&D Experience & Unique Strengths In full-servo Gearless Flexo Printing
Changhong Flexo Printing Machinery has focused on upgrading full-servo and gearless transmission technology for years, developing complete printing solutions for flexible packaging factories chasing higher precision, stability and production efficiency.

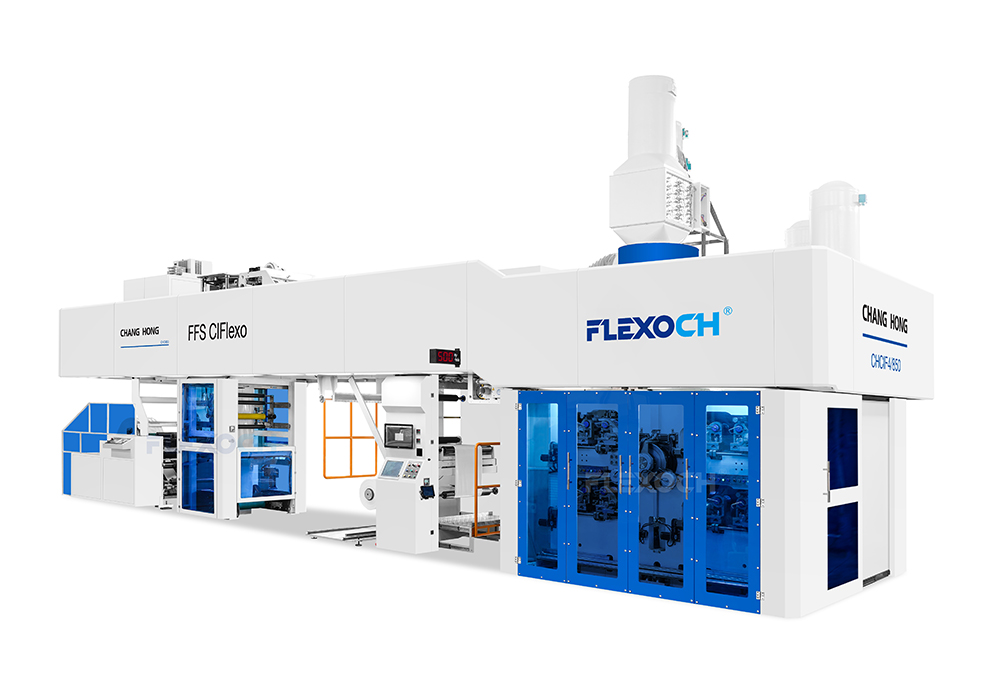

● Independent Servo Electronic Line Shaft Frame
We equip every color station with its separate servo drive system, fully removing gear backlash and cumulative alignment drift common on traditional presses. High-response servo hardware delivers instant cross-color sync and dynamic position compensation, forming the base for reliable ±0.05mm register output shift after shift.
● Full Closed-Loop Auxiliary Control Modules

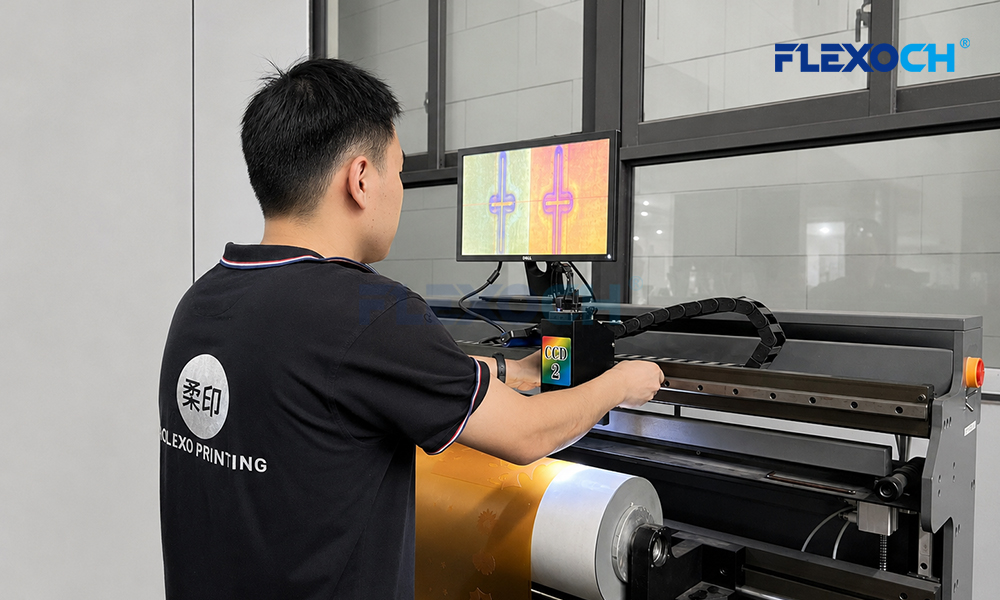

Every Changhong flexo unit comes with integrated closed-loop tension control and intelligent EPC web guiding. These modules stabilize web tension from unwinding all the way to rewinding, reducing register fluctuations caused by stretching or sideways material movement. Built-in high-sensitivity register mark sensors scan multi-color alignment points continuously and trigger automatic phase correction, keeping consistent print quality at maximum line speeds.
● Rigid, Low-Vibration Machine Structure
Our frames use heavy-duty precision-machined steel paired with full dynamic balance testing for all rotating parts. This cuts vibration during long nonstop runs and locks in repeatable print accuracy, making our presses well-suited for strict food, beverage and pharmaceutical production environments.
Conclusion
Stable ±0.05mm register tolerance marks a clear shift in flexo printing development: the industry has moved past mechanical-reliant equipment onto fully digital, closed-loop full-servo control systems. Gearless CI flexo printing machines balance fast line speeds and micron-level print precision through synchronized electronic line shaft control, real-time error correction, steady tension management and edge guiding. They have become a critical upgrade for high-end flexible packaging manufacturers worldwide.
Changhong Flexo keeps refining gearless full-servo flexo technology, with consistent upgrades to machine stability, print precision and automation levels. We supply dependable full printing solutions tailored to strict quality demands from food, beverage and pharmaceutical packaging factories across global markets.
Moving forward, rising demand for premium print quality and streamlined changeover workflows will push gearless full-servo flexo printing presses to become mainstream production equipment. This shift will drive the whole flexo printing industry toward tighter register tolerance and higher automation standards.
