In printing sectors including flexible packaging, labels and folding cartons, the Central Impression (CI) Flexo Printing Machine stands as core equipment for mid-to-high-end printing production, thanks to its high-precision overprinting, wide-web compatibility and high-speed operation capabilities. Nevertheless, full equipment performance does not depend on its nominal speed, but on overall operational efficiency, namely Overall Equipment Effectiveness (OEE).
As a professional flexo printing machine manufacturer, Changhong explores systematic approaches to boost CI Flexo printing machine production efficiency from key dimensions: minimizing downtime, optimizing tension & registration performance, upgrading drying and curing systems, and strengthening equipment maintenance. Additional efficiency-boosting measures such as automation upgrade and standardized operation are also covered.
1. Reduce Downtime and Setup Waste
1.1 Shorten Job-Change & Setup Time
Job change-over is the most frequent downtime scenario for CI Flexo printing machine . Conventional manual job-change workflows involve plate mounting, anilox roller replacement, ink preparation, pressure adjustment and registration calibration, which may take 30-60 minutes per change. The key to cutting this duration lies in adopting the SMED (Single-Minute Exchange of Die) philosophy:
-Automatic ink supply system: Deploy central ink supply or machine-mounted automatic ink supply systems for automatic ink delivery, circulation and cleaning, cutting manual ink mixing and cleaning time.
-Job recipe storage: Save proven printing parameters (pressure, tension, temperature, speed, etc.) as digital recipes. Directly recall stored recipes for new jobs to drastically reduce trial-print runs.
1.2 Achieve Non-Stop Reel Change
Raw material reel change is another major source of production halt. Equip the machine with dual-station non-stop unwinding and rewinding systems to complete automatic splicing between old and new material rolls during running, reducing reel-change downtime to zero. For high-speed CI Flexo Printing Press, this modification usually delivers a short return on investment.
1.3 Lower Setup Reject Rat
Defective outputs generated during setup waste substrates and ink, and prolong the lead-time to qualified production. Features including pre-registration of the automatic registration system, automatic pressure control and CCD inline inspection can cut setup waste by over 50%.
● Video Introduction
2. Optimize Tension and Registration System to Minimize Failures
Tension control and registration accuracy are core technical indicators of CI flexographic printing machine, and major causes of production interruption and defective prints.
2.1 Upgrade Automatic Registration System
Registration deviation is the most common quality defect in flexographic printing. Modern CI Flexo printing machine are widely fitted with automatic registration systems, which detect registration marks of each color station and perform real-time correction. Key upgrade points are as follows:
-Scanner resolution & response speed: High-resolution scanners identify finer registration marks, while control systems with faster response enable real-time correction at high running speeds.
-Independent longitudinal & transverse correction: Support correction in both machine direction (MD) and cross-machine direction (CD).
-Pre-registration function: Automatically pre-position cylinder phases before startup to shorten transition time from machine start-up to qualified overprinting.
2.2 Optimize Guide Roller System
Parallelism, surface condition and rotational flexibility of guide rollers directly affect web running stability. Regularly inspect and calibrate guide roller parallelism, replace worn bearings, and apply low-friction surface treatment such as ceramic coating. These practices mitigate web wandering and vibration, and reduce downtime triggered by unstable web travel.

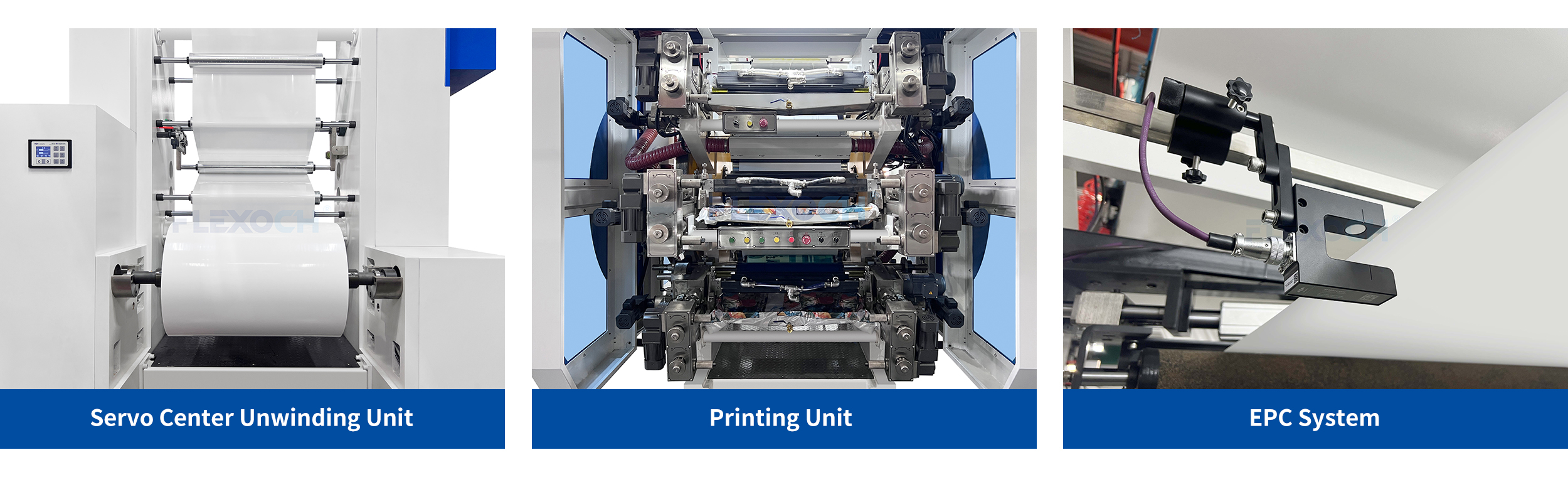

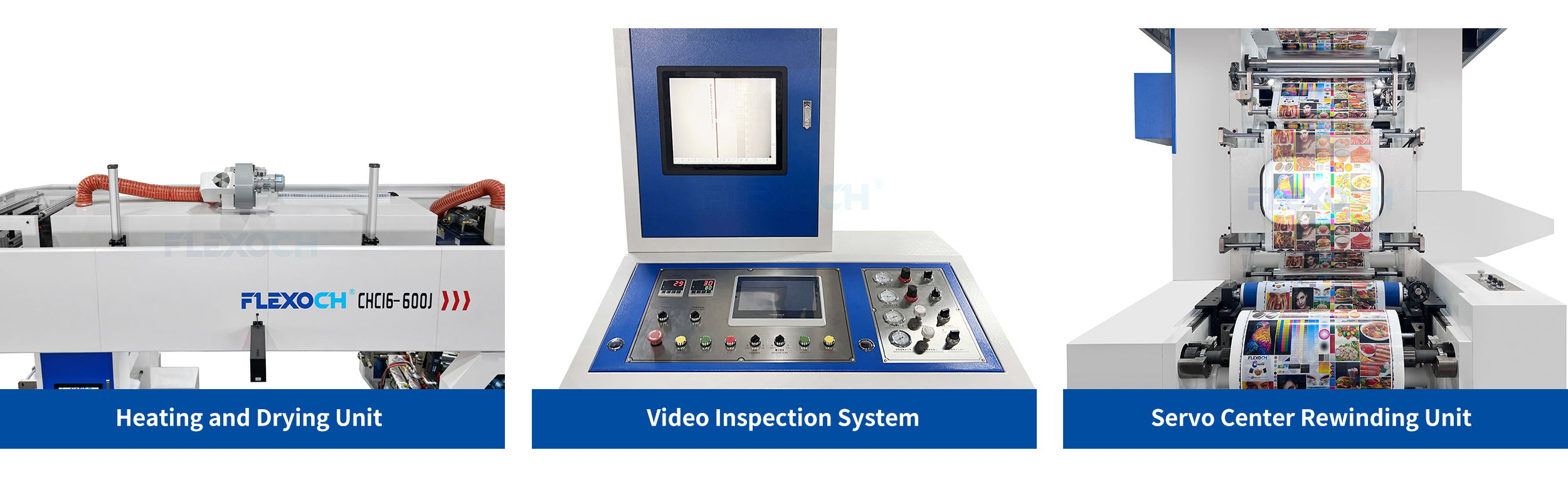

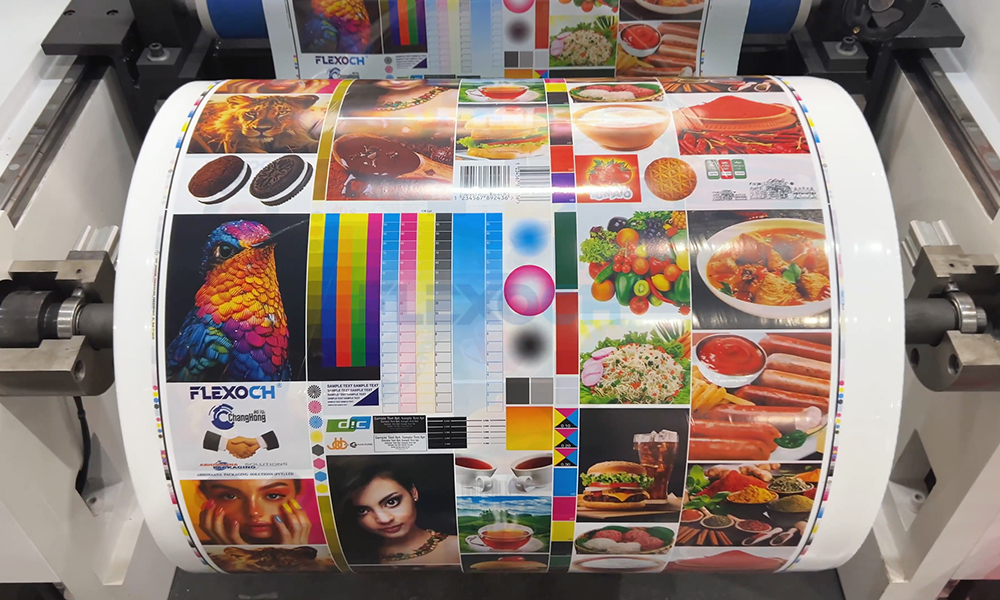

● Details Dispaly
3. Upgrade Drying and Curing Systems
Drying and curing are critical processes determining printing speed and print quality for flexography. Insufficient drying capacity prevents speed increase; inadequate curing causes issues such as blocking and poor rub resistance.
3.1 Drying System Optimization
● Precise air volume & temperature control: Each color station drying unit shall feature independent temperature and air volume adjustment, auto-tuned according to ink type and printing speed to avoid over-drying or insufficient drying.
● Waste heat recovery: Install heat exchangers to recover heat from exhaust gas for pre-heating fresh air, lowering energy consumption while improving drying efficiency.
● Compatibility with solvent-free / water-based inks: Water-based inks demand higher air volume and temperature for drying. Ensure drying system design parameters match ink specifications in use.
3.2 LED UV Curing Upgrade
For CI Flexo Printing Press running UV inks, upgrading traditional mercury-lamp UV curing to LED UV curing delivers remarkable efficiency gains:
● Instant on-off: LED UV lamps require no preheating and operate immediately upon power-on, cutting standby time and energy consumption.
● Low thermal radiation: LED UV generates far less heat than mercury lamps, mitigating substrate thermal deformation and supporting high-precision printing for thin films.
● Long service life: LED UV lamps typically last 5-10 times longer than mercury lamps, reducing lamp-replacement downtime and maintenance costs.
● Low energy consumption: Overall energy consumption can be reduced by more than 50%.
3.3 Post-curing Unit
Add an independent final curing unit after printing to guarantee thorough ink curing and lower blocking risks after rewinding. This allows higher rewinding tension and faster operating speeds.
4. Equipment Maintenance to Reduce Unexpected Breakdowns
Equipment reliability is the cornerstone of production efficiency. Properly maintained CI Flexographic Printing Machine can cut unplanned downtime by over 70%.
4.1 Preventive Maintenance System
Establish preventive maintenance schedules based on runtime and equipment status, instead of breakdown driven corrective maintenance:
● Daily maintenance: Cleaning, lubrication and inspection of key components.
● Weekly maintenance: Inspection of transmission, pneumatic and electrical connection systems.
● Monthly maintenance: Registration system calibration, drying system inspection and wearing part replacement.
● Annual maintenance: Overhaul, full range precision calibration and control-system upgrade.
4.2 Critical Spare-parts Management
Build an inventory list of critical spare parts to ensure wearing components (doctor blades, sealing rings, bearings, belts, sensors) are readily available, avoiding long-time downtime caused by spare part lead time. For imported machines, plan procurement cycles in advance.
4.3 Condition Monitoring & Predictive Maintenance
For the CI Flexo printing machine, fit vibration and temperature sensors on its key motors, bearings and cylinders. Predict potential faults via data analysis and schedule maintenance before failures occur, converting unplanned downtime into planned maintenance.
4.4 Standardized Cleaning Procedures
Cleaning quality of flexo printing machine directly impacts running stability for subsequent jobs. Form standardized cleaning workflows, especially for ink circuits, anilox rollers and impression cylinders, to minimize printing failures caused by dried ink residue.
5. Standardized Operation and Personnel Training
Hardware upgrades alone cannot deliver full performance; human factors are equally vital.
5.1 Standard Operating Procedures (SOP)
Formulate detailed SOPs for key operations including job change-over, setup, cleaning and maintenance. This ensures consistent operation quality among different operators and reduces downtime and rejects stemming from human error.
5.2 Continuous Technical Training
Provide regular technical training for operators to familiarize them with equipment performance, fault diagnosis skills and the influence of process parameters on print quality. The efficiency gap between experienced press operators and novice staff can exceed 30%.
5.3 Incentive Mechanism
Incorporate KPIs such as OEE, reject rate and job-change time into performance appraisal, motivating operators to optimize production workflows and participate in efficiency-improvement initiatives.
6. Conclusion
Improving the production efficiency of CI Flexo printing machine is a systematic project that cannot be achieved through isolated measures. Start with cutting downtime and setup waste; enhance operational stability by optimizing tension and registration systems; unlock speed potential via upgraded drying and curing systems; guarantee equipment reliability with preventive maintenance. Combined with automation & intelligent upgrades and standardized management, comprehensive improvement of Overall Equipment Effectiveness can be realized.
For printing converters, the ultimate goal of efficiency improvement is to respond to market demands with lower costs and faster lead times while maintaining print quality. Every minute saved from downtime, every square-meter reduction in waste and every meter-per-minute speed gain directly translates into corporate competitiveness and profit. Against the backdrop of evolving market conditions and rising raw-material costs, pursuing benefits through efficiency improvement has become an inevitable path for sustainable development of flexographic printing enterprises.
If you have the need to purchase a CI Flexo Printing Press, please feel free to contact us.
