News - What is Gearless flexo printing press? What are its features?

1. What Is a Gearless Flexo Printing Press?
A gearless flexo printing press is a flexo printing machine that uses servo motors to drive printing components instead of relying on traditional mechanical gear transmission. This technology provides greater control over printing unit synchronization, repeat length adjustment, and production efficiency.

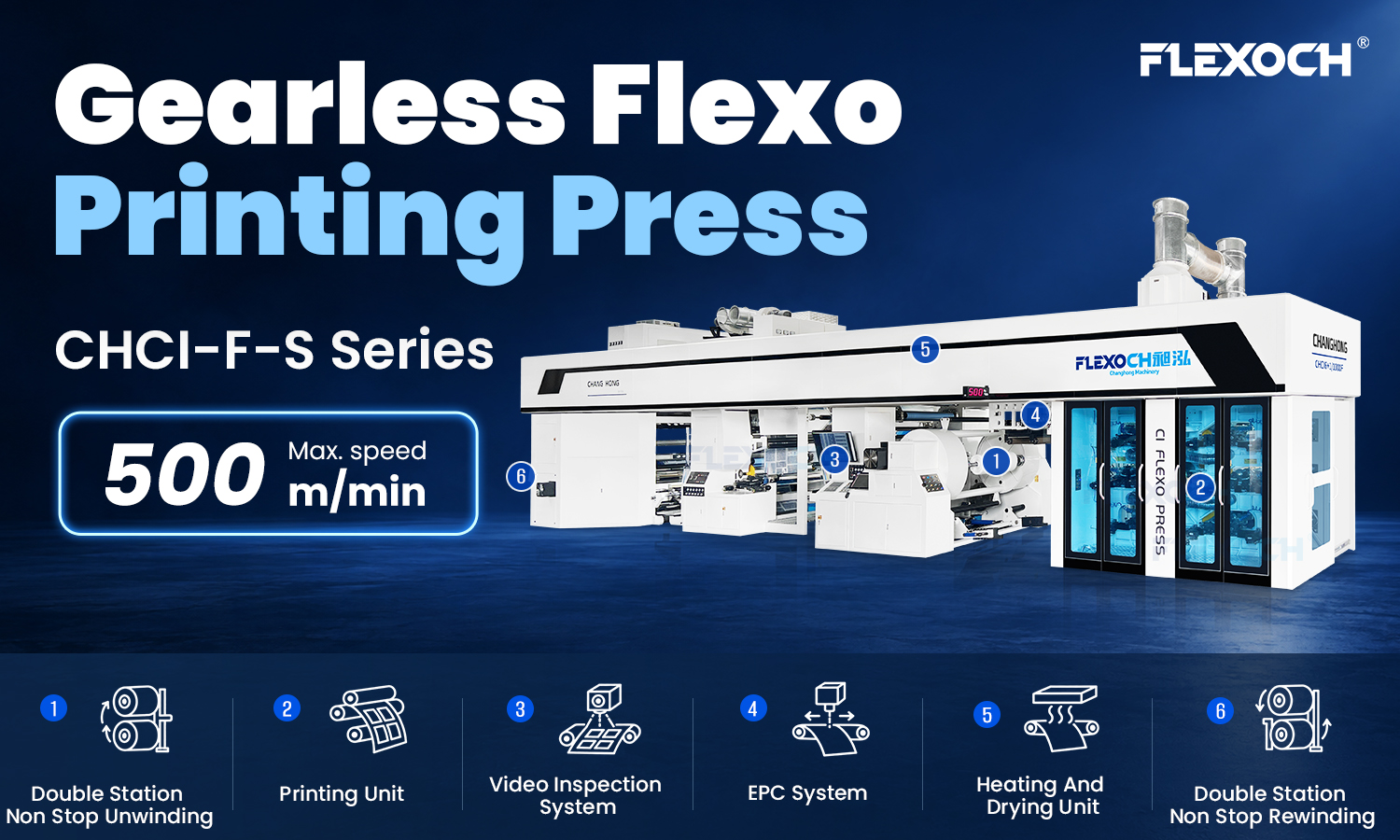

Changhong's full-servo gearless CI flexo printing press is designed for high-speed flexible packaging production, with a maximum printing speed of 500 m/min and a registration accuracy of ±0.05 mm. Its independent servo drive system supports precise synchronization of printing units, helping maintain consistent print quality during high-speed operation.

Changhong Flexographic Printing Machine-3

1.1 Gearless Drive Technology and Printing Precision
The Gearless flexo printing press which is relative to the traditional one that relies on gears to drive the plate cylinder and the anilox roller to rotate, that is, it cancels the transmission gear of the plate cylinder and the anilox, and the flexo printing unit is directly driven by the servo motor. Middle plate cylinder and anilox rotation. It reduces the transmission link, gets rid of the limitation of the flexo printing machine's product printing repeating circumference by the transmission gear pitch, improves the overprinting accuracy, prevents the gear-like "ink bar" phenomenon, and greatly improves the dot reduction rate of the printing plate. At the same time, errors due to long-term mechanical wear are avoided.

2. How Does Gearless Flexo Printing Technology Work?
2.1 Independent Servo Drive System
A conventional flexo press runs on gears. A gearless ci flexo printing press instead drives the plate cylinders and anilox rollers with independent servo motors. Electronic synchronization replaces the gear train, so each printing unit holds its own precise speed and phase.
2.2 Improved Registration Accuracy and Print Quality
Take the gears out and you remove the transmission errors they bring: gear pitch, backlash, and wear. Registration stays tighter, gear-related ink bars largely disappear, and dot reproduction stays more consistent.
2.3 Flexible Repeat Length Adjustment
Repeat length on a geared press is limited by the gears you have on hand and the pitch combinations they allow. The presses adjust repeat length electronically, anywhere within the machine's design range, so there is far less need to swap gears.

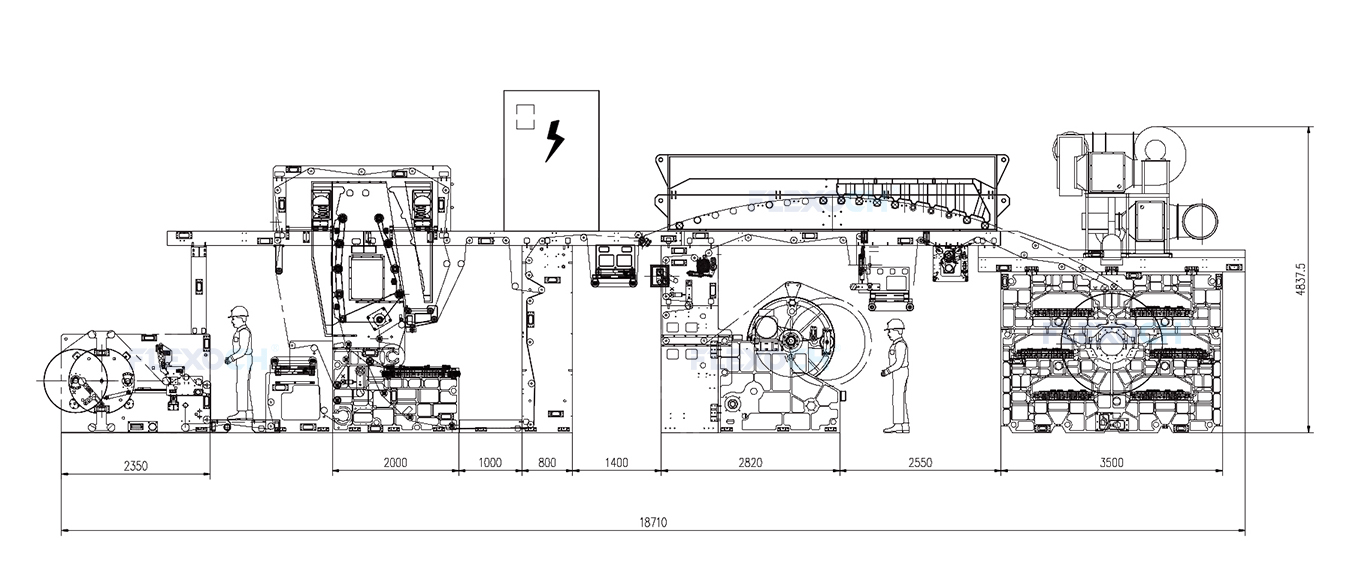

● Material Feeding Diagram

3. Key Features of a Gearless Flexo Printing Press
3.1Operational Flexibility & Efficiency: Beyond precision, gearless technology revolutionizes press operation. The independent servo control of each printing unit enables instantaneous job changeovers and unparalleled repeat length flexibility. This allows for seamless switching between vastly different job sizes without mechanical adjustments or gear changes Features like automatic register control and preset job recipes are significantly enhanced, allowing the press to achieve target colors and register much faster after a changeover, boosting overall productivity and responsiveness to customer demands.
3.2Future-Proofing & Sustainability: Gearless flexo printing press represent a significant step forward. The elimination of gears and associated lubrication contributes directly to cleaner, quieter operation, significantly reduced maintenance needs, and a lower environmental impact. Furthermore, the dramatic reduction in setup waste and improved print consistency translate into substantial material savings over time, enhancing the press's sustainability profile and operational cost-effectiveness.

4. Gearless vs. Traditional Gear-Driven Flexo Printing Press

Feature	Gearless Flexo Printing Press	Traditional Gear-Driven Flexo Press
Drive system	Servo motor drive with electronic synchronization	Mechanical gear transmission
Registration accuracy	Reduced gear-related transmission errors	Affected by gear accuracy, backlash, and wear
Repeat length adjustment	Electronic adjustment within the machine's design range	Depends on available gear combinations
Gear-related ink bars	Reduced risk of gear-related ink bars	More susceptible to gear-related printing defects
Job changeover	No mechanical gear changes required for repeat length adjustment	May require mechanical gear changes
Maintenance	Reduced gear-related maintenance	Requires gear inspection and lubrication
Production efficiency	Supports faster setup and more flexible job changes	Depends on mechanical setup and adjustment requirements

5. Applications of Gearless Flexo Printing Machines
Gearless flexo printing machine fit flexible packaging jobs where print has to stay consistent, registration has to hold, and job changes need to be quick.
Common applications include:
● Food packaging films
● Daily chemical product packaging
● Personal care and diaper packaging
● Flexible packaging for consumer goods
● Printed plastic films and compatible composite substrates
Which configuration you pick comes down to the substrate, printing width, color count, running speed, ink system, and drying requirements.

● Sample

6. Why Choose a Gearless CI Flexo Printing Press?
A gearless CI flexo printing press combines independent servo drive technology with a central impression cylinder structure. The central impression cylinder supports the substrate during printing, helping maintain dimensional stability and registration accuracy, particularly when printing thin plastic films.
Key advantages include:
●Independent servo drive for precise control of printing units.
●Electronic repeat length adjustment within the machine's design range.
●High registration accuracy for multi-color flexible packaging.
●Reduced risk of gear-related ink bars and transmission errors.
●Compatibility with automatic registration and preset job functions when equipped.
●Stable high-speed production with a suitable tension control and drying system.
For manufacturers producing flexible packaging with demanding quality requirements, a gearless CI flexo printing press can help improve production efficiency, reduce setup waste, and maintain consistent print quality.

8 Color Gearless Ci Flexo Printing Press For Films

6+1 Color Gearless Ci Flexo Printing Press For Paper

6 Color Gearless Ci Flexo Printing Press For Plastic

4 Color Gearless Ci Flexo Printing Press For FFS

7. Conclusion: The Future of High-Precision Flexographic Printing
By eliminating mechanical gears and embracing direct servo drive technology, the gearless flexo printing machine fundamentally transforms production capabilities. It delivers unmatched print precision through superior dot reproduction and overprint accuracy, operational excellence via rapid job changeovers and repeat-length flexibility, and sustainable efficiency through reduced waste, lower maintenance, and cleaner processes.
This innovation not only solves persistent quality challenges like ink bars and gear wear but redefines productivity standards, positioning gearless technology as the future of high-performance flexo printing.

Q1. How many colors can a gearless flexo printing press support?
A gearless flexo printing press can be built with anywhere from 4 to 10 printing units. Most buyers go with 4, 6, 8, or 10 colors, matching the unit count to the artwork and the number of colors the packaging actually needs.
Q2. Can a gearless printing machine support automatic registration control?
Yes. Automatic registration control is available. The system watches color registration during the run and corrects it on the fly, which cuts manual intervention and keeps quality consistent even at high speed.
Q3. Why use sleeve technology?
Sleeve technology mounts the printing plates on lightweight sleeves, which cuts the time spent on plate changes and cylinder prep. Combined with a gearless drive, it keeps job setup short and trims changeover time on flexible packaging lines.
Q4. What maintenance is required for a flexo printing machine?
Routine care covers the servo motors and electrical parts, regular cleaning of the anilox rollers and print units, checks on the tension control system, and upkeep on ink delivery and drying. Gearless drive removes most gear-related maintenance, but a steady preventive schedule is still what keeps the press reliable.
Q5. What should manufacturers consider when upgrading to a flexo printing press?
Before upgrading, weigh your current capacity, how often jobs change over, the print quality you need, and the orders you expect ahead. Add operator training, how well the press fits your existing workflow, and the setup waste it takes out of each run. Together these usually decide whether the switch is worth it.
