As the global flexible packaging and label printing industry keeps upgrading, flexographic printing is rapidly moving toward higher speed, tighter register and smarter operation. The Central Impression (CI) flexo press stands out thanks to exceptional register stability and high-speed output, making it the flagship machine for premium flexible packaging production worldwide.
When purchasing new equipment, most printers face a critical question. How does a CI central impression flexo press differ from conventional stack flexo printing machines and inline flexo printing machines? What production jobs fit each model best? Which option delivers the best long-term return on investment?
This article compares the three mainstream flexo printing press models from mechanical structure, printing performance, substrate compatibility, production efficiency and real-world applications. It will help packaging printers make well-informed purchasing decisions.
1.What Is a Central Impression Flexo Printing Press?
A Central Impression Flexo Printing Press is built around one large-diameter central impression cylinder. All printing stations are arranged radially around this main drum. Web materials stay firmly pressed against the cylinder surface throughout the full multi-color printing process.
This unique layout brings one key benefit: the web maintains consistent tension with minimal vibration. Register deviation and web fluctuation are greatly controlled.
A central impression flexo press has three defining characteristics in daily operation. First, the web travel path is short and direct, cutting down cumulative register errors caused by repeated turning. Second, the central drum creates uniform printing pressure for every color station, ensuring identical printing conditions across all units. Third, the mechanical layout is engineered for uninterrupted high-speed mass production to raise overall throughput.
Simply put, the CI design achieves superior printing precision and running speed purely through structural stability.

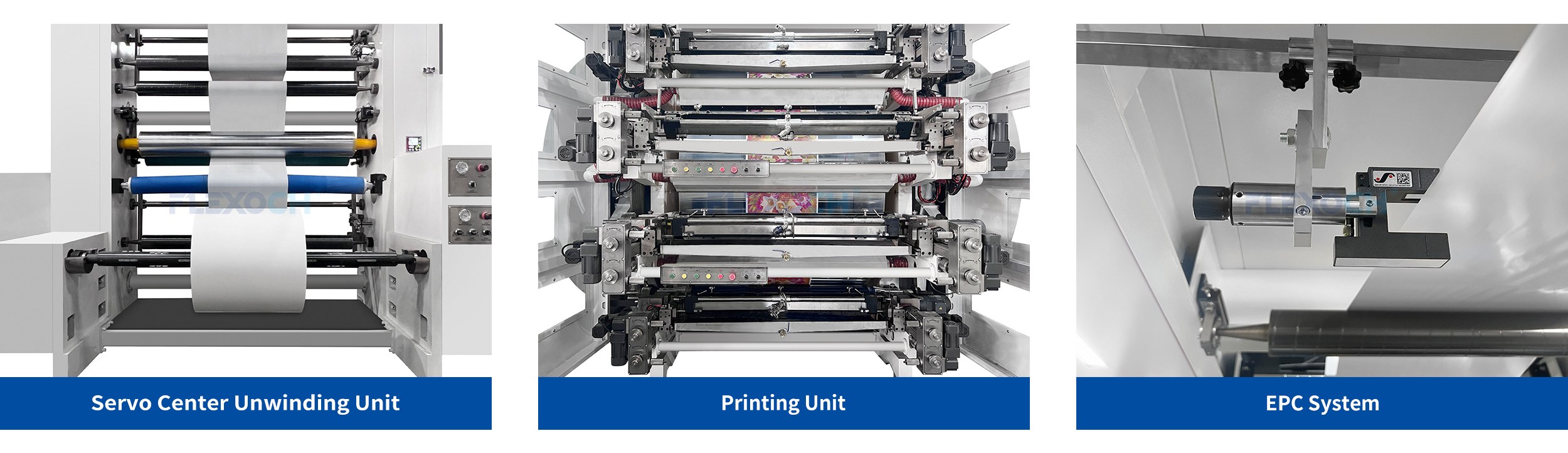

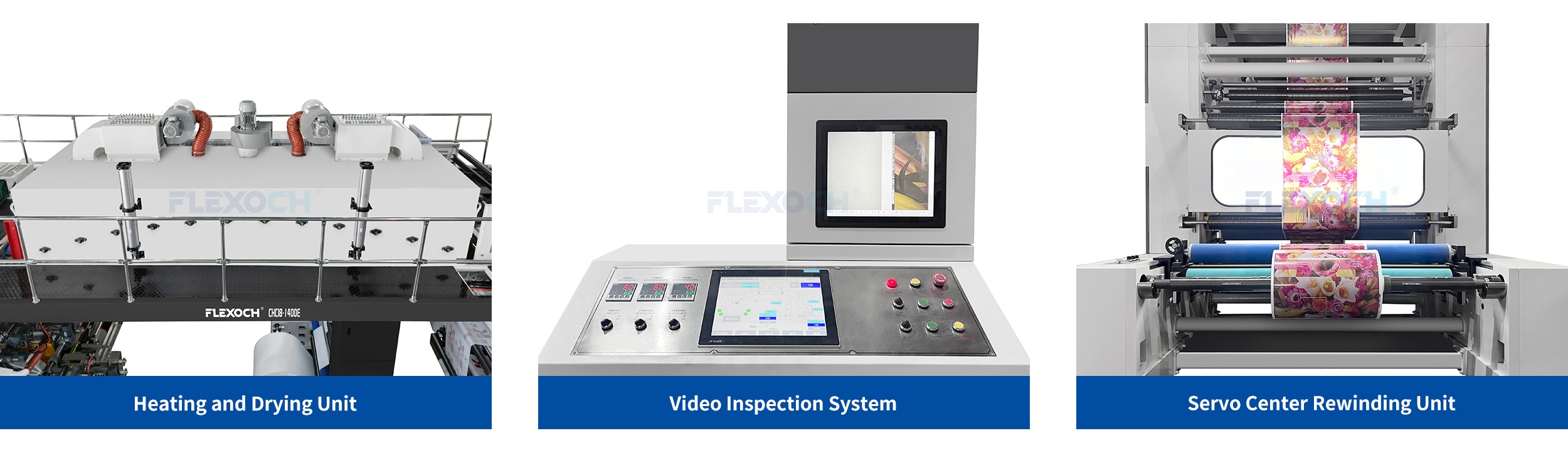

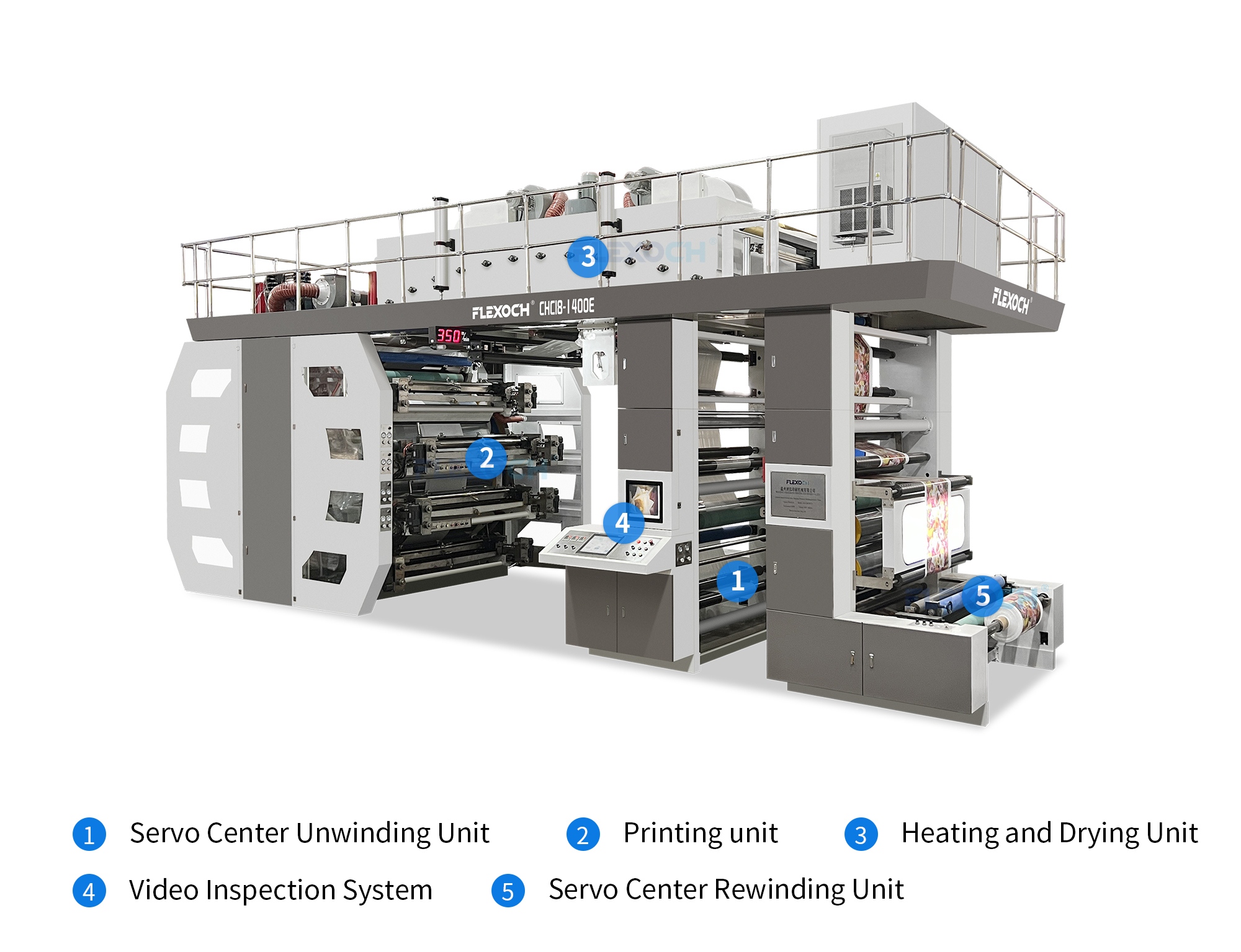

● Detail Image
2. CI Flexo Printing Machine vs Stack Flexo Printing Machine

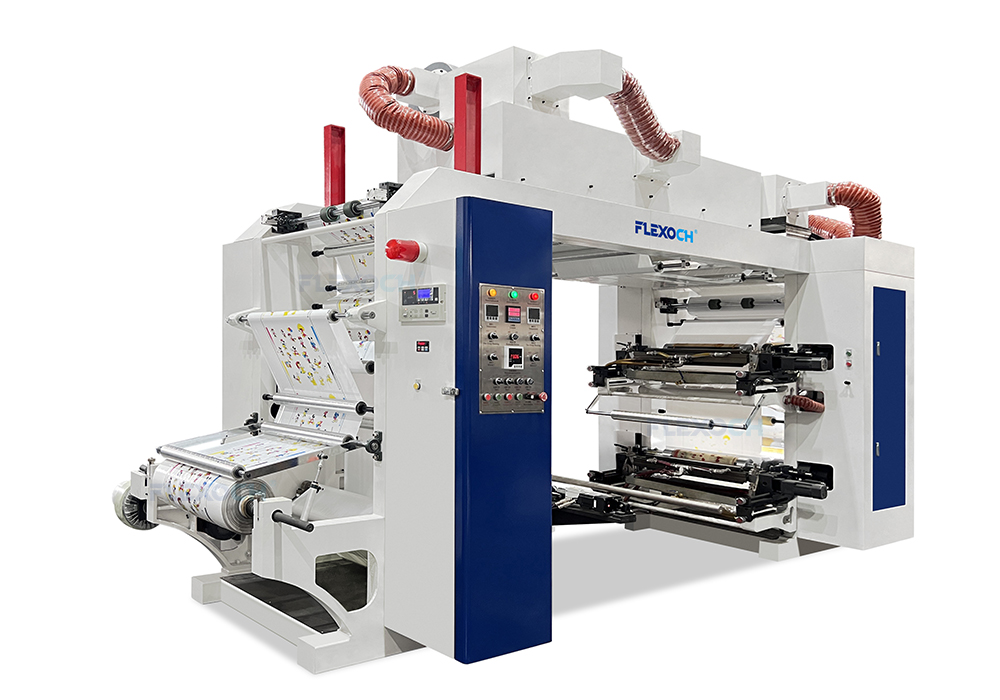

The stack flexo printing machine is a traditional flexo machine with vertically stacked printing units. The web has to pass through dozens of turning rollers and independent printing stations one after another.
The CI flexo printing machine adopts a radial web layout that keeps material attached tightly to the central drum. The two designs differ fundamentally in mechanical logic.
The gap becomes obvious in actual production. Stack presses rely heavily on tension control systems. At high running speeds, web shaking becomes inevitable and register errors keep rising. The CI press physically stabilizes the web path and eliminates most error sources from the start.
In terms of substrate suitability, stack presses work well with paper, woven sacks and general low-grade packaging products. CI presses handle thin plastic films and multi-layer laminates such as PE, PP, and PET far better.
From a market perspective, stack presses dominate the low-to-mid-tier basic packaging sector, while CI machines have become the mainstream choice for high-end flexible packaging.
3. CI Flexo Printing Press vs Inline Flexo Printing Machine
An inline flexo printing machine arranges printing units in a straight horizontal line. The web travels linearly through every processing station.
Its biggest strength lies in flexible process expansion. Printers can easily add die-cutting, lamination, cold foil stamping and spot varnishing units inline. That explains its wide adoption in label manufacturing and multi-process converting.
Even so, inline structures struggle to maintain stability at top running speeds compared with CI flexo printing press.
CI flexo presses are built for continuous high-volume printing, whereas inline presses prioritize post-print process integration. The two models target completely different job types. Inline machines excel at short runs, frequent job changes and complex multi-process orders. CI flexo presses are built for long-run mass production with consistent print quality.
A standard central drum flexo printing machine runs stably between 200 m/min and 350 m/min, and Gearless flexo printing press can reach 500 m/min. Inline presses rarely hit such speeds due to complicated inline processes. For large-batch flexible packaging production, CI presses hold a clear upper hand.

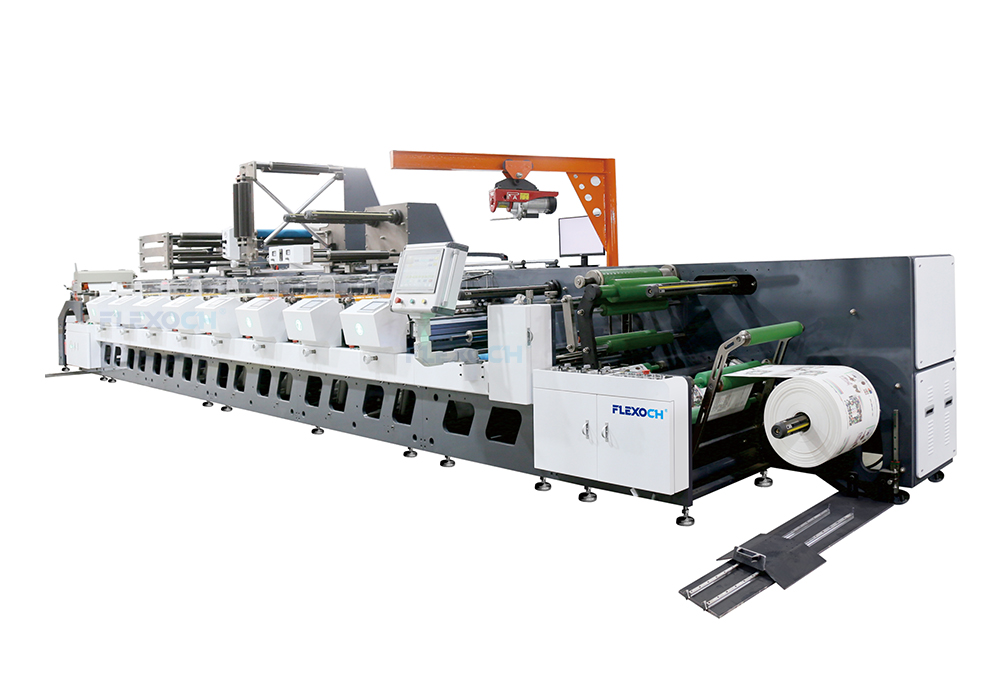

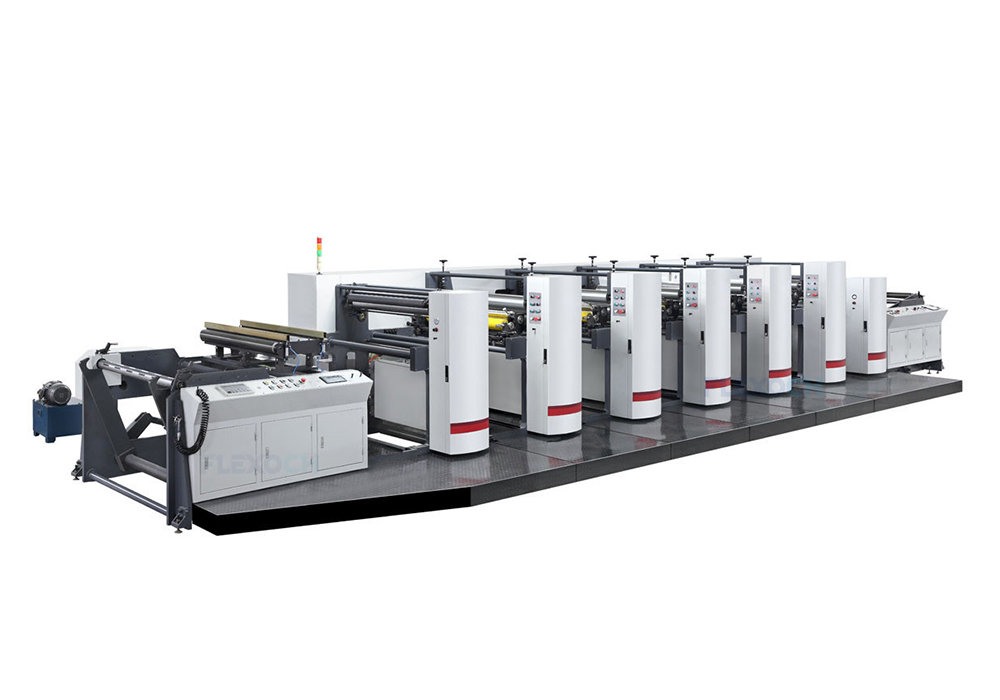

CH-A Inline Flexo Printing Machine 180m/min
CH-A Inline Flexographic Printing Machine 180m/min
4. Side-by-Side Comparison of Three Flexo Printing Machine Models
|
Comparison Item |
CI Central Impression Flexo Press |
Stack Flexo Printing Machine |
Inline Flexo Printing Machine |
| Mechanical Structure | Radial layout with central impression drum | Vertically stacked printing units | Straight horizontal inline structure |
| Register Accuracy | ±0.1 mm | ±0.15 mm | ±0.15 mm |
| Normal Running Speed | 250–350 m/min | 100–200 m/min | 180 m/min |
| Web Stability | Excellent | Moderate | Moderate |
| Suitable Substrates | Plastic films, multi-layer laminates | Paper, PP woven sacks | Paper, paper boxes, adhesive labels |
| Main Application | Premium flexible packaging | General commodity packaging | Label converting & inline finishing |
The data clearly shows that CI flexo printing presses lead in running speed, register precision and web stability. They perfectly match the modern flexible packaging industry’s demand for both high quality and high productivity.
5.Key Competitive Advantages of Central Impression Flexo Printing Press
The fast-growing popularity of central impression flexo press in the global packaging market comes from systematic structural advantages, not just minor performance upgrades.
First is stable multi-color registration. The web stays wrapped around the central drum throughout printing. Tension fluctuation and mechanical vibration are minimized, keeping multi-color register tightly controlled.
Second, high speed does not come at the cost of consistency. Traditional presses see quality drop sharply once speed increases. CI presses maintain uniform printing results even at maximum running speed, which matters greatly for long-run bulk orders.
Third, it covers a wide range of flexible packaging substrates, including:
● PE, PP and PET plastic films
● Aluminum foil composite materials
● Food-grade packaging films
● Daily chemical packaging laminates
Moreover, CI presses cut waste and improve overall equipment efficiency, effectively lowering the unit production cost.
● Video Introduction
6. Market Positioning of Three Types of Flexo Printing Presses
Each flexo press design serves a distinct market segment.
● Central impression flexo press : High-speed industrial production for premium packaging

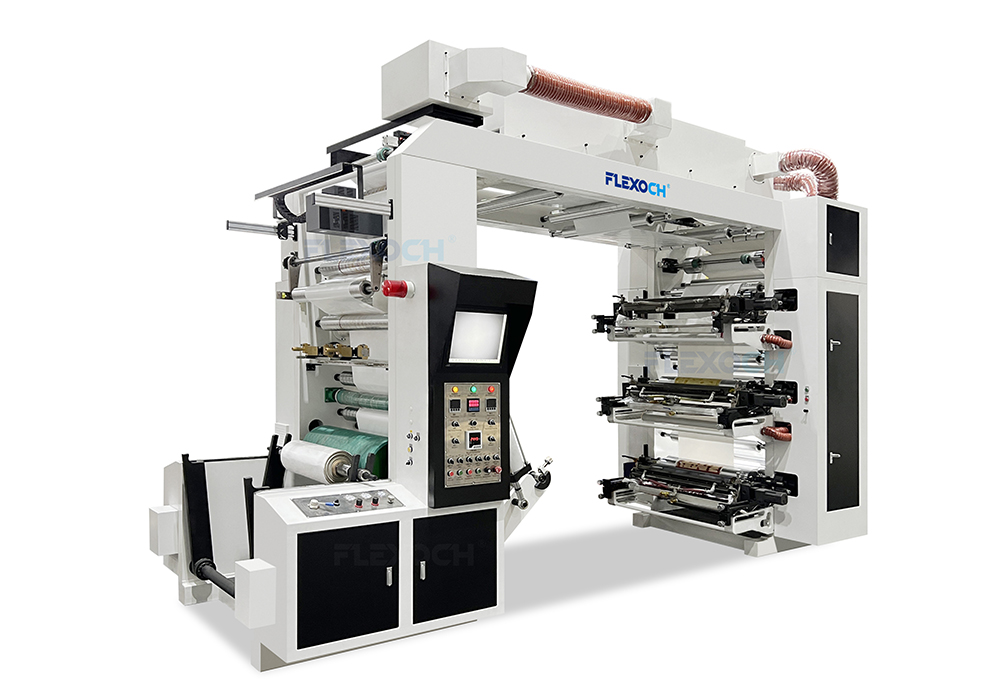

● Stack type flexo printing machine: Cost-effective production for basic commodity packaging
● Inline flexo printing machine: Versatile converting with integrated post-print processes
Large food packaging manufacturers mostly invest in CI machines, while label converters tend to choose inline equipment. As global brands keep upgrading their packaging quality requirements, market demand for CI central impression presses keeps climbing year by year.
7. Primary Industries Using CI Flexo Printing Machines
CI flexo printing Machines are widely adopted across high-standard packaging sectors.
In food packaging, they produce snack pouches, frozen food bags and condiment packaging with crisp graphics and food-safe printing results.
For beverage packaging, CI presses print soft packaging sachets, paper cup stock and composite laminates to guarantee consistent brand images across all batches.
In personal care packaging, including shampoo sachets and cleaning product bags, precise color reproduction on CI presses helps brands stand out on retail shelves.
They also win wide adoption in medical and hygiene packaging thanks to steady web control and compliance with clean production standards.

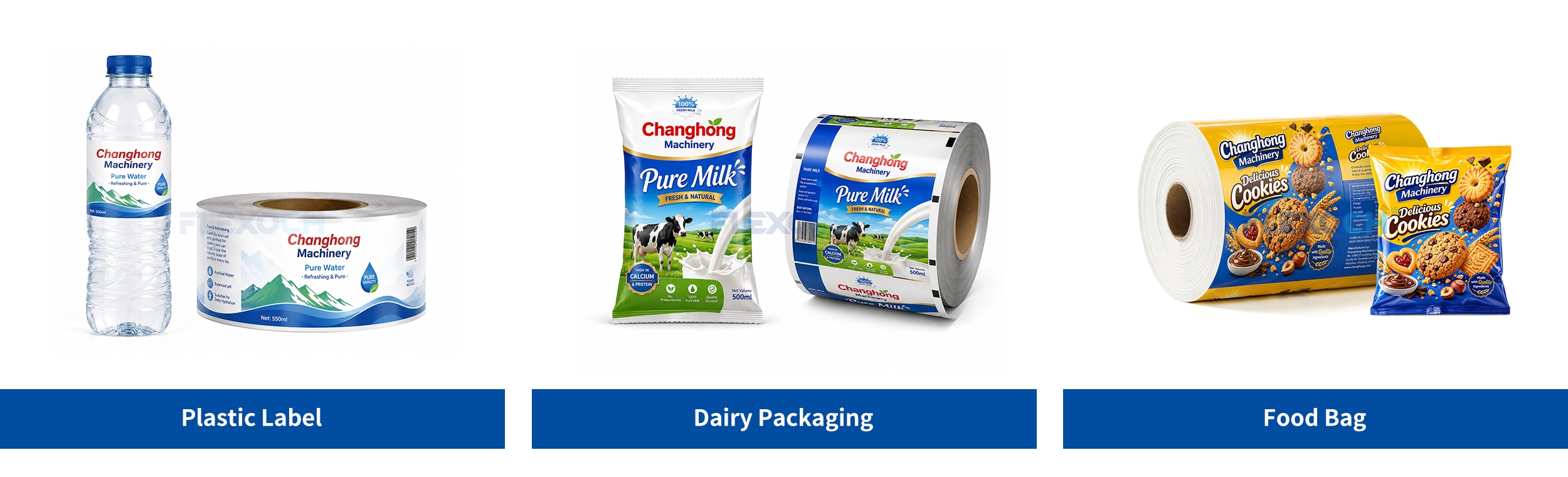

● Printing Samples
8. Industry Trends and Long-Term Value of CI Flexo Printing Machines
The global packaging industry is undergoing major shifts, which further boost the value of CI Flexo Printing Machines.
● Rising demand for frequent job changes and multiple SKUs
● Fiercer competition among high-end consumer brands
● Wider adoption of eco-friendly flexible packaging materials
● Factory upgrades toward full automation and intelligent production lines
With stable web travel, fast job switching, tight register and high throughput, CI central impression flexo presses represent the future direction of flexographic converting. CI machines will capture a larger share of the global flexible packaging market in the next five to ten years.
9. Final Conclusion
Overall, the Central Impression Flexo Press outperforms traditional stack and inline flexo presses in mechanical structure, web stability, printing precision and production capacity.
Each press model fits its own application scenarios. Nevertheless, the CI central impression press remains the most competitive solution for high-end flexible packaging and uninterrupted mass production.
If you plan to raise production capacity, upgrade print quality and cut long-term manufacturing costs, investing in a CI flexo printing press will bring solid strategic returns for your converting business.
