The printing industry is working with an increasingly wide range of substrates, including plastic films, paper, nonwoven materials, aluminum foil, PP woven materials, and laminated structures. At the same time, printers are looking for higher productivity, stable print quality, shorter setup times, and better material utilization.
These requirements are driving the development of modern CI flexo printing machine. flexo printing machine technology combines stable web handling with advanced printing and control systems, making it suitable for high-quality roll-to-roll printing across different substrates.
Why CI Flexo Printing Technology Matters
A CI flexo printing machine uses a large central impression cylinder to support the substrate as it passes through multiple printing units. This helps maintain stable web movement and consistent printing conditions.
For thin films, paper, nonwoven materials, and other flexible substrates, stable tension and accurate registration are essential. Even small changes in web tension or substrate movement can affect color registration and print quality.
CI flexo printing machines are therefore widely used for plastic film, paper, nonwoven, PP woven, aluminum foil, and other roll-to-roll printing applications.
Gearless and Servo Technology
Modern high-performance flexo printing machine are increasingly using electronic servo drive technology.

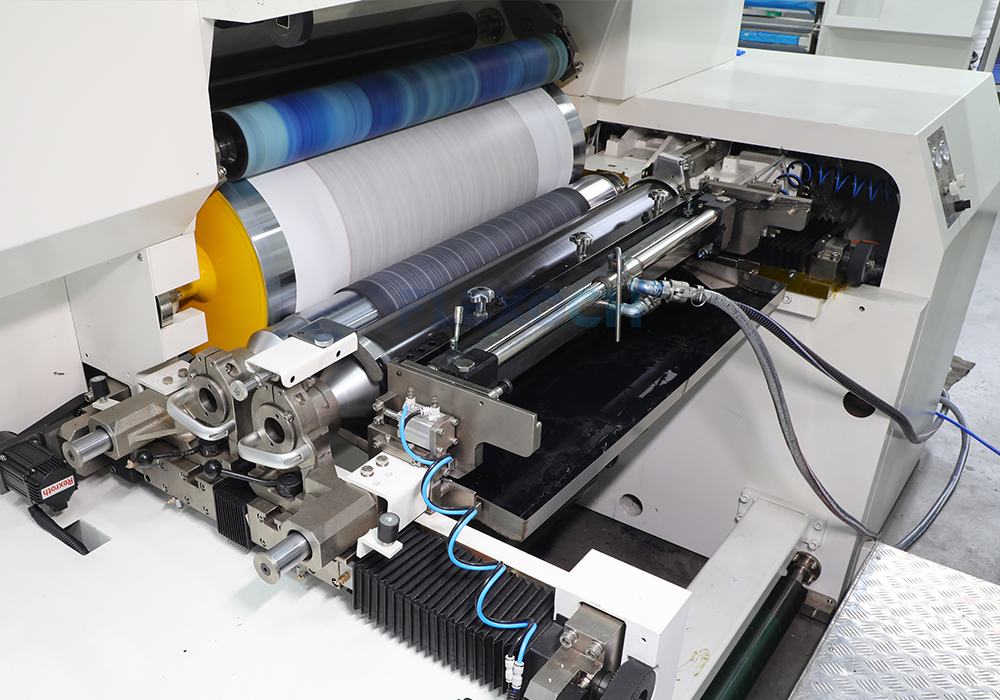

In a full servo gearless flexo printing machine, each printing unit is independently driven by a servo motor. This provides precise synchronization between printing units and supports accurate registration during high-speed production.
Key advantages include:
● Precise color registration
● Stable high-speed operation
● Independent control of printing units
● Faster setup and adjustment
● Greater flexibility for different printing jobs
This technology is particularly useful for applications requiring multiple colors, fine graphics, and consistent print quality.
Web Tension and Printing Stability
Printing quality depends not only on the printing units but also on how the substrate moves through the machine.
Tension variations can cause registration errors, wrinkles, material deformation, and unstable printing. Modern CI flexo printing machine therefore use advanced tension-control systems to maintain stable web movement from unwinding through printing and drying to rewinding.
Closed-loop tension control, suitable web paths, accurate web guidance, and optimized unwinding and rewinding systems all contribute to consistent production.
Automation Improves Productivity
Automation is another important development in modern flexo printing.

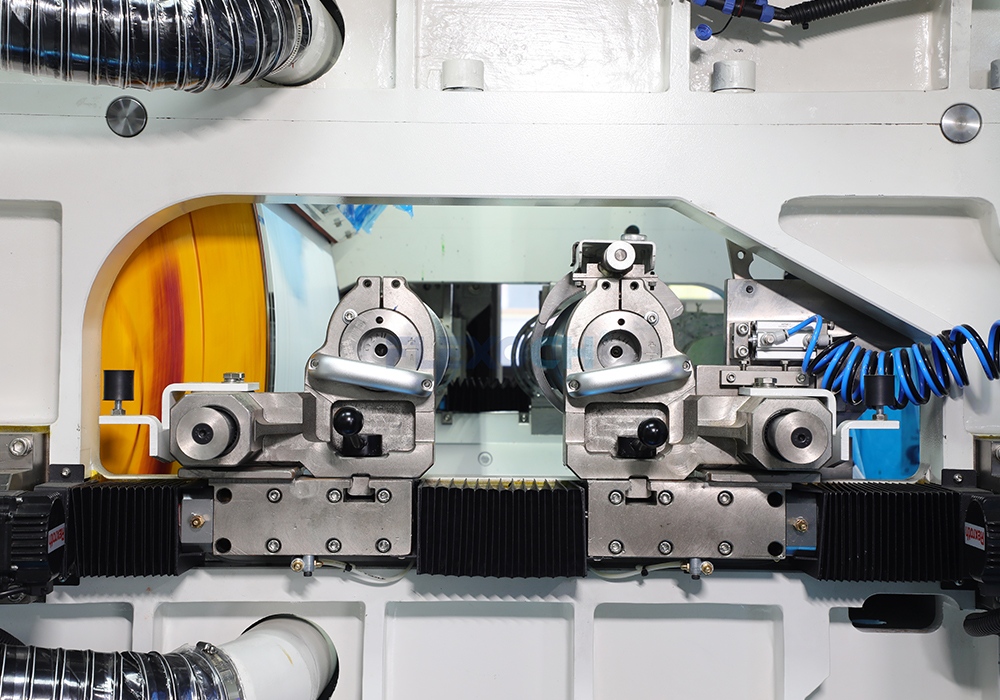

Automatic register control, pressure adjustment, servo-driven printing units, and other intelligent functions can reduce manual adjustments and shorten setup times.
For converters handling multiple substrates, colors, and print jobs, faster changeovers can reduce material waste and improve machine utilization.
The goal is not simply to increase printing speed, but to make the entire production process more stable, efficient, and repeatable.
Printing Different Materials and Laminated Structures
Modern CI type flexo printing machine need to handle increasingly diverse materials.
Common substrates include:
● PE, LDPE, HDPE, BOPP, PET and CPP films
● Paper and paper-based materials
● Nonwoven materials
● Aluminum foil
● PP woven materials
● Plastic film laminates
● Paper-plastic materials
● Aluminum-plastic structures
Different materials have different surface characteristics, tension requirements, and drying conditions. Machine configuration therefore needs to be matched to the specific substrate and application.
Printing Sample
Sustainability and Production Efficiency
Sustainability is also closely connected with printing efficiency.
Material waste during setup, unstable registration, and inefficient job changes can increase production losses. Better registration control, faster setup, stable web handling, and optimized drying can help reduce unnecessary waste and improve overall production efficiency.
As manufacturers increasingly adopt recyclable films, paper-based materials, and other more sustainable structures, flexo printing technology will need to provide reliable performance across a wider range of substrates.
Choosing the Right CI Flexo Printing Machine
There is no single machine configuration for every printing application. When selecting a CI flexo printing machine, converters should consider:
Substrate: The materials to be printed and their characteristics.
Printing width: The typical production width required for daily operations.
Number of colors: Based on the required print designs and applications.
Production speed: Considered together with substrate, print quality, drying, and job requirements.
Web handling: Unwinding, tension control, web guidance, and rewinding.
Automation: Automatic registration, pressure adjustment, and other functions that improve repeatability.
The right combination of printing technology, web handling, and automation can have a greater impact on production efficiency than maximum machine speed alone.

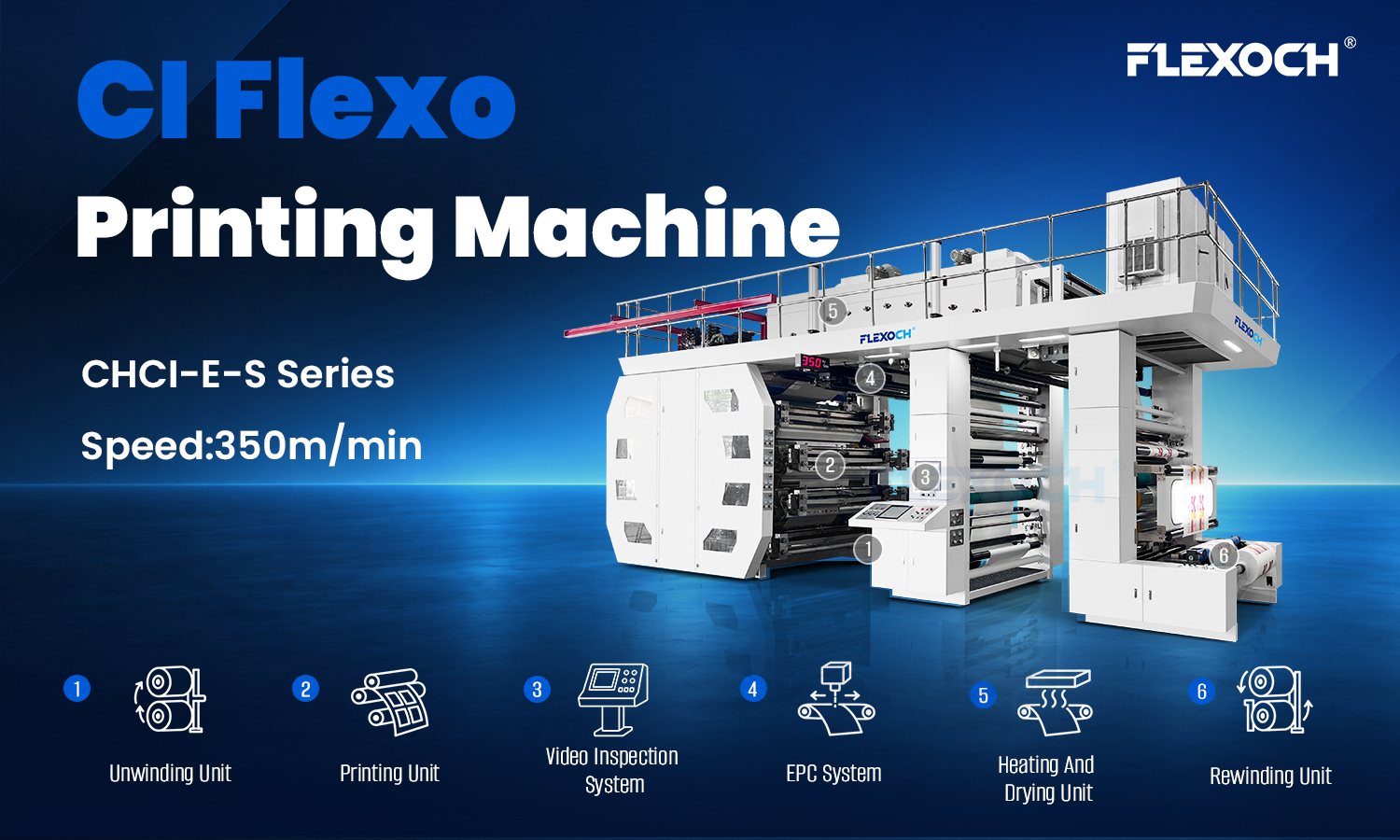

Video Introduction
The Future of CI Flexo Printing
Modern CI flexo printing is moving toward higher automation, greater substrate flexibility, improved registration, and more efficient production.
The future is not simply about making CI type flexo printing machine faster. It is about integrating web handling, servo technology, printing control, drying, and automation into a more stable production system.
For converters, the value of modern CI flexo printing machine technology ultimately comes from consistent print quality, efficient production, reduced waste, and reliable long-term operation.
